Instructions for using the CRR10:
Creality 3D - Our Trustworthy 3D printer
FABLAB BRIGHTON 2018
Installing Curamaker software
The first step is to download the software for this machine. The one we've been using is called
Curamaker, by Ultimaker, and download it from this site:
https://ultimaker.com/en/products/ultimaker-cura-software
Machine settings

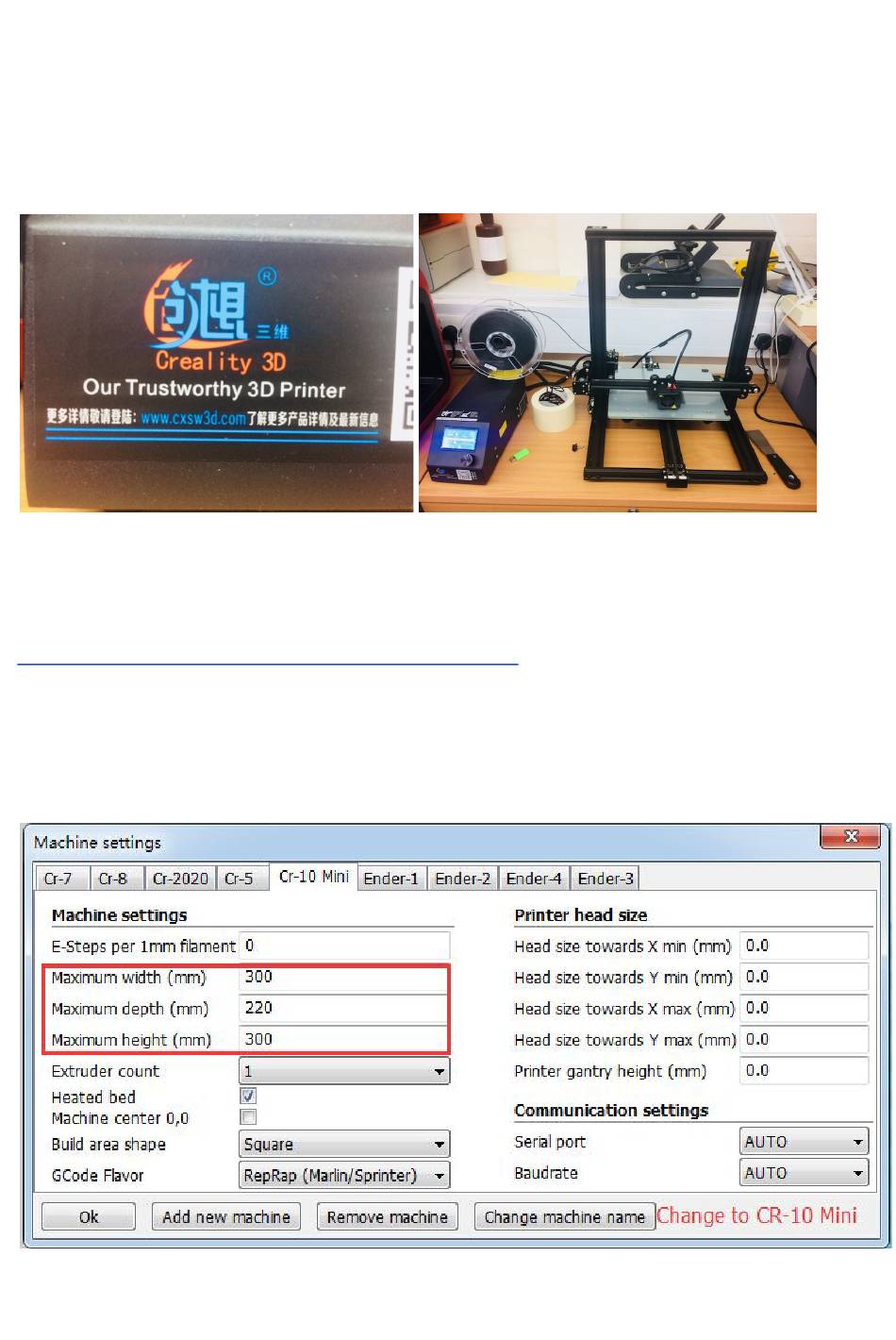

Here are the machine settings required for Cura, specifically for our machine which is like the
CR10...we've called it the CR10 mini because the bed size is slightly smaller. We need to change
the bed size as shown below:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Creality 3D CRR10
Summary of Contents for Creality 3D CRR10
- Page 1 Instructions for using the CRR10: Creality 3D - Our Trustworthy 3D printer FABLAB BRIGHTON 2018 Installing Curamaker software The first step is to download the software for this machine. The one we’ve been using is called Curamaker, by Ultimaker, and download it from this site: https://ultimaker.com/en/products/ultimaker-cura-software...
- Page 2 And then the main thing to change in the Custom print setup is the bed temperature...for this machine T HIS MUST BE 70 deg C . The other big consideration is whether you want support material or not. Here are the basic settings we used to start with:...
- Page 3 Loading your file into the software File > Open Files...then search for your CAD model (typically in .stl format) and then hit OPEN. You can then re-orient, scale, mirror, position etc your model on the bed. It will be then ready to prepare the model by slicing it up and this will be turned into G-Code by hitting the SLICE button (bottom right).
- Page 4 The fluoro green USB stick and 3D printer setup can be seen below. You can also see the LCD on the interface (left), which is where you press the dial, scroll down to PRINT FROM SD CARD, then find your G-Code file and then press the dial again to start the printing. Note that it will take a few minutes to warm up the printer bed before the actual printing will start.
- Page 5 Here’s a short video showing the process (double click on the image below to play the video).
- Page 6 Printing calibration test models We then printed a series of test models to check the capabilities, design rules and limitations of this machine. And what a machine! We were very impressed by this little beauty. So easy to use, so impressive with reliability and repeatability (so far), and all for only about £300.
- Page 9 Gap and wall measurement data We then measured the actual gap and wall dimensions with our trusty calipers. Here is the data.
- Page 10 Table 1: M easurements of wall thicknesses for various sizes, including mean +- standard deviation. Table 1: M easurements of gap thicknesses for various sizes, including mean +- standard deviation. Note: 1.84 (0.8 measurement), should read 0.84 instead.
- Page 11 Things to Avoid ● Do not print out pieces that could be easily be made by hand or with another machine e.g. laser cutter ● Very thin or small items will not print ● Long flat strips are hard to make as they tend to warp. ●...
- Page 12 ● If it needs to be more solid we can stipulate an infill normally 5 – 50% to make it heavier and stronger.
