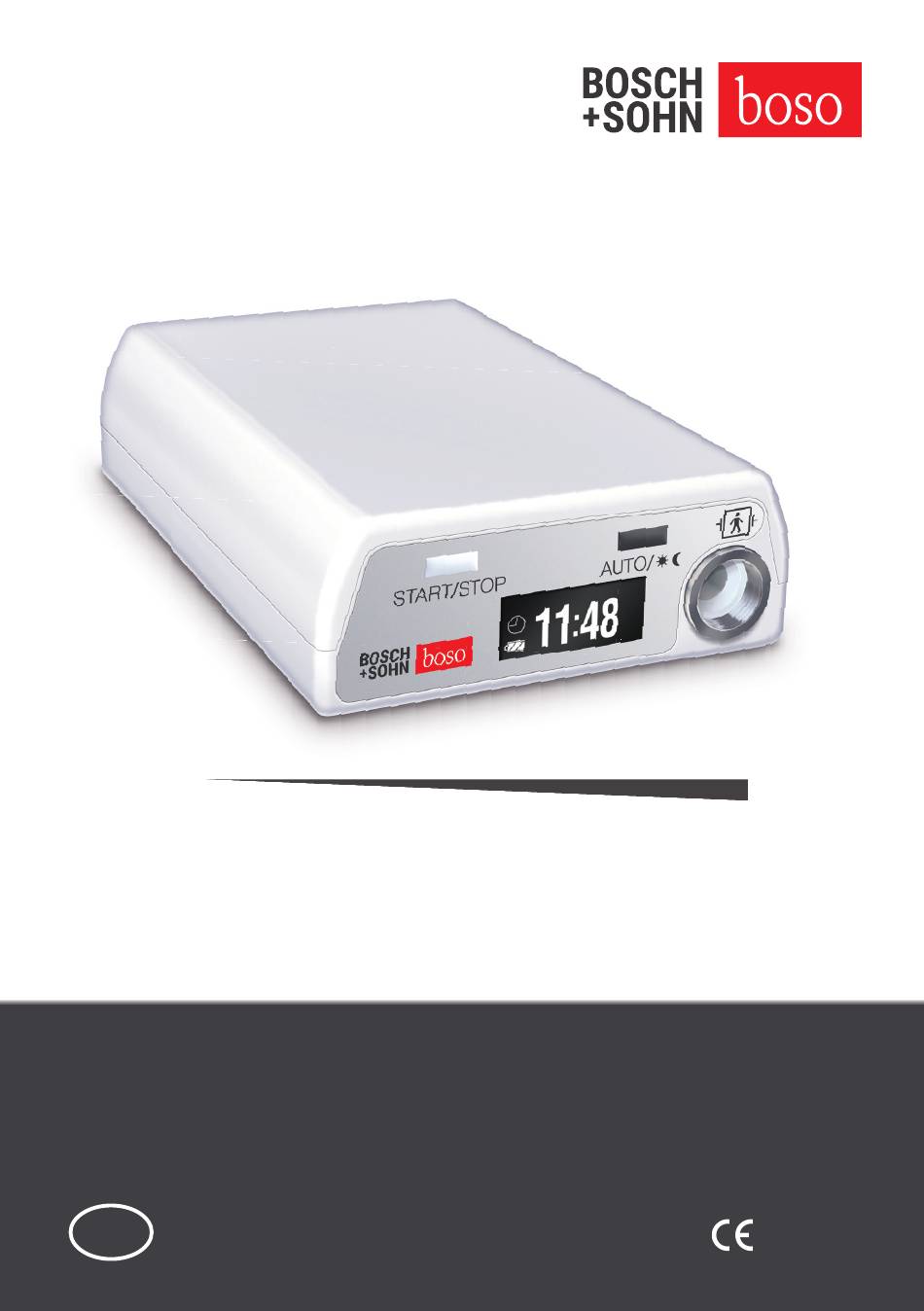

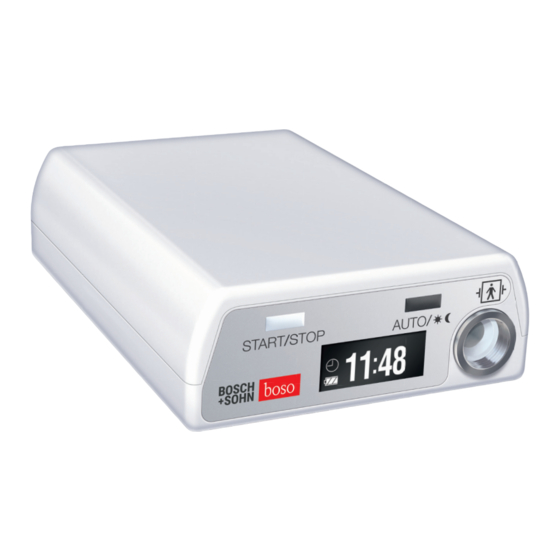

- Page 1 Instructions for use Instructions for use boso TM series 24-hour blood pressure monitor 0124...
-
Page 2: Table Of Contents
Contents Performing measurements with boso TM series devices ....17 Device overview ................4 Scope of supply with complete accessories ........4 Ending the measurement and transferring the measurement data ..19 Icon explanation................5 Replacing the batteries ..............20 Symbols on the measurement device ..........6 Charging the batteries ..............22... -
Page 3: Device Overview
Medical device • 24-hr blood pressure monitor • Instruction manual for: Store in a dry place - boso TM series • Transport case - XD profile manager • battery charger Fragile, handle with care • Important notes •... -
Page 4: Symbols On The Measurement Device
Systolischer Blutdruck in mmHg Puls pro Minute Diastolischer Blutdruck in mmHg Symbols on the measurement device Symbols on the measurement device Gerät ist konform mit der europäischen 0124 Medizinprodukterichtlinie. Puls pro Minute START/STOP button Gerät darf nicht über den Hausmüll entsorgt werden. Do not dispose of the appliance Gerät ist konform mit der europäischen START/STOP... -
Page 5: Introduction
Medical Devices Operator Ordinance), metrological checks must be These instructions for use for the devices of the boso TM series carried out at regular intervals (see section Test Instructions). familiarise you with the use of the ambulatory blood pressure monitor and the associated accessories. -
Page 6: Side-Effects Of The Blood Pressure Measurement Over 24 Hours
For women with a mastectomy, do not apply the cuff to the arm on the amputated side of the body. The blood pressure monitors of the boso TM series work according to the oscillometric measuring principle. The device is intended for... -
Page 7: Safety Information
Safety information Safety information There is a risk of strangulation with the shoulder strap and cuff Medical electrical equipment is subject to special precautions tube. regarding electromagnetic compatibility and must be installed and commissioned in accordance with the EMC instructions section. -
Page 8: Commissioning
Commissioning Protective cover Cuff Before you start working with boso TM series devices, you should charge the batteries supplied. To do this, proceed as described in section ''Changing and charging the batteries''. Then install the Manschette durch die Lasche des Schutzbezuges ziehen boso XD profile manager. -
Page 9: Attaching The Cuff
After the cuff has been properly put on, a test measurement pressure is higher on the left arm, so blood pressure is measured can be triggered on the boso TM series device by means of the on the left arm. If the blood pressure is higher on the right arm, START/STOP button (measurement is only displayed if the device it should be measured on the right arm. -
Page 10: Ending The Measurement And Transferring The Measurement Data
After transferring the measured data, it his highly suggested to delete the data memory. Limiting the maximum pumping level The device of the boso TM series has the option of limiting the inflation height. For the corresponding procedure, please refer to the boso XD profile manager instructions for use. - Page 11 We recommend changing the used battery pack after each 24-hour Fig. 5 measurement and replacing it with the freshly charged battery pack. To prevent data loss, the data stored in the boso TM series device is buffered by an internal battery. This battery is automatically charged Step 3 via the battery pack.
-
Page 12: Charging The Batteries
Please leave the battery packs in the device for two hours. The internal battery is recharged during this time. To ensure proper functioning of the boso TM series device for more than 24 hours, use only rechargeable batteries with the following ratings: Reprogram the device. - Page 13 Error messages Error messages Error Cause Remedy Error Cause Remedy code code 0:00 Time sets to 0:00 when Device must be Pulse < 30 or > 200 battery is replaced reprogrammed. Zero point adjustment not Deflate cuff completely. No interpretable oscillations Check the position and fit possible in the area of diastole (E21)
-
Page 14: After Use
Cleaning and disinfection 1) Purpose To clean the boso TM series device and the cuff, please use a soft cloth that may be moistened with soapy water. Based on the EU Directive 2012/19/EU, the German implementation of For the protective covers: machine wash at max. -
Page 15: Obligation To Report Incidents
Warranty conditions / customer service 4) Contact details for the return option A return can be registered by telephone or by e-mail. The following options are available to the waste owner: This product is covered by a 2-year factory warranty from the date of purchase. -
Page 16: Accessories
Accessories Technical specifications Please use only the accessories recommended by the manufacturer. Product: Blood pressure measuring device for 24-hour measurement Cuffs Type designation: See equipment labelling Size M CA91 20 - 31 cm 259-4-400 Size M (right) CA91R 20 - 31 cm 259-4-440 Rated voltage: 2x 1.5 V DC or 2x 1.2 V DC... - Page 17 Immediately after reinserting the batteries, press and hold the white START/STOP button. The white START/STOP button must be held down until a "0" appears in the display of the boso TM series Expected service life of 10,000 measuring cycles device.
-
Page 18: Emc Information
EMC information EMC information Guidelines and manufacturer's declaration - Electromagnetic emissions Medical electrical equipment is subject to special precautions regarding EMC and must be installed and The boso blood pressure monitor is intended for operation in the electromagnetic environment specified below. commissioned in accordance with the guidelines given below. - Page 19 BOSCH + SOHN GmbH u. Co. KG Bahnhofstraße 64 | 72417 Jungingen, Germany | T + 49 (0) 74 77 92 75 - 0 | F + 49 (0) 74 77 10 21 E zentrale @ boso.de | www.boso.de...
