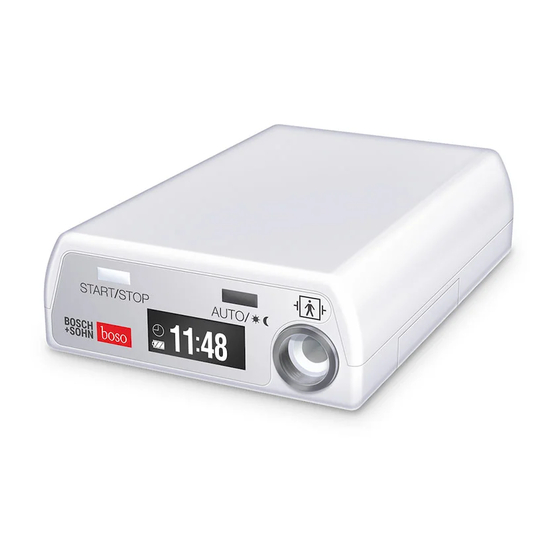

boso TM-2450
Manual
24-hour blood pressure measuring device
EN
0124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the boso TM-2450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch+Sohn boso TM-2450

Summary of Contents for Bosch+Sohn boso TM-2450

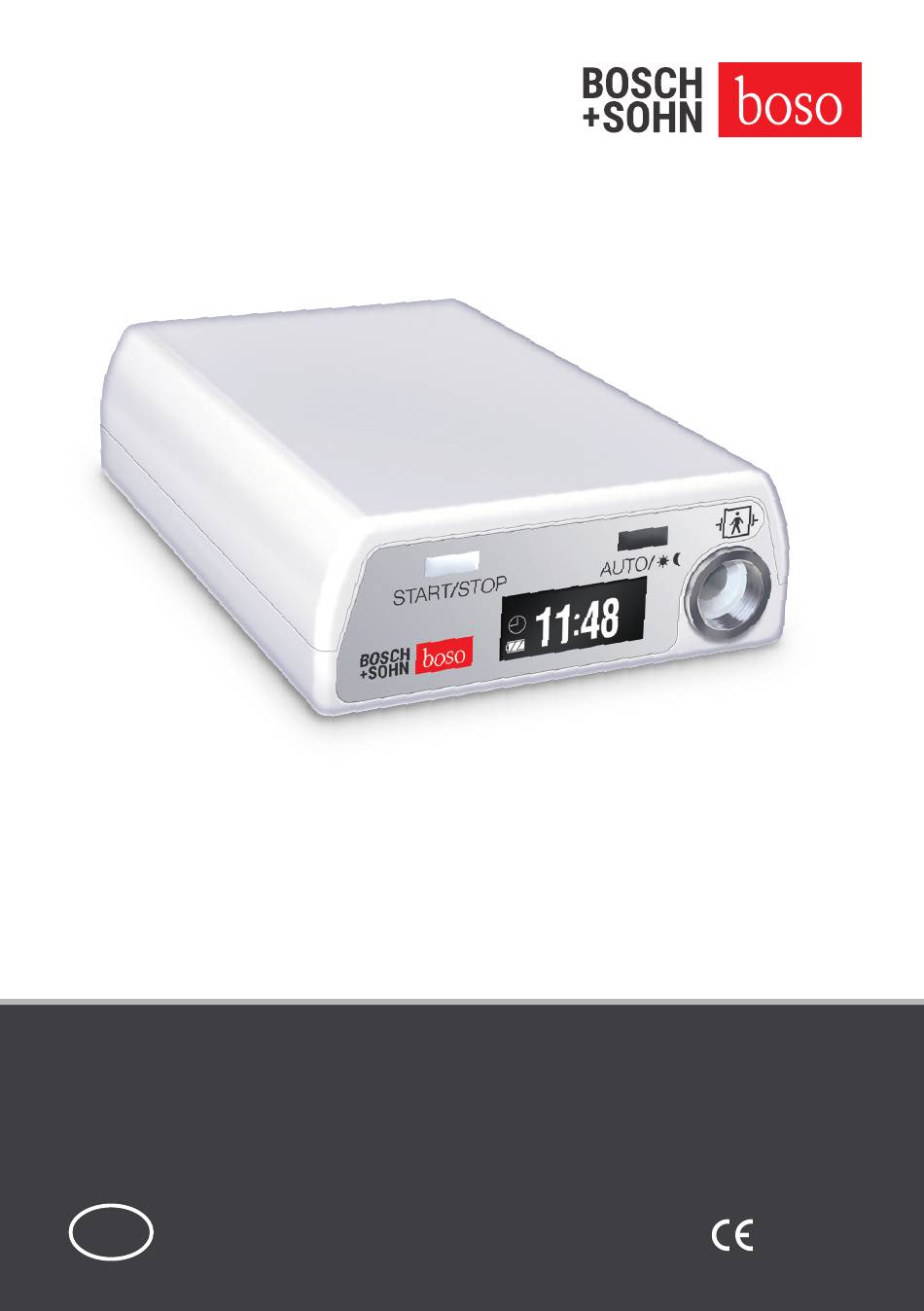

  • Page 1 TM-2450 Manual 24-hour blood pressure measuring device 0124...

  • Page 2: Table Of Contents

    Before use ..................11 Selecting and connecting the cuff ...........12 Fitting protective covers (optional) ..........13 Fitting the cuff ................14 Taking readings with the boso TM-2450 .........15 Starting automatic interval control ..........15 Automatic inflation pressure adjustment .........16 Maximum inflation pressure restriction ...........16...
  • Page 3 Interrupting readings ..............16 Finishing a reading and transferring results ........17 Replacing batteries .................18 Charging batteries ................20 Important information on battery charging ........20 Extended storage of the device ............21 Error messages ................22 After use/cleaning and disinfection ..........24 Disposal instructions...............24 Warranty conditions/customer service ..........25 Accessories ..................26 Technical data ................27 Metrology test instructions .............29...

  • Page 4: Contents Of Package

    Cuffs for adults - Size M CA91 washable - Size L CA92 washable Hip bag with detachable straps and belt Manual for: - boso TM-2450 - profil-manager XD - important information - battery charger CD-ROM - boso profil-manager XD USB connection cable...

  • Page 5: Overview Of Device

    Overview of the device Cuff connection socket AUTO button Day/night button START/STOP button Battery compartment Battery compartment 2 LR6 (AA) batteries cover Micro-USB connection on back...

  • Page 6: Symbols On The Measuring Device

    Symbols on the measuring device START/STOP button START/STOP AUTO/ AUTO button (DAY/NIGHT button) START/STOP AUTO/ _boso_medicusX_1711sd.qxd:Layout 1 15.11.2017 13:43 Uhr Seite 6 Automatic mode active Sleep mode active _boso_medicusX_1711sd.qxd:Layout 1 15.11.2017 13:43 Uhr Seite 6 Symbole auf dem Blutdruckmessgerät Battery status display: 1.

  • Page 7: Oled Display

    Diastolischer Blutdruck in mmHg Systolischer Blutdruck in mmHg Puls pro Minute Diastolischer Blutdruck in mmHg Symbols on the measuring device Gerät ist konform mit der europäischen 0124 Puls pro Minute Medizinprodukterichtlinie. Device must not be discarded with Gerät ist konform mit der europäischen 0124 Gerät darf nicht über den Hausmüll entsorgt werden.

  • Page 8: Introduction/Purpose

    Introduction Dear customer, thank you for purchasing this boso blood pressure measuring device. The boso brand offers optimum quality and accuracy. According to an survey among doctors conducted by the German market research company GfK and published in January 2016, 96% of all German general practitioners and internal medicine specialists currently use boso blood pressure meters.

  • Page 9: Area Of Use And Safety Instructions

    Area of use and safety instructions The boso TM-2450 blood pressure measuring device operates according to the oscillometric principle of measurement. The device is used to take readings over a 24-hour period. It is suitable for use both in hospitals and in community medicine.
  • Page 10 Safety instructions If any liquid has been spilt on the device, immediately remove the batteries and send the device to the customer service department (see page 25 for the address) for inspection. Check the rechargeable or disposable batteries for damage. Never use damaged rechargeable or disposable batteries.

  • Page 11: Before Use

    Before use You should charge the batteries supplied with the device before starting to use the boso TM-2450 . Follow the instructions given on pages 18 and 19 (replacing and charging batteries). Then install boso profil-manager XD. This software will allow you to programme...

  • Page 12: Selecting And Connecting The Cuff

    Selecting the cuff and connecting it to the boso TM-2450 Selecting the cuff Only use original cuffs CA91, CA91R, CA92, CA93 and CA94. The cuff must be selected according to the arm circumference printed on it. Connecting the cuff Screw the air connection plug of the cuff tube directly into the air connection socket of the blood pressure measuring device (see figure 1, page 14).

  • Page 13: Fitting Protective Covers (Optional)

    boso TM-2430 PC 2 Fitting protective covers 10 St. Schutzbezüge für (optional) boso TM-2430 PC 2 Manschette (standard) Best.Nr. 256-7-400 10 St. Schutzbezüge für Manschette (standard) If necessary you can also use protective covers to prevent soiling (see Best.Nr. 256-7-400 accessories on page 26).

  • Page 14: Fitting The Cuff

    Tape Air connection plug White marking Tape 2-3 cm boso TM-2450 cuff connection socket White marking Air connection plug 2-3 cm boso TM-2450...

  • Page 15: Taking Readings With The Boso Tm-2450

    Taking readings with the boso TM-2450 Once the cuff has been correctly fitted, a test reading can be taken with the boso TM-2450 using the START/STOP button (the reading will only be displayed if the device has been programmed accordingly). If the display is off, activate it by pressing any button.

  • Page 16: Automatic Inflation Pressure Adjustment

    60 mmHg above the original inflation pressure. Maximum inflation pressure restriction The boso TM-2450 has the ability to restrict the inflation pressure. See the boso profil-manager XD manual for details of how to do this. Taking a manual reading Patients can start a manual reading in addition to the automatic readings at any time.

  • Page 17: Finishing A Reading And Transferring Results

    ” symbol on the display screen of the blood pressure measuring device has disappeared (about 5 seconds). Then connect the boso TM-2450 to the computer via the PC connection cable. Transfer the data according to the instructions in the boso profil- manager XD manual.

  • Page 18: Replacing Batteries

    We recommend that the set of batteries in the device should be replaced by a freshly charged set once a 24-hour reading has been completed. In order to prevent data loss, the data stored in the boso TM-2450 are buffered via an internal battery. This internal battery is charged automatically via the external batteries.
  • Page 19 Replacing batteries Step 3 External battery compartment cover Step 1 Step 2 Flat batteries Step 5 Step 4 Charged batteries Figure 2...

  • Page 20: Charging Batteries

    13 hours (see charger manual). Important information on battery charging To ensure that the boso TM-2450 functions properly over a 24-hour period, only use rechargeable batteries with the following rated prop- erties: at least 1900 mAh; 1.2 V; NiMH, or disposable batteries (type AA 1.5 V).

  • Page 21: Extended Storage Of The Device

    Extended storage of the device If the device is not used for an extended period (4 weeks or more), remove the external batteries in order to prevent any damage that may be caused by leakage. The internal battery will need to be recharged and the device will need to be reprogrammed before the device can be used on a patient.

  • Page 22: Error Messages

    Error messages Error Cause Solution code 0:00 The time switches to 0:00 The device must be when batteries are replaced reprogrammed Zero point cannot be aligned Deflate cuff completely. Batteries flat Charge or replace batteries. Leak Remove cuff from device and reconnect.
  • Page 23 Error messages Error Cause Solution code Pulse < 30 or > 200 No measurable oscillations in the diastolic (E21) or systolic (E22) range Check position and fit of cuff. Difference between systolic and diastolic readings < 10 or > 150 mmHg Reading takes longer than Contact your distributor.

  • Page 24: After Use/Cleaning And Disinfection

    After use Cleaning and disinfection Please use a soft cloth, moistened in soapy water if necessary, to clean the boso TM-2450 and the cuff. For the protective covers: Machine wash, maximum temperature 60°C. Never use solvents, petrol, alcohol or abrasives for cleaning.

  • Page 25: Warranty Conditions/Customer Service

    Warranty conditions/customer service We provide a two-year manufacturer's warranty on this product from the date of purchase. The date of purchase must be shown by the invoice. Defects due to material or manufacturing shortcomings are repaired free of charge within the warranty period. If parts are replaced under warranty, the warranty period is extended only for those parts, not for the entire device.

  • Page 26: Accessories

    Accessories Please only use the accessories recommended by the manufacturer. Cuffs Size M CA91 20 - 31 cm 259-4-400 Size M (right) CA91R 20 - 31 cm 259-4-440 Size L CA92 28 - 38 cm 259-4-410 Size XL CA94 36 - 50 cm 259-4-430 Size S CA93...

  • Page 27: Technical Data

    Technical data Product: Blood pressure measuring device for 24-hour readings Type designation: boso TM-2450 Rated voltage: 2x 1.5 V DC or 2x 1.2 V DC Power supply: 2x NiMh batteries (AA) Measurement range: Systole: 60 - 280 mmHg Diastole: 30 - 160 mmHg...
  • Page 28 Technical data Dimensions (W x H x D): 66 mm x 25 mm x 95 mm Typical battery life: 1,000 charging cycles (depending on inflation pressure+frequency of use) Anticipated life of the device: 10 years Anticipated life of cuffs: 10,000 readings Clinical test: Accuracy of measurement complies with the requirements...

  • Page 29: Metrology Test Instructions

    Test instructions for the metrology test A) Function test Function tests of the device can only be performed on a human subject or a suitable simulator. B) Test of tightness of the pressure circuit and pressure display deviation Remove the batteries. Then set up the test as shown in figure 3. Hold down the white START/STOP button as soon as you have reinserted the batteries.

  • Page 30: Emc Information

    EMC information Medical electrical equipment is subject to specific precautions with regard to EMC and must be installed and operated in accordance with the guidelines set out below. Portable and mobile HF devices such as mobile phones can affect medical electrical equipment. The use of third-party accessories (not boso original parts) can lead to increased emission or reduced immunity.
  • Page 31 EMC information Guidelines and manufacturer's declaration - electromagnetic emission The boso blood pressure measuring device is intended to be operated in the electromagnetic environment indicated below. The customer or user of the boso blood pressure measuring device should ensure that it is used in such an environment.. Immunity tests IEC 60601 Compliance...
  • Page 32 BOSCH + SOHN GmbH u. Co. KG Bahnhofstraße 64 | 72417 Jungingen, Germany | Tel. + 49 (0) 74 77 92 75 - 0 | Fax + 49 (0) 74 77 10 21 Email zentrale @ boso.de | boso.de...
