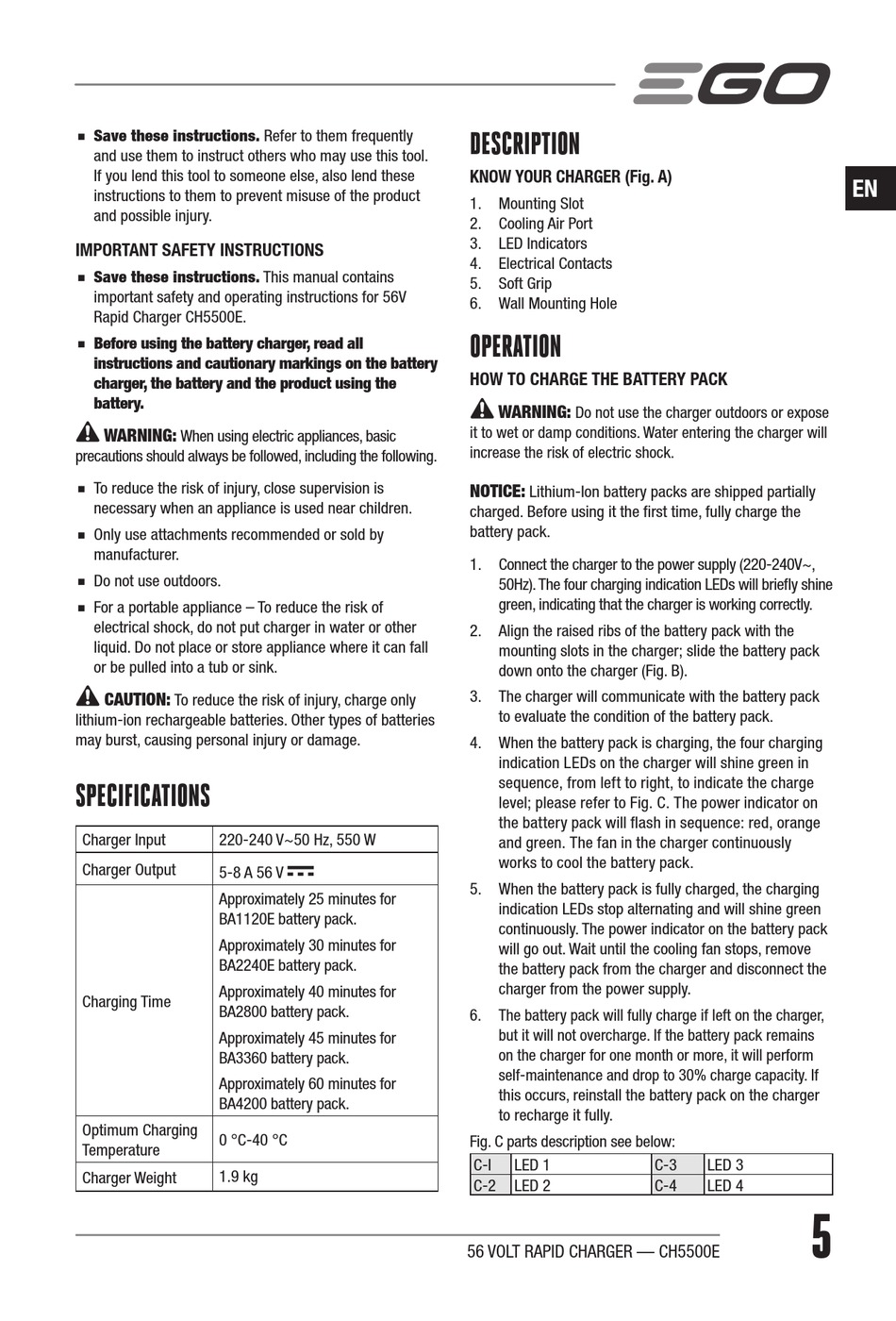

Specifications; Operation - Ego Power+ CH5500E Manual

◾
Save these instructions. Refer to them frequently
and use them to instruct others who may use this tool.
If you lend this tool to someone else, also lend these
instructions to them to prevent misuse of the product
and possible injury.
IMPORTANT SAFETY INSTRUCTIONS
◾
Save these instructions. This manual contains
important safety and operating instructions for 56V
Rapid Charger CH5500E.
◾
Before using the battery charger, read all
instructions and cautionary markings on the battery
charger, the battery and the product using the
battery.
WARNING:
When using electric appliances, basic
precautions should always be followed, including the following.
◾
To reduce the risk of injury, close supervision is
necessary when an appliance is used near children.
◾
Only use attachments recommended or sold by
manufacturer.
◾
Do not use outdoors.
◾
For a portable appliance – To reduce the risk of
electrical shock, do not put charger in water or other
liquid. Do not place or store appliance where it can fall
or be pulled into a tub or sink.
CAUTION:
To reduce the risk of injury, charge only
lithium-ion rechargeable batteries. Other types of batteries
may burst, causing personal injury or damage.

SPECIFICATIONS

Charger Input 220-240 V~50 Hz, 550 W
Charger Output
5-8 A 56 V
Approximately 25 minutes for
BA1120E battery pack.
Approximately 30 minutes for
BA2240E battery pack.
Approximately 40 minutes for
Charging Time
BA2800 battery pack.
Approximately 45 minutes for
BA3360 battery pack.
Approximately 60 minutes for
BA4200 battery pack.
Optimum Charging
0 °C-40 °C
Temperature
1.9 kg
Charger Weight
DESCRIPTION
KNOW YOUR CHARGER (Fig. A)
1. Mounting Slot
2. Cooling Air Port
3. LED Indicators
4. Electrical Contacts
5. Soft Grip
6. Wall Mounting Hole

OPERATION

HOW TO CHARGE THE BATTERY PACK
WARNING:
Do not use the charger outdoors or expose
it to wet or damp conditions. Water entering the charger will
increase the risk of electric shock.
NOTICE:
Lithium-Ion battery packs are shipped partially
charged. Before using it the first time, fully charge the
battery pack.
1. Connect the charger to the power supply (220-240V~,
50Hz). The four charging indication LEDs will briefly shine
green, indicating that the charger is working correctly.
2. Align the raised ribs of the battery pack with the
mounting slots in the charger; slide the battery pack
down onto the charger (Fig. B).
3. The charger will communicate with the battery pack
to evaluate the condition of the battery pack.
4. When the battery pack is charging, the four charging
indication LEDs on the charger will shine green in
sequence, from left to right, to indicate the charge
level; please refer to Fig. C. The power indicator on
the battery pack will flash in sequence: red, orange
and green. The fan in the charger continuously
works to cool the battery pack.
5. When the battery pack is fully charged, the charging
indication LEDs stop alternating and will shine green
continuously. The power indicator on the battery pack
will go out. Wait until the cooling fan stops, remove
the battery pack from the charger and disconnect the
charger from the power supply.
6. The battery pack will fully charge if left on the charger,
but it will not overcharge. If the battery pack remains
on the charger for one month or more, it will perform
self-maintenance and drop to 30% charge capacity. If
this occurs, reinstall the battery pack on the charger
to recharge it fully.
Fig. C parts description see below:
C-I LED 1
C-2 LED 2
56 VOLT RAPID CHARGER — CH5500E
C-3 LED 3
C-4 LED 4
5
EN
