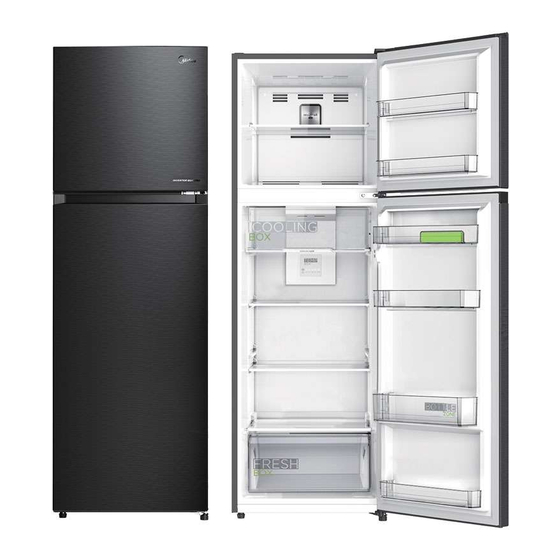

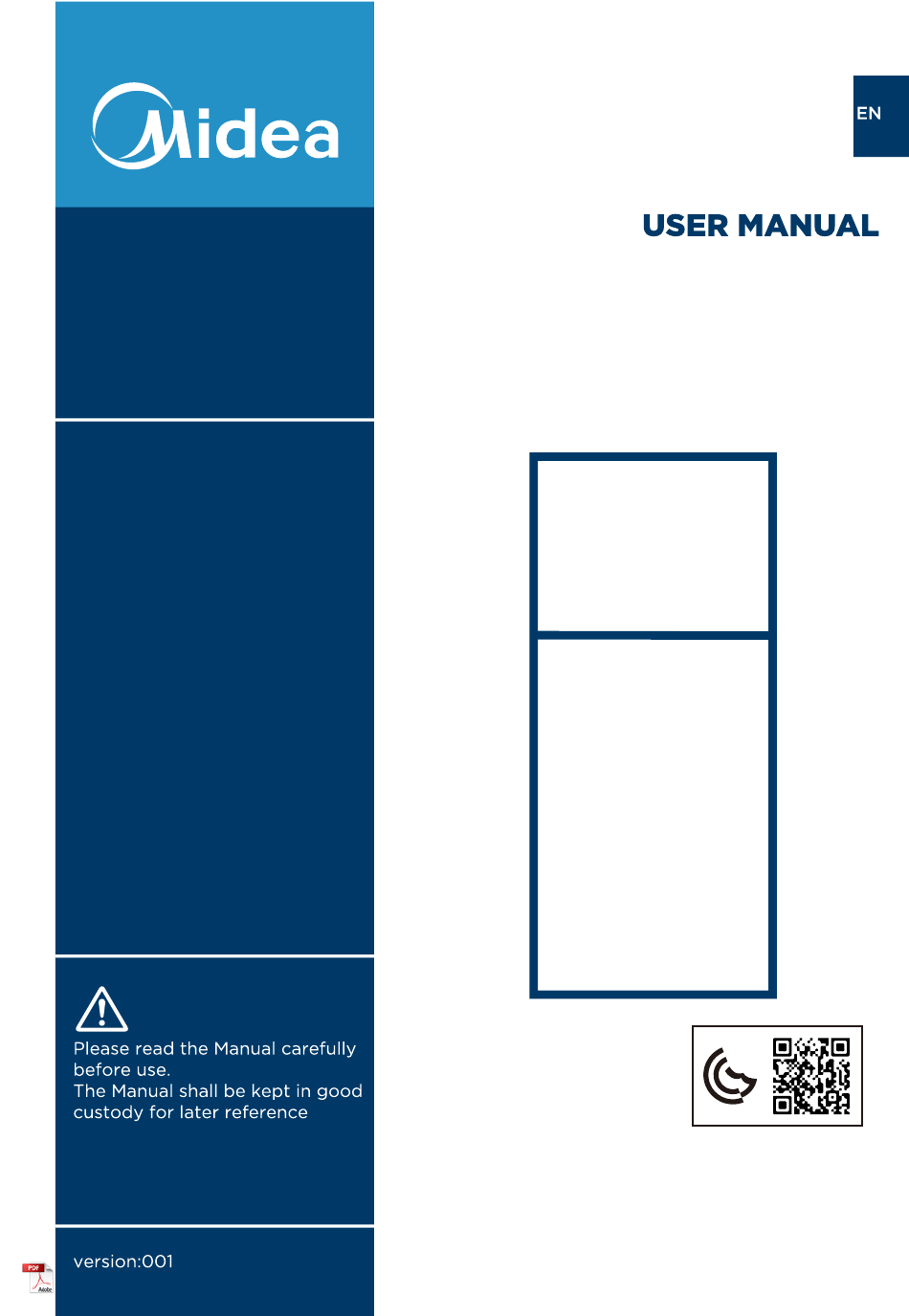

- Page 1 REFRIGERATOR Top Freezer Manufacturer:Guangzhou Midea Hualing Refrigerator Co., Ltd.5 Xinguangsi Road, Zhujiang, Qianfeng community, Nansha, Guangzhou, 511462 Guangdong, China MODEL: MDRT385MTE46 www.midea.com...
-
Page 2: Table Of Contents
CONTENTS 1 Safety warnings 1．1 Warning ..........................1．2 Meanings of safety warning symbols..................3 1．3 Electricity related warnings....................3 1．4 Warnings for using........................4 1．5 Warnings for placement ...................... 4-5 Warnings for energy 1．6 ......................... 5 1．7 Warnings for disposal......................5 2 Proper use of the refrigerator 2．1 Placement.......................... -
Page 3: Safety Warnings
1 Safety warnings 1.1 Warning Warning risk of fire / flammable materials THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments;... - Page 4 REFRIGERANT and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
-
Page 5: 1．2 Meanings Of Safety Warning Symbols
1 2 . Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;... -
Page 6: 1．4 Warnings For Using
1 4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. -
Page 7: 1.6 War Nings For Energy
Do not store beer, beverage or other fluid contained in bottles or Freezing chamber enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy Warning for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period... -
Page 8: 2．1 Placement
2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. -
Page 9: 2．2 Levelling Feet
2.2 Leveling feet Schematic diagram of the leveling feet (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. - Page 10 1)Please power off this appliance before conduct this operation. Remove all food from door shelves. 2)Remove hole cap, the upper hinge cover,fitting screws of upper hinge,upper hinge and sleeve pipe,then uplift the freezer door until it is separated from cabinet completely. hole cover upper hinge cover screw...
- Page 11 4)Remove the adjusting feet, lower hinge screw and lower hinge assembly, then install the lower hinge assembly on the other side of the box and install the adjusting feet on the side of the adjusting feet opening. Lower hinge assembly Adjusting feet screw 5)Dismantle the limit blocks and screws on the lower cover of both refrigerator door and freezer door,...
-
Page 12: 2．4 Changing The Light
7) Install the freezer door on the middle hinge, and install the upper hinge, hinge cover and hole cover. hole cover hinge cover screw upper hinge (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) 2 4 Changing the Light Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its... -
Page 13: 3．1 Key Components
3.1 Key components Shelf Door tray LED light Damper adjusting slider Drawer flip Temperature control panel Door tray Refrigerator glass shelf Fruits and vegetables box BCD-190WX BCD-220WX Shelf Door tray LED light Damper adjusting slider Drawer flip Temperature control panel Refrigerator glass shelf Door tray... - Page 14 Shelf Door tray LED light Damper adjusting slider Drawer flip Temperature control panel Door tray Refrigerator glass shelf Fruits and vegetables box cover plate Fruits and vegetables box BCD-280WE (The picture above is only for reference.The actual configuration will depend on the physical product or statement by the distributor) Refrigerating chamber The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and...
- Page 15 3.2 Functions ② ③ ④ ⑤ ① Notes: (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) 1) Setting button A: Setting button 2) Display screen ① LED: gear( COLD) ②...
-
Page 16: 4．1 Overall Cleaning
4. Maintenance and care of the appliance 4.1 Overall cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. -
Page 17: 4．3 Defrosting
Defrosting The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Out of operation Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours;... -
Page 18: 5 Trouble Shooting
5 Trouble shooting You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact . Failed operation Check whether the voltage is too low.
