Lowrance LDT-3002 Install And Operation Instructions

Installation and Operation
The LDT-3002 combines up to three temperature sensors in one
housing. (Since the LDT-3002 is packed with different options, you may
not have all three sensors.) It shows the temperature in either °F or °C,
selectable by the user. This unit fits in a standard 2 1/8" (54 mm) hole
used by most marine equipment manufacturers.

Mounting

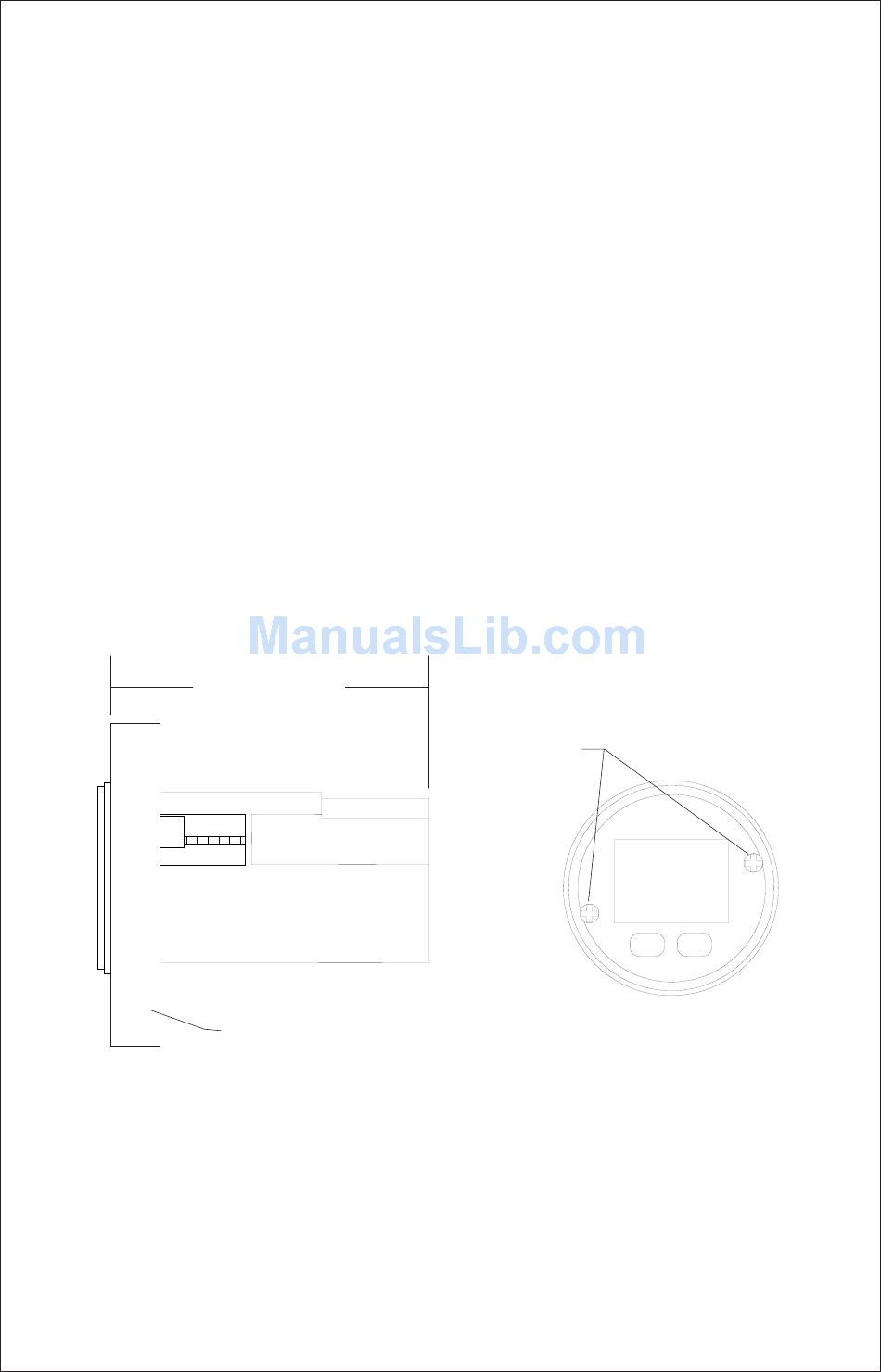

The LDT-3002 mounts in any dash or flat panel that's at least 2 1/2" (64
mm) in diameter. To mount the unit, first make certain there is at least
3 3/4" (95 mm) from the front of the dash to any obstruction behind the
dash. Also, be sure there is room to route the power and sensor cables.
The maximum usable dash thickness is 1 1/8" (28.5 mm).
3 3/4" minimum
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
When you determine the location for the LDT-3002, drill a 2 1/8" (54
mm) hole in the dash. Slide the LDT-3002 through the hole from the
front of the dash. Align it so that it's straight, then tighten the two
screws with a phillips-head screwdriver.
Place the push-buttons into the holes in the bezel and snap it on to the
LDT-3002. The unit is now ready for wiring.
LDT-3002
Instructions
DASH
TIGHTEN
THESE
SCREWS
1
