Programmable Switch
The transmitter can also be configured as a "one button" device by
locking the ability to make changes with the keypad, and configuring
the top panel switch as either power on/off or a mute function.
Modulation Indicator LEDs
When the transmitter is set to MUTE, the -10 Modulation Indicators
LED will glow solid red. Otherwise, the -10 Modulation Indicators LED
will glow solid green when transmitter is on.

Belt Clips

The wire belt clip may be removed by pulling the ends out of the holes
in the sides of the case. Be sure to have a firm grip to avoid scratching
the surface of the housing.
An optional spring-loaded, hinged belt clip (model number BCSLEBN)
is also available. This clip is attached by removing the plastic hole cap
on the back of the housing and mounting the clip with the supplied
screw.

IR (infrared) Port

The IR port is available on the top of the transmitter for quick setup
using a receiver with this function available. IR Sync will transfer the
settings for frequency from the receiver to the transmitter.

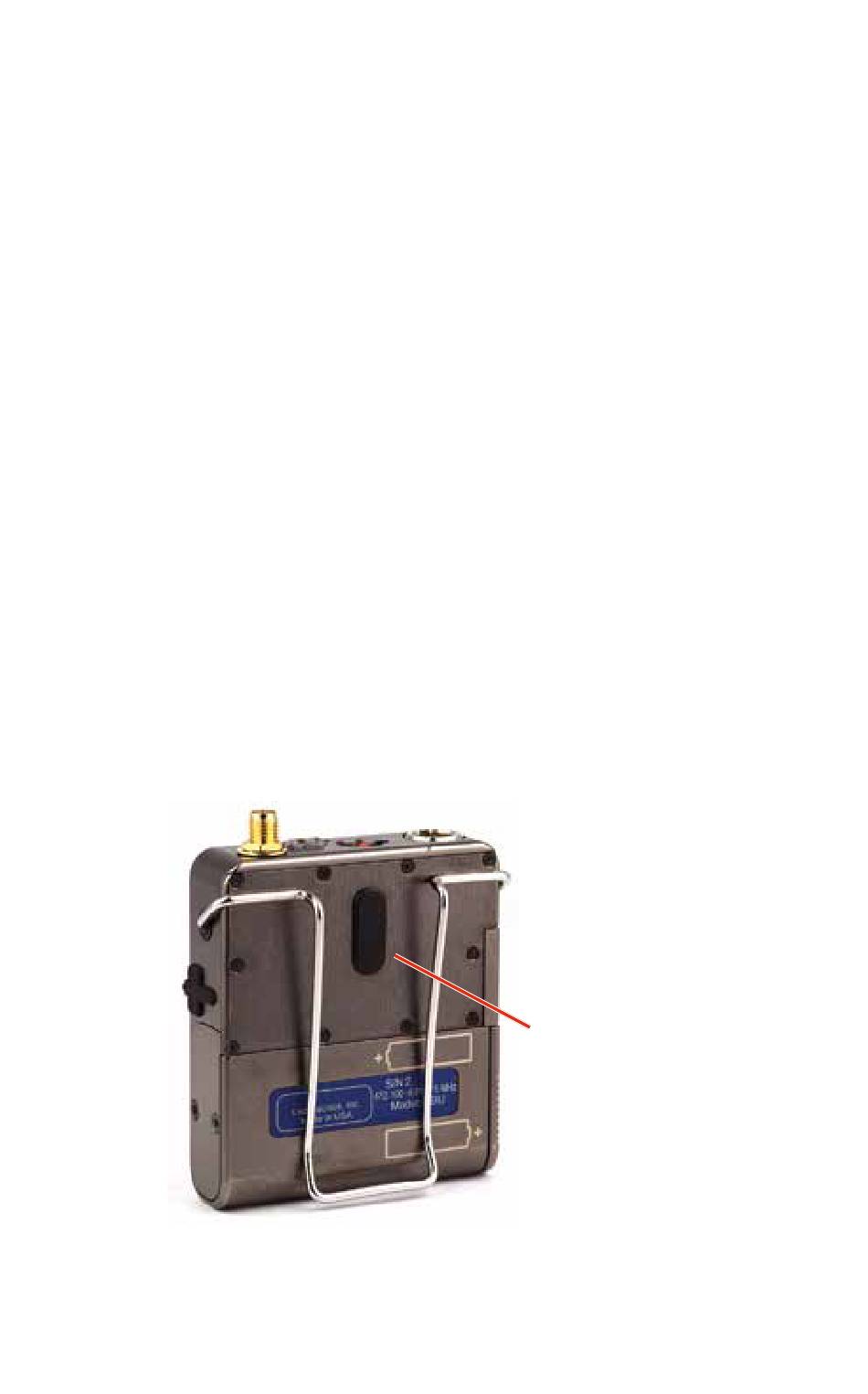

Remove hole cap to
attach spring loaded
belt clip
