Main Menu and Setup Screen
Details

Entering the Main Menu

The LCD and keypad interface makes it easy to browse the menus and
make the selections for the setup you need. When the unit is powered
up in either the operating or the standby mode, press MENU/SEL on
the keypad to enter a menu structure on the LCD. Use the
row buttons to select the menu item. Then press the MENU/SEL button
to enter the setup screen.
The prompt in the upper right corner may display one or
both arrows, depending upon what adjustment can be
made. If the changes are locked, a small padlock symbol

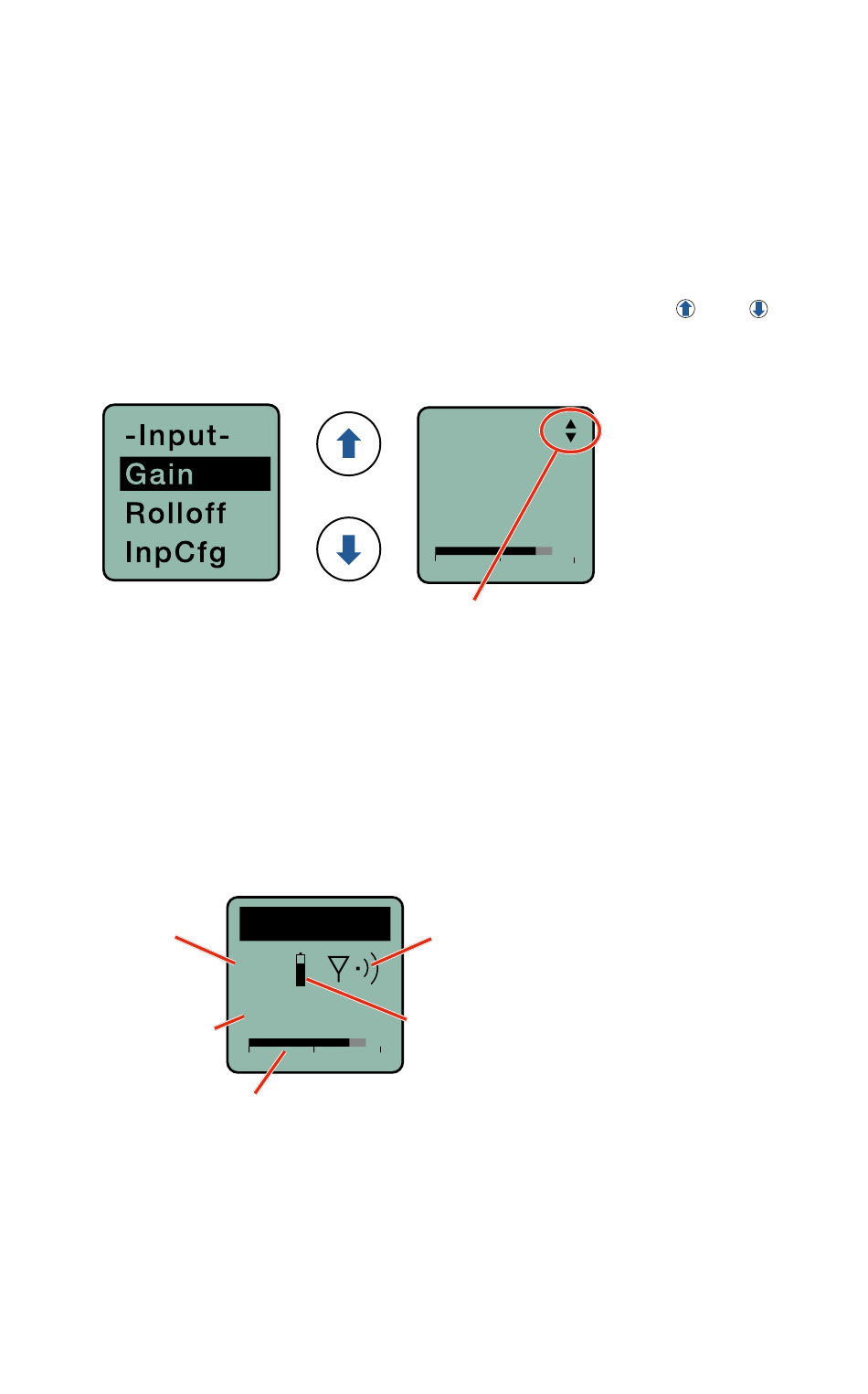

Main Window Indicators

The Main Window displays on/off status, talkback or audio mute status,
standby or operating mode, operating frequency, audio level and
battery status.
Audio Mute or
Talkback status
Frequency (MHz)
Audio level
If the programmable switch function is set for Mute or Talkback, the
Main Window will indicate that the function is enabled.
8
will appear.
DBu
MUTE
470.100
-40
-20 +0
Gain
25
-40 -20 0
RF On/Off
Status
Battery status
