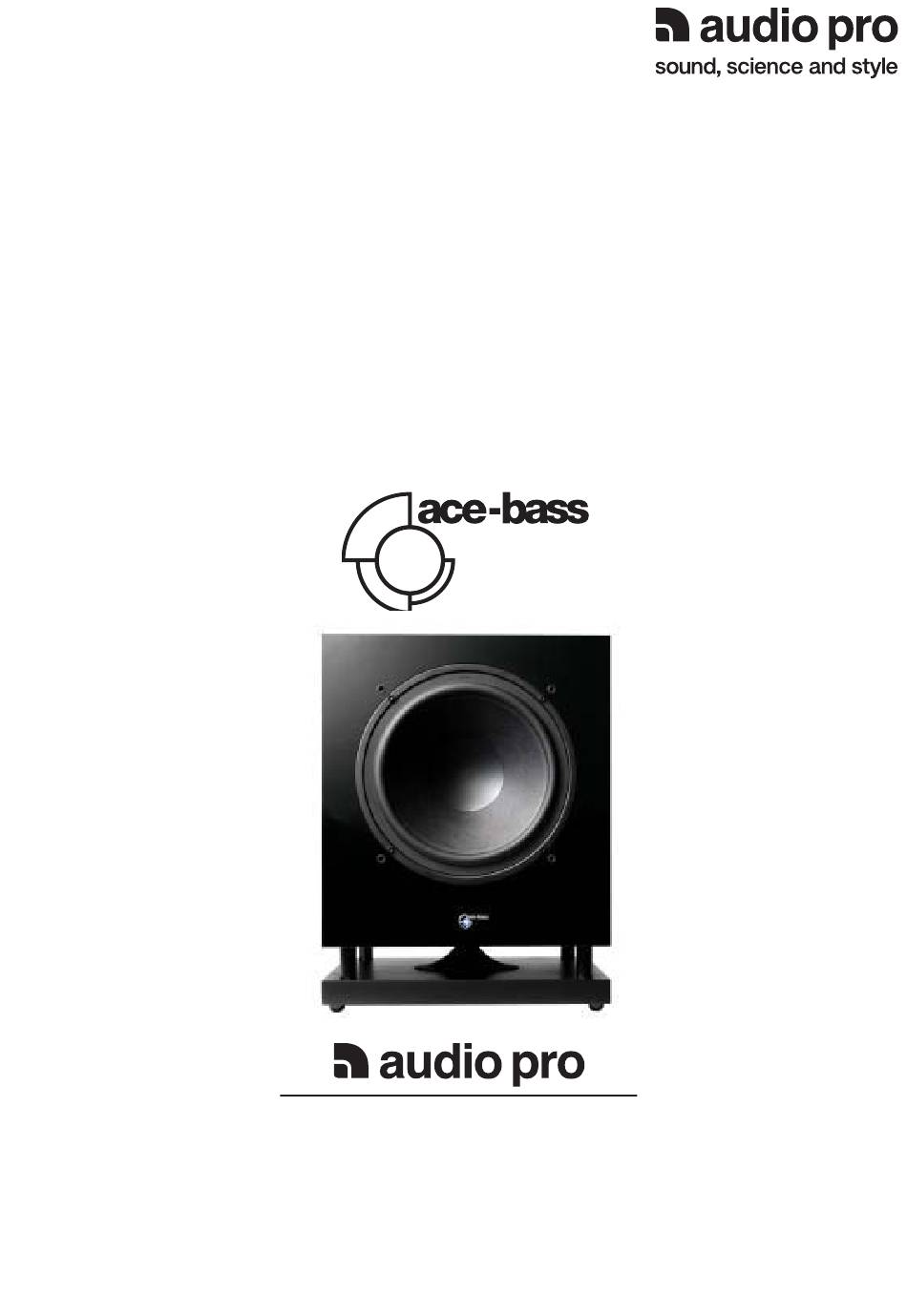

- Page 1 Service manual B1.36 Powered Subwoofer featuring Headquarters: Audio Pro AB. Box 1015. S-251 10 HELSINGBORG SWEDEN R&D , Service and spareparts: Audio Pro AB. Box 1308. S-581 13 LINKÖPING SWEDEN B1.36 manual 07.2004...
- Page 2 Technical data B1.36 Enclosure: 200W powered, bass reflex. Drive units, Woofer: 10” heavy duty woofer Crossover -Hi Pass: 100Hz 6dB / octave -Lo Pass: 50 - 100Hz / 24dB / octave Freq.range: 25-100Hz Power requirements: AC 230V 50HZ Power consumption (max):...
- Page 3 Important note when repairing power amp pcb on B.5 or B.5 amp’s. Before you perform soldering / unsoldering or DC resistance measuring on power amp pcb, connector CN03B must be disconnected. Otherwise unwanted discharge might cause damage on semiconductors.
- Page 4 LOW PASS FREQUENCY 50HZ 100HZ AUTO LINE IN SPEAKER LEVEL CAUTION B1.36 RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING:SHOCK HAZARD-DO NOT OPEN. AC 230V 50Hz 200W AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR. Serial no: DOUBLE INSULATION - when servicing CAUTION: use only identical replacement parts.
- Page 10 S-15V S+15V C117 C118 R129 R132 D102B R136 10U/50V 10U/50V IC105B D101 R131 1N4148 100K TL072 1N4148 IC105A R143 TL072 R133 R135 C116 100U/50V R137 S+15V S-15V Title B1.36 Size Document Number <Doc> DG-A Date: Wednesday, June 02, 2004 Sheet...
- Page 11 0.22(M) +15V +15V CN06A CN06B SET1 +15V R240 LED02 3PIN LED(B) 0.33(M) C210 CN05A LED01 +VCC -VCC S-15V LED(R) R239 -15V +15V C219 C220 CN05B 10/50 10/50 Title B1.36 Size Document Number <Doc> DG-A Date: Wednesday, June 02, 2004 Sheet...
- Page 12 100/25 C404 100/25 C408 0.001/400V FUSE 115V POWER C407 0.1/275(AC) C409 D404 RE01 6800/63 1N4004 12V RELAY 115V T402 C410 AC INPUT 115V K29-2021C D403 KBL06 6800/63 Title B1.36 Size Document Number <Doc> DG-A Date: Wednesday, June 02, 2004 Sheet...
- Page 13 Ref no Part no Description Qty Available Y/N Wrap board Front board B1.35 B Woofer GRI-69 Front grille Support board Wrap board Back board Air Flow 69 BX port Paper tube 152mm Wood base Bass Eq Spacer 48mm Insert nut Screw 4x20 head 8 Amplifier (see separate parts list) Screw 4x20...
- Page 14 Parts list B1.36 Europe 230V 50Hz POSITION PART NO DESCRIPTION B1.36 AMP ASSY RED LED POWER ADL-6S702 LED RED 5MMD Q208 ATR-2SB817 TR 2SB817 (A1492) Q209 ATR-2SC3421 TR 2SC3421 Q207 ATR-2SD1047 TR 2SD1047 (C3856) POWER SWITCH CAPACITOR ECW-400V102K CAP Y-SUPPRESSOR 0.001UF/400V +-10%...
- Page 15 Parts list B1.36 Europe 230V 50Hz POSITION PART NO DESCRIPTION POWER AMP PCB D201,D202 ADD-1N4148 DIODE, 1N4148 ZD201 ADZ-UZ3.3BM DIODE ZENER UZ 3.3BM 1/2W IC201 AIC-TL071 IC TL071(TI) IC202 AIC-TL072 IC DUAL OP AMP TL072 Q210,Q202 ATR-2SA1015 TR 2SA1015 Q206...
- Page 16 Parts list B1.36 Europe 230V 50Hz POSITION PART NO DESCRIPTION R240 ERC-121Y183J RES CF 1/8W Y 18K +-5% R237 ERC-121Y224J RES, 220K OHM 1/8W +-5% R239 ERC-121Y332J RES, 3K3 OHM 1/6W +/-5% R235 ERC-121Y333J RES, 33K OHM 1/6W +/-5% R201...
- Page 17 Parts list B1.36 Europe 230V 50Hz POSITION PART NO DESCRIPTION 15V POWER SUPPLY PCB D306.D307 ADD-1N4004 DIODE, 1N4004 IC304.IC306 AIC-KA7815 IC KA7815 IC303.IC305 AIC-KA7915 IC KA7915 Q301 ATR-2SC3421 TR 2SC3421 C301-308 ECE-025T227M CAP, ELEC 220UF 25V +/-20% R301 ERB-202K101J RES MO 2WK 100 +-5%...
