Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Loft Collection

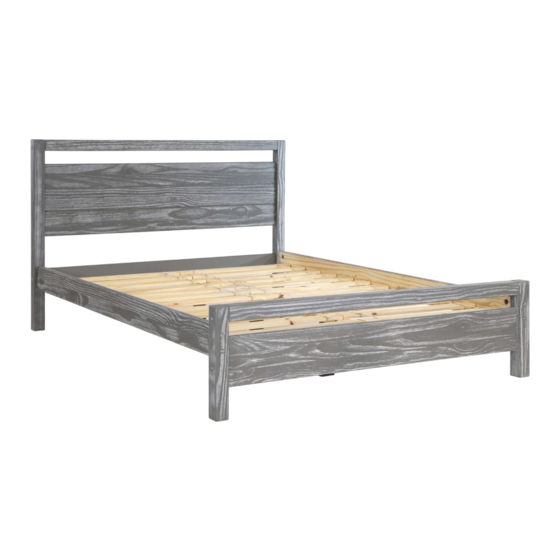

Full Platform Bed
REV - 01/2022
Assembly Instructions
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
Model #
Finish
JLF0203
Brushed White
JLF0240
Brushed Grey
JLF0268
Weathered
JLF0289
Acacia
PH #2
Pine
page 1/10
Advertisement
Related Manuals for GrainWood Loft JLF0203
Summary of Contents for GrainWood Loft JLF0203

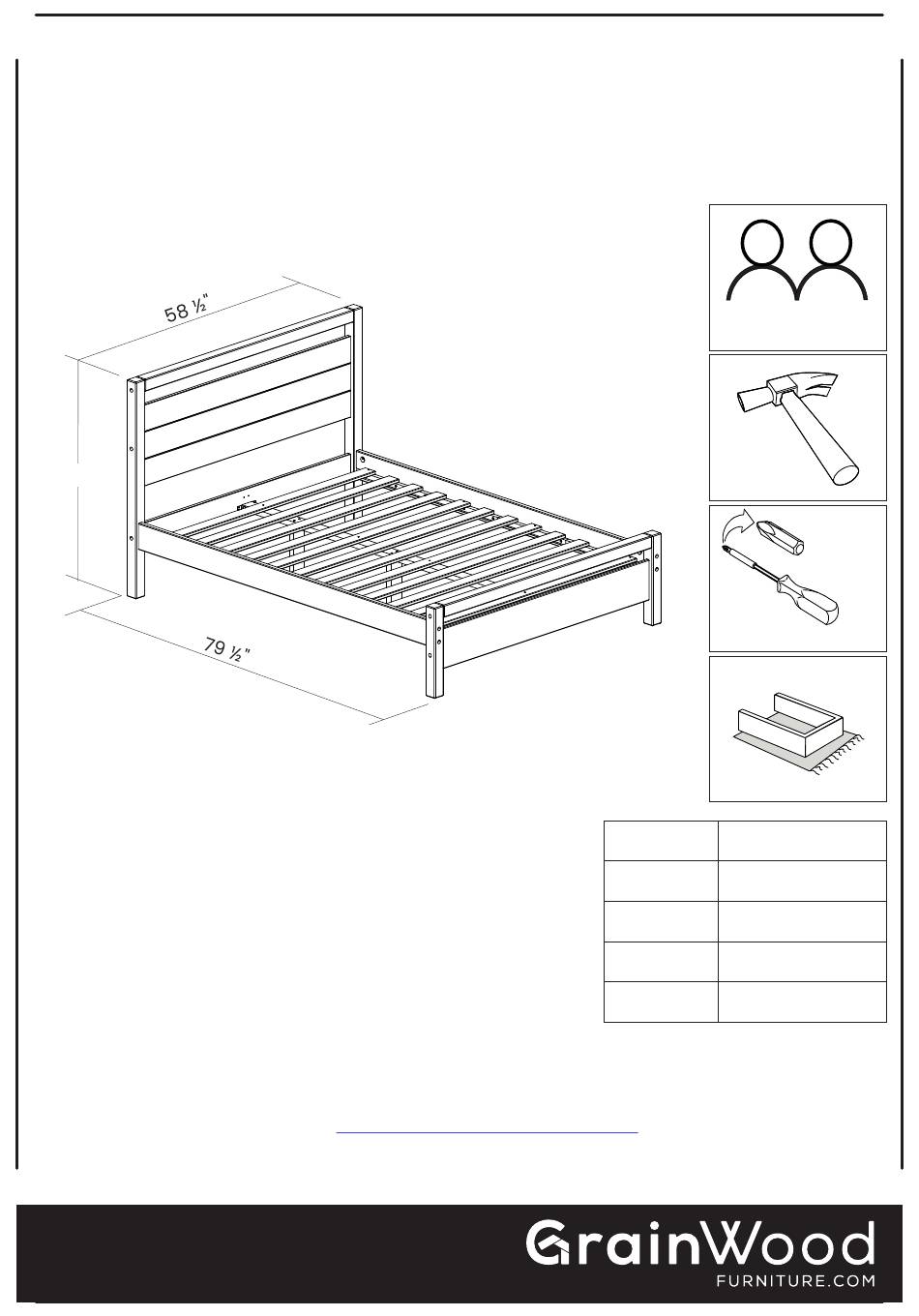

- Page 1 Assembly Instructions 2-person assembly 42" PH #2 Model # Finish JLF0203 Brushed White JLF0240 Brushed Grey JLF0268 Weathered Pine JLF0289 Acacia Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Loft Collection...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
- Page 3 HARDWARE LIST 16 + 1 3,5x16 12 + 1 3,5x35 7,0x90 cab. Ø17 14 + 1 1/4" 1/4"x100 cab. Ø17 7,0x70 cab. Ø17 22 + 1 10x50 30x30 14 + 5 ATTENTION Before starting assembly please verify the hardware set is complete. For missing hardware please contact us at grainwoodfurniture.com/help...
- Page 4 Box A - 1 of 2 Box B - 2 of 2 Qty. Qty. Description Description Part # Part # Right headboard post Footboard lower crosspiece Headboard Left headboard post Right footboard post Headboard lower crosspiece Slat roll Left footboard post Side rail Center rail Center support...
- Page 5 Tip : Use a hammer in case dowels are hard to install by hand. 10x50 upper side upper side 6 D28 3,5x16 page 5/10...
- Page 6 B2+G8 B12+G8 G8+B2 G8+B12 1/4" 7,0x90 1/4"x100 B2+G8 B12+G8 B12+G8 G8+B2 G8+B12 G8+B12 7,0x90 1/4"x100 1/4" page 6/10...
- Page 7 upper side 3,5x16 G8+B12 G8+B12 G8+B12 G8+B12 1/4" 1/4"x100 page 7/10...
- Page 8 B12+G8 B12+G8 B12+G8 B12+G8 1/4" B12+G8 B12+G8 1/4"x100 B12+G8 B12+G8 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 7,0x70 page 8/10...
- Page 9 Attention: There are no predrilled holes for the A9 screws on part 09. 3,5x16 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 page 9/10...
- Page 10 Tip - Do not install wood caps in the back of the headboard posts. Instead save these 4 caps for eventual future use. The wood caps should be flush with the post surface Tip - Use a Rubber Mallet or a piece of wood to protect the finish when hammering the wood cap page 10/10...
