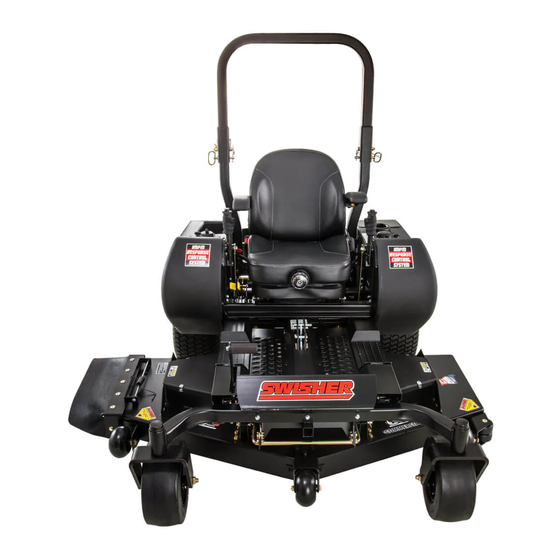

COMMERCIAL PRO
Patented
Model:
Z2366CPKA-CA
Z2466CPKA-CA
SWISHER ACQUISITION INC.
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
PHONE: 660-747-8183 FAX: 660-747-8650
TOLL FREE: 1-800-222-8183
Manufacturing quality lawn care equipment since 1945,
Celebrating over 70 years of innovation
6/1/2022
OWNER'S MANUAL
STARTING SERIAL # L122-096001
21003 REV 22-096
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher COMMERCIAL PRO
Summary of Contents for Swisher COMMERCIAL PRO
- Page 1 COMMERCIAL PRO Patented Model: Z2366CPKA-CA Z2466CPKA-CA SWISHER ACQUISITION INC. 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093 PHONE: 660-747-8183 FAX: 660-747-8650 TOLL FREE: 1-800-222-8183 Manufacturing quality lawn care equipment since 1945, Celebrating over 70 years of innovation 6/1/2022 OWNER’S MANUAL STARTING SERIAL # L122-096001...
-
Page 2: Limited Warranty
1-800-222-8183. The model number, serial number, date of purchase and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. -
Page 3: Read Before Operating
INTRODUCTION Congratulations! Thank you for purchasing a Swisher Zero Turn mower. This machine is built for the greatest efficiency and rapid mowing of large areas. Innovative handle control design and dual commercial grade hydrostatic transmissions regulated by steering levers contribute to the machine’s performance. -
Page 4: Uncrating & Assembly
INTRODUCTION CAUTION Use extreme care when working on machinery. Before performing any maintenance, turn off engine, allow the unit to cool and remove the key. Disconnect Uncrating & Assembly: spark plug wire. Set Parking Brake by pulling up on both arms until locked Tools Required: into the “engaged”... -
Page 5: Symbols And Decals
SYMBOLS & DECALS 18795 - Warning Decal Operator must be Seated Decal - OD73 Flying Debris Decal - OD43 ꇀ Ӆ Before Exiting Decal - 18797 Notice Do Not Alter Wiring Decal - OD74 Triangle Danger Decal - OD55 No Step Decal - OD11 ROPS Warning Decal Serial # ID Tag EPA / CARB Certification Decal... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS These instructions are for your safety. Read them carefully. This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. General Use: Read all instructions in this operator’s manual and on the machine NOTE:... -
Page 7: Slope Operation
SAFETY INSTRUCTIONS Children: Serious accidents may occur if you fail to be on guard for Remember: children in the area of the machine. Children are often attracted to the machine and mowing work. The operator is responsible for Never assume that children will stay put where you last saw avoiding dangers or accidents. - Page 8 SAFETY INSTRUCTIONS General Use ContinuedS Mowing Safety: WARNING – Gasoline is highly flammable. • Store fuel in containers specifically designed for this purpose. • Refuel outdoors only and do not smoke while refueling. • Add fuel before starting the engine. Never remove the cap of the fuel tank or add gasoline while the engine is running or when the engine is hot.
-
Page 9: Customer Responsibilities
CUSTOMER RESPONSIBILITIES Operator Presence System: Be sure to check that the operator presence and interlock systems are working properly before each use. If your mower does not function as described, repair the problem immediately. The engine should not start unless the parking brake is engaged and the PTO (Blade Engagement Switch) is disengaged (pressed down). -
Page 10: Charging Tips
CHARGING TIPS To avoid a battery explosion, never attempt to charge a frozen battery. Warning: Gel and AGM (Absorbed Glass Mat) batteries require a voltage-limited charger. Charging a Gel or AGM battery on a typical shop charger, even one time, may greatly shorten its life. -
Page 11: Overall Unit Care
CUSTOMER RESPONSIBILITIES V-Belts: Check V-belts for deterioration and wear before each use and replace if necessary. Replace belts if they begin to slip from wear. SEE SPECIFICATION for belt part numbers and SERVICE section of this manual for instructions on how to replace the belt. Engine: REFER TO YOUR ENGINE OWNERS MANUAL. -
Page 12: Maintenance Schedule
CUSTOMER RESPONSIBILITIES Maintenance Schedule Before Before Each 8 Hours 25 Hours 50 Hours 100 Hours Season Storage Check Brake Operation Check Tire Pressure Check Operator Presence Parking Brake Check for Loose Fasteners Sharpen/Replace Mower Blades Check Battery Clean Battery & Terminals Ӆ... -
Page 13: Operation & Features
OPERATION & FEATURES Hydro Bypass – Engages transmissions for Throttle Control – Used to control Engine Speed. normal operation and disengages transmissions for pushing or pulling the unit. Hour Meter – Indicates hours of operation. Fuel Tanks – Dual 4.0 gal. PTO Switch –... - Page 14 OPERATION & FEATURES Left Control Panel Right Control Panel 轰 ǻ PTO / Blade Engagement Switch Throttle Control Cable Hour Meter – Indicates hours of operation 12V Accessory Outlet Plug Safety Starting Interlock Switch Starting Instructions Decal Key Switch Accessory hole for On/Off Toggle Switch (P/N 18782) Choke Cable* NOTE:...
-
Page 15: Operation
OPERATION Grass Height & Cutting Suggestions: Do not attempt to cut wet grass. The average lawn should be cut to 2 ½” during the cool season and to over 3” during the hot months. For healthier and better looking lawns, mow often and after moderate growth. As a rule, never cut more than 1/3 of the total grass blade length. -
Page 16: Control Handles
Note: The pressure required to operate the mower is very slight. Fuel Shut-Off Valves Swisher Response Zero Turn Mowers are equipped with two shut-off valves, one for each tank. These are located behind the seat and in front of the engine. -
Page 17: Adjusting The Cutting Height
The cutting range is from approximately 1.5” to approximately 4.5”. Parking Brakes / Transmission Bypass Adjustments Swisher Response Zero Turn Mowers are equipped with a manual parking brake linked with transmission bypasses. This system must be engaged by the operator before starting the vehicle and also before exiting the vehicle. - Page 18 SERVICE & ADJUSTMENTS Deck Belt Routing & Replacement For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual. Removal 1. Engine-to-Deck belt 2. Deck idler belt Disconnect spark plug wire. 3. Deck pulleys Apply parking brake. 4.
- Page 19 SERVICE & ADJUSTMENTS Hydro Belt Routing & Replacement For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual. Left side hydro Removal Right side hydro Disconnect spark plug wire. Hydro belt Apply parking brake. Engine pulley / Clutch Pivoting idler Remove both hydro fan covers.
-
Page 20: Seat Adjustment
SERVICE & ADJUSTMENTS Seat Adjustment Swisher Response Zero Turn Mowers are equipped with a 4” range sliding seat. Release the tension on the seat adjustment lever by pushing the grey tip lever to the left. SEE FEATURES section in this manual. -
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION Fill fuel tank. Out of fuel. Engine Will Wait several minutes before attempting to Engine flooded. Not Start restart. Bad spark plug. Replace spark plug. Dirty air filter. Clean or replace air filter. Dirty fuel filter. Replace fuel filter. - Page 22 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Cutting too much grass/ too fast. Set in High Cut (position 1)/reduce speed. Loss of Buildup of grass, leaves and trash under Clean underside of mower deck. Power deck. Clean or replace air filter. Dirty air filter. Check oil level/change oil.
-
Page 23: Swisher History
Neighbors noticed his new invention and began asking him to make more. Today, over 65 years later, Swisher is still producing innovative lawn and garden and ATV/UTV equipment designed to give us all more “relaxing in the shade” time. -
Page 24: Mower Identification
All mower parts listed herein may be ordered and may void the warranty. Swisher directly from Swisher or your nearest Swisher disclaims liability for any claims or damages, dealer. All engine parts may be ordered from...
