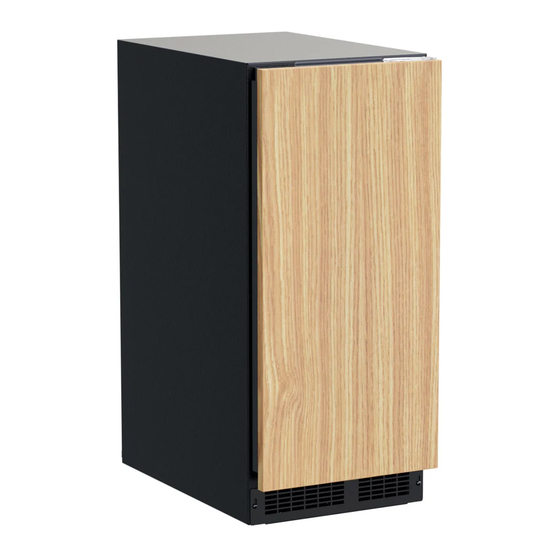

Marvel MPNP415-IS81A Owner's Manual
Hide thumbs
Also See for MPNP415-IS81A:
- Quick reference manual (28 pages) ,
- Quick reference manual (28 pages) ,
- Owner's manual (43 pages)
Related Manuals for Marvel MPNP415-IS81A
Summary of Contents for Marvel MPNP415-IS81A
- Page 1 OWNER’S GUIDE & SERVICE MANUAL M A R V E L U N D E R C O U N T E R R E F R I G E R AT I O N Model: MPNP415-IS81A...
- Page 2 We would love to see how your Marvel product looks in its new home. Send us photos at marketing@marvelre- frigeration.com, and we might feature your Marvel home...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Tip: Click on any section below to jump directly there Safety Control Operation - Service Important Safety Instructions Defrost Remove Fan and Cover Installation Warranty Unpacking Your Appliance Electrical Cutout & Product Dimensions Side-by-Side & Stacking Installations Door Reversal Integrated Panel Dimensions Integrated Panel Installation... -
Page 4: Important Safety Instructions Defrost
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- tions that may occur. Common sense, caution and care must be exercised when installing, maintaining or operating this appliance. -
Page 5: Unpacking Your Appliance
UNPACKING YOUR APPLIANCE CAUTION WARNING If the appliance was shipped, handled or stored in other EXCESSIVE WEIGHT HAZARD than an upright position for any period of time, allow the ap- Use two or more people to move product. pliance to sit upright for a period of at least 24 hours before Failure to do so can result in personal injury. -
Page 6: Electrical
ELECTRICAL Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor- dance with the National Electrical Code and applicable Do not remove local codes and ordinances. -
Page 7: Cutout & Product Dimensions
CUTOUT & PRODUCT DIMENSIONS CUTOUT DIMENSIONS - MPNP415 FRONT PRODUCT DIMENSIONS REAR SIDE... -
Page 8: Side-By-Side & Stacking Installations
SIDE-BY-SIDE AND STACKING INSTALLATIONS Side-by-Side Installation Other Site Requirements Stainless steel models which include the standard stainless Units must operate from separate, properly grounded elec- handle will require 4-9/16" (116 mm) to allow both doors to trical receptacles placed according to each unit's electrical open to 90°... - Page 9 INSTALLING THE ANTI-TIP DEVICE Anti-Tip Bracket Surrounding area (Top view) Use one of the methods below to secure the unit Cabinet/Counter Anti-Tip Installation (For built-in applications) Back of unit Back wall 1. Slide unit out so screws on front of unit are easily accessible.
-
Page 10: Integrated Panel Dimensions
INTEGRATED PANEL DIMENSIONS Integrated Panel Dimensions BACK SURFACE MUST HAVE AMPLE FLAT SURFACE NOTE TO MOUNT OVERLAY PANEL FLAT AND WITHOUT 3/4" INTERFERENCE (20 mm) 14-3/4" (375 mm) 30-1/4" (768 mm) Integrated Panel Preparation Integrated Panel... -
Page 11: Integrated Panel Installation
A robust tape may also be used. 4. Upon removal, lay gasket down on a Marvel recommends the use of bar clamps to secure the panel to Door/Drawer 5. Partially loosen the 3 screws, securing the top hinge to the door. - Page 12 INTEGRATED PANEL INSTALLATION 11. Locate 6 of the #6x 1-1/4" screws provided with your unit. 12. Using a Phillips screwdriver, place one screw into each of the 6 pilot holes and screw down. Do not overtighten screws. 13. Be sure the screws force their way past the opening of the channel.
- Page 13 USING YOUR ELECTRONIC CONTROLS Control Function Guide Function Command Notes ON/OFF Press and release. Unit will immediately turn ON or OFF. Option Open Door Closed Door White White Hold and press and release . Press Adjust light color to scroll through lighting options. BrightShield BrightShield White...
- Page 14 USING YOUR ELECTRONIC CONTROLS BrightShield™...
- Page 15 CAUTION CAUTION FIlter head 3/8" NPT, WARNING...
-
Page 16: Installing The Drain Plumbing
2. Connect to your local plumbing per the local code. CAUTION 3. If necessary, insulate drain line to prevent condensation. If your Marvel unit did not come with a factory installed CAUTION drain pump you must use a gravity style drain connection. - Page 17 INSTALLING THE DRAIN PLUMBING NOTE The maximum lift for the P60 drain pump is 10 feet. This must be done as close to the rear of the unit as possible.
-
Page 18: Ice Maker Operation
This ensures a constant supply of fresh ice is always available. and compact ice nugget. Marvel’s ice adjustability allows ice is soft. To adjust the ice density: setting. - Page 20 Required for cleaning: • Hose and funnel - provided with unit • Bucket and cleaning sponge • Clean potable water • SafeCLEAN Plus™ Cleaner 1-8oz. bottle - Available for purchase from Marvel Need more cleaner? Call Marvel Customer Service at 616.754.5601.
- Page 21 WARNING NOTE...
- Page 22 CAUTION...
- Page 23 EXTENDED NON-USE For questions regarding winterization, please call Marvel at Extended Non-Use 616.754.5601. Vacation/Holiday - Prolonged Shutdown The following steps are recommended for periods of CAUTION extended non-use: 1. Remove all consumable content from the unit. Damage caused by freezing temperatures is not covered by the warranty.
-
Page 24: Obtaining Service
OBTAINING SERVICE If Service is Required: • If the product is within the first year warranty period please contact your dealer or call Marvel Customer Service at 616.754.5601 for directions on how to obtain warranty coverage in your area. •... -
Page 25: Troubleshooting
Service page to locate a Marvel Authorized servicer. If your product Troubleshooting - What to check when problems occur: is in warranty please make sure to register it at www.marvelrefrigeration.com/warranty-registration. - Page 26 If TDS is acceptable, unit must be cleaned and APPENDIX any leakage addressed with a seal kit. (Marvel E11: Sensor in base near fan detecting water service part # 80-55371-13) This sensor is designed to detect water escaping the Area in Front of Sensors (Condenser Side) is Wet product due to any type of malfunction inside the machine.
- Page 27 If unit fills, the float switch is malfunctioning and d. Check compressor operation. needs to be replaced (part # 80-55538-00). • If unit is not cooling or compressor is not If unit is 3 Class product, enter service mode and operating, diagnose and fix system problem.
- Page 28 42378_A 42376_A 42374_A 42373_A 42372_A 42375 _A Evap/Cond fan Evap/Cond fan White light White light White light White light White light Blue light Blue light Light Lights L/T Evap fan Evap temp L/T Evap fan Evap temp Cond. Fan R/B Evap fan Zone temp Zone temp Circ.
-
Page 29: Product Liability
The part that caused the damage must be returned to Marvel in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 30: Warranty Claims
Claims must be submitted online at • Final billing - Remodel www. marvelservice . co m Warranty parts will be shipped at no charge after Marvel • 60 day submittal d eadline from date of completed confirms warranty status. Please provide the model, serial service number, part number and part d escription. -
Page 31: Ordering Replacement Parts
Warranty parts will be shipped at no charge after Marvel confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 32: R600A Specifications
PERSONNEL DO HOT PUNCTURE REFRIGERANT TUBING refrigeration system. RISK Of FIRE OR EXPLOSION. FIAMHA_ B LE REFRIGERANT USED. CONSULT Never substitute Marvel OEM replacement parts REPAIR IIANUAVOWHER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS HUST BE FOUOWEO. - Page 33 R-600A SPECIFICATIONS/LABELING WARNING R-600a equipped products are labeled (both the unit and the compressor). Only skilled and well trained service technicians permitted to service R-600a equipped products. R-600a is colorless and odorless. All tools and equipment must be approved for use with R-600a refrigerant.
- Page 34 Evacuate/reclaim via the piecing pliers to ensure the When re-brazing, the system must be purged with dry system is empty of R-600a before any system work is nitrogen and at least one access point open to the performed. atmosphere. When re-brazing, proper ventilation is required along with constant monitoring for the presence of R600a refrigerant.
- Page 35 The low side of the refrigeration system (evaporator, Proper ventilation during service is required. compressor and suction line) must be leak tested with the compressor off (equalized pressure). Never apply a torch to a charged R-600a refrigeration system. RECHARGING No air is ever to be allowed inside the refrigeration system Use OEM replacement service parts and do not alter the (R-600a refrigerant or dry nitrogen only).
-
Page 36: System Diagnosis Guide
System Diagnosis Guide REGRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly Very hot Very hot Warm Cold Normal below room temperature Overcharge Higher than Very cold Slightly warm Hot to warm Cool Cold... - Page 37 Control Operation-Service CONTROL FUNCTION GUIDE FUNCTION COMMAND DISPLAY/ OPTIONS UI BUTTON LAYOUT Unit will immediately Press � and release ON/OFF turn ON or OFF Sabbath Mode See "Sabbath Mode" section Hidden Button SHOWROOM MODE -Access Service Menu This mode is designed to show units in a display -No LED directly above.
- Page 38 Defrost This unit defrosts every 4 hours of compressor runtime for 45 minutes. If you have verified that the unit does not have an ambient air leak, utilize the Control Operation - Service section and adjust unit to defrost every 3 hours for 60 minutes.
- Page 39 Remove Fan and Cover Remove insulating foam from refrigerant line pass- through hole as needed to gain clearance for fan plug. CONVECTION COOLING Remove internal shelving. This unit is equipped with an advanced convection cooling system. Convection cooling stabilizes cabinet temperature, Remove evaporator cover screws.
- Page 40 NOTICE Fan must be oriented to pull air in through lower evaporator cover vents and push air out at fan mounting location. 13. Installation is the reverse of removal. 14. Care must be taken to assure the bottom of the evaporator cover is reinstalled behind the front edge of the train trough.
- Page 41 For designated Marvel Professional product, Marvel offers a one year extension of the two year warranty coverage from the date of purchase, free of charge. To take advantage of this third year warranty, you must register your product with Marvel within 60 days from the date of purchase at marvelrefrigeration.com and provide proof of purchase.
- Page 42 Marvel Refrigeration 1260 E. Van Deinse St. Greenville MI 48838 616.754.5601 41015651 Rev A All specifications and product designs subject to change without notice. Such revisions do not entitle 12/14/20 the buyer to corresponding changes, improvements, additions, replacements or compensation for...
