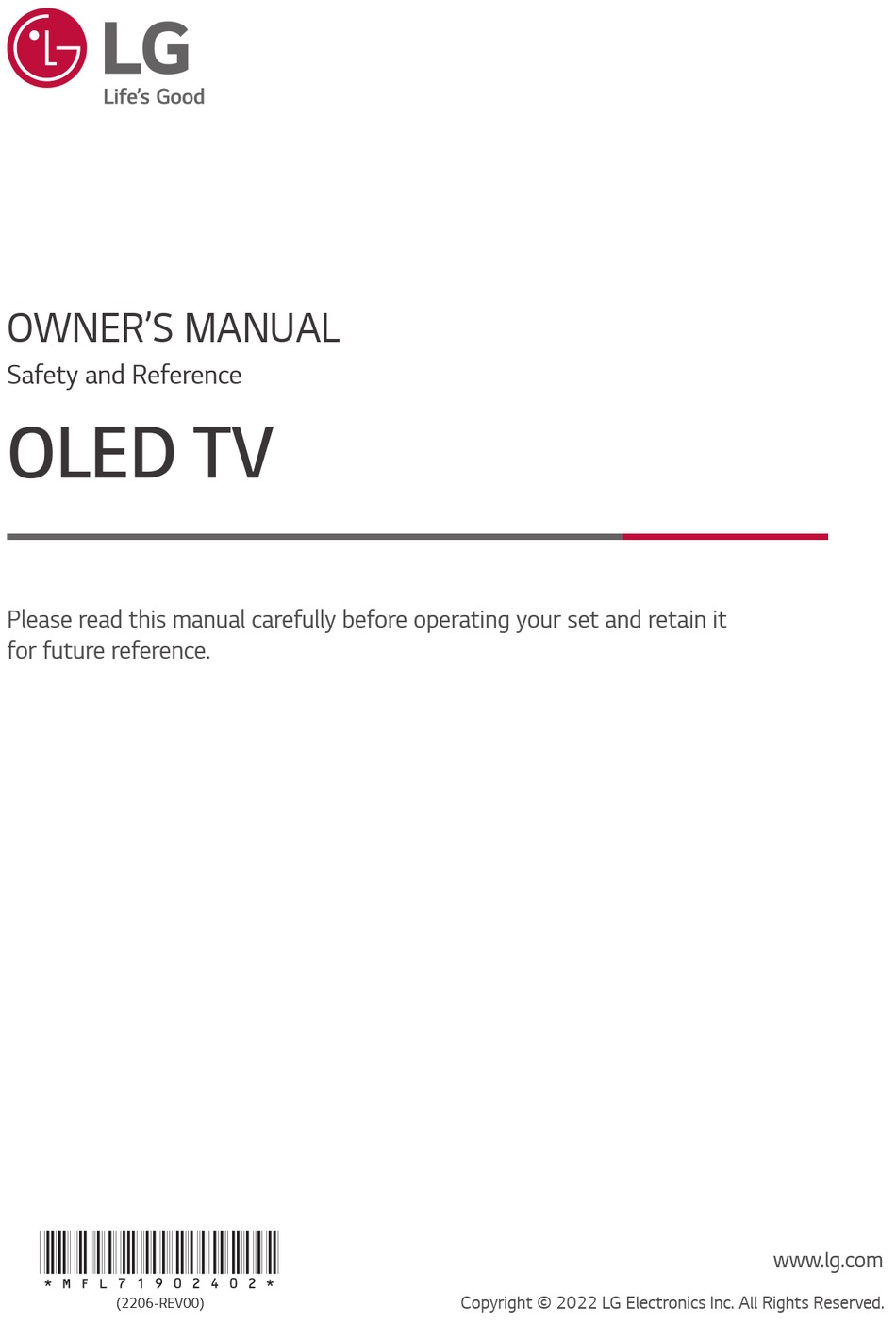

- Page 1 OWNER’S MANUAL Safety and Reference OLED TV Please read this manual carefully before operating your set and retain it for future reference. *MFL71902402* www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved. (2206-REV00)
-
Page 2: Table Of Contents
Table of Contents Warning! Safety Instructions Troubleshooting Preparing Specifications 18 HDMI-DTV supported mode Separate Purchase 18 HDMI-PC supported Mode 5 LED Clock 19 Supported Photo Formats 5 Magic Remote Control 19 Supported Audio Formats 6 Wall Mounting Bracket 20 Supported Video Formats Lifting and moving the TV Open Source Software Notice Information Mounting on a Table... -
Page 3: Warning! Safety Instructions
Warning! Safety • Ventilation - Install your TV where there is proper ventilation. Do not install in a Instructions confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in. - Page 4 Unauthorised modification could void the user’s authority to operate this product. • Use only an authorised attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
-
Page 5: Preparing
Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes. -
Page 6: Wall Mounting Bracket
Lifting and moving the TV Wall Mounting Bracket Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in Please note the following advice to prevent the TV from being scratched the following table. -
Page 7: Mounting On A Table
Mounting on a Table • When transporting the TV, do not expose the TV to jolts or excessive vibration. • When transporting the TV, keep the TV upright, never turn the TV on (Depending on model) its side or tilt towards the left or right. 1 Lift and tilt the TV into its upright position on a table. -
Page 8: Securing The Tv To A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 9: Connections
Connections • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model) Connect various external devices to the TV and switch input modes to select an external device. -
Page 10: Other Connections
Other connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, Connect your TV to external devices. For the best picture and audio VCRs, audio systems, USB storage devices, PC, gaming devices, and quality, connect the external device and the TV with the HDMI cable. other external devices. -
Page 11: External Speakers
External Speakers Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Each up/down pins are connected to CPU with pull up resistor respectively. EXTERNAL SPEAKER OUT / UP / DOWN CPU detects STEREO transition from 3.3 V (8 ) level for volume control. -
Page 12: Network
Using Button Network (Depending on model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication. -
Page 13: Using Remote Control
Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. The descriptions in this manual are based on the buttons on the remote (INPUT) Changes the input source. control. -
Page 14: Registering Magic Remote Control
Troubleshooting Registering Magic Remote Control How to register the Magic Remote Control The software version can be updated for improvement in performance. To use the Magic Remote, first pair it with your TV. Customer needs to ensure the compatibility of customer’s equipment with LGE software. - Page 15 Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (white, red, blue or green) at a size of 1 ppm on the panel.
-
Page 16: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-S/S2 PAL/SECAM B/G, D/K, I Television system DVB-T/T2 SECAM L DVB-C DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 MHz Channel coverage UHF IV: 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2,150 MHz 46 ~ 890 MHz... - Page 17 Wireless module (LGSBWAC95) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 19 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 13.5 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 9 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
-
Page 18: Hdmi-Dtv Supported Mode
HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution 31.50 60.00 Frequency (kHz) Frequency (Hz) 31.46... -
Page 19: Supported Photo Formats
Supported Photo Formats Supported Audio Formats File File Format Resolution Item Info Format Format Minimum: 64 (W) x 64 (H) Bit rate 32 Kbps - 320 Kbps .jpeg Maximum (Normal Type): 15360 (W) x Sample freq. 16 kHz - 48 kHz .mp3 .jpg JPEG 8640 (H) Support MPEG1, MPEG2 .jpe Maximum (Progressive Type): 1920 (W) Channels... -
Page 20: Supported Video Formats
• ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content Extension Codec officially provided by LG Electronics may not be played. VC-1 Advanced Profile (except for • Some codecs can be supported after a software upgrade. Video WMVA), VC-1 Simple and Main Profiles .asf... -
Page 21: Open Source Software Notice Information
Dolby Laboratories Licensing Corporation. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners. -
Page 22: Precautions For Protecting The Oled Tv Screen
Precautions for Protecting Running [Pixel Cleaning] to Protect the OLED TV Screen the OLED TV Screen The OLED TV is equipped with a pixel cleaning feature to check the status of the screen by itself and prevent image retention that leaves Unlike regular LED/LCDs, OLED TVs produce images that emit light for an image on a screen. -
Page 23: Ir Codes
IR Codes • This feature is not available for all models. Code (Hexa) Function Code (Hexa) Function (POWER) (INPUT) Number Key 1-9 11-19 (HOME) (Screen Remote) (Voice recognition) Number Key 0 (RED) (GREEN) (YELLOW) (MUTE) (BLUE) Wheel (UP) Wheel (DOWN) (Q. -
Page 24: External Control Device Setup
External Control Device ►B Type Setup RS-232C IN (CONTROL & SERVICE) RS-232C Setup (Depending on model) • Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. -
Page 25: Rs-232C Configurations
RS-232C Configurations Communication Parameters • Baud rate: 9,600 bps (UART) 7-Wire Configurations • Data length: 8 bits (Standard RS-232C cable) • Parity: None • Stop bit: 1 bit • Communication code: ASCII code • Use a crossed (reverse) cable. Set ID For [Set ID] number, see "Real data mapping". -
Page 26: Command Reference List
Command Reference List Data Command1 Command2 (Hexadecimal) (Depending on model) 24 Fail Over Mode (See p. 33) Data Command1 Command2 25 Fail Over Input (Hexadecimal) (See p. 33) Select 1 Power 00 to 01 26 Internal 2 Aspect Ratio (See p. 27) storage media n, a8 (See p. -
Page 27: Transmission / Receiving Protocol
Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission (k)(a)( )(Set ID)( )(Data)(Cr) (Command1)(Command2)( )(Set ID)( )(Data)(Cr) Data 00 : Off (Command1) : First command to control the TV. (j, k, m or x) Data 01 : On (Command2) : Second command to control the TV. - Page 28 3 Screen Mute (Command: k d) 6 Contrast (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission (k)(d)( )(Set ID)( )(Data)(Cr) (k)(g)( )(Set ID)( )(Data)(Cr) Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : Screen mute on (Picture off) Data Min : 00 to Max : 64 Data 10 : Video mute on...
- Page 29 9 Tint (Command: k j) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen tint. ►To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission (k)(m)( )(Set ID)( )(Data)(Cr) (k)(j)( )(Set ID)( )(Data)(Cr)
- Page 30 15 Energy Saving (Command: j q) 17 Equalizer (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission (j)(v)( )(Set ID)( )(Data)(Cr) (j)(q)( )(Set ID)( )(Data)(Cr) Power Saving Level Function...
- Page 31 18 Tune Command (Command: m a) 19 Programme Skip / Add (Command: m b) ►Select channel to following physical number. ►To set skip status for the current Programme. Transmission Transmission (m)(a)( )(Set ID)( )(Data 00)( )(Data 01)( )(Data 02)(Cr) (m)(b)( )(Set ID)( )(Data)(Cr) Data 00 : High channel data Data 00 : Skip Data 01 : Low channel data...
- Page 32 22 Input select (Command: x b) (Main Picture Input) 23 Programme block/unblock (Command: m d) ►To select input source for main picture. ►This command may work differently depending on model and signal. Transmission (x)(b)( )(Set ID)( )(Data)(Cr) (For South Korea, North/Latin America except Colombia Model) Data Structure Transmission (m)(d)( )(Set ID)( )(Data 00)( )(Data 01)( )(Data 02)(Data 03)(Data 04)
- Page 33 (For all other regions including Colombia, Excluding the above 24 Fail Over Mode (Command: m i) countries) ►Selects the Fail Over mode. Transmission Transmission (m)(d)( )(Set ID)( )(Data 00)( )(Data 01)( )(Data 02)(Data 03)(Data (m)(i)( )(Set ID)( )(Data)(Cr) 04)(Cr) Data 00 : Off (Data 00) : Physical Channel Number Data 01 : Auto (Data 01)(Data 02) : Channel Data...
- Page 34 26 Internal storage media contents play (Command: s n, a8) * Real data mapping ►Plays media stored in the internal memory. 00 : Step 0 ►This command may work differently depending on model and signal. Step 10 (Set ID 10) Transmission Step 15 (Set ID 15) (s)(n)( )(Set ID)( )(a)(8)( )(Data)(Cr)
