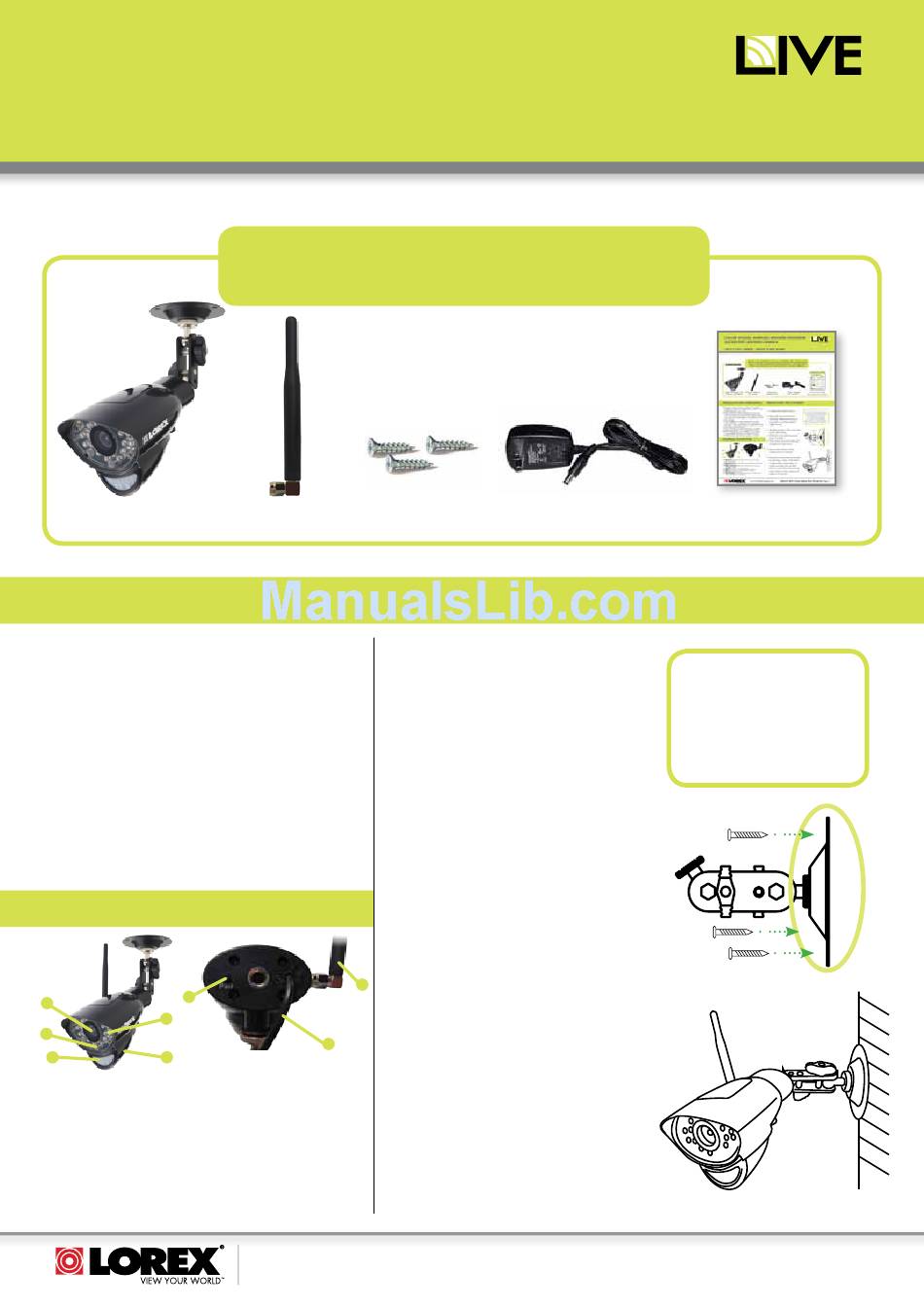

Lorex LW2711AC1 Quick Start Manual

DIGItAL WIReLeSS InDooR/oUtDooR
ACCeSSoRy MotIon CAMeRA
LW2711AC1 SeRIeS - QUICk StARt GUIDe
ContentS:
Digital Wireless Color
Camera with Stand

InStALLAtIon WARnInGS

• Mount the camera indoors or outdoors. For outdoor
installation, mount it in a sheltered place where it is not
directly exposed to rain or snow.
• Aim the Cameras to best optimize the viewing area:
Select a location for the camera that provides a clear
view of the area you want to monitor, which is free from
dust, and is not in line-of-sight to a strong light source or
direct sunlight.
• Avoid installing the cameras where there are thick
walls, obstructions, or interference (i.e. transformers,
microwave ovens or other electrical equipment) between
the Cameras and the Receiver.
• Select a location for the camera that has an ambient
temperature between 14°F~122°F (-10°C~50°C)
• Before starting permanent installation, have another
person hold the camera for you while you verify its
performance by observing the image on a monitor.

CAMeRA oVeRVIeW

6
3
4
2
1 5
1. PIR Sensor: Passive IR motion sensor for more accurate
motion detection.
2. Microphone: Built-in microphone for listening in.
3. Camera Lens
4. night Vision IRs: For viewing in complete darkness.
5. Speaker: For two-way audio.
6. Pairing Button: See manual for more details.
7. Antenna: Detachable antenna.
8. Power Cable
Before you install the camera, carefully plan where and
how it will be positioned, and where you will route the
cable that connects the camera to the power adaptor.
Wireless Antenna
for camera Hardware Kit

InStALLInG tHe CAMeRA

1. Carefully unpack the Camera.
2. Mount the stand to the wall or
• Mark the position of the screw holes
• Drill holes and insert the drywall
• Firmly attach the stand to the wall
7
3. Screw on the Antenna to the
8
4. Screw the camera to the stand by
www.lorextechnology.com
Mounting Power Adaptor
for camera*
ceiling (for ceiling mounting you
may need to move the antenna
sightly down):
on the wall/ceiling.
plugs as needed.
using the provided screws.
Camera prior to mounting.
attaching it either at the bottom or
back of the camera. For ceiling
mounting attach to the back thread.
Loosen the thumbscrews to adjust
position of the camera and tighten
to fix position.
LW2711AC1 Series Quick Start Guide_R1
SIMPLY AWARE
Quick Start Guide
*May not be exactly as shown
NOTE: AVOID INSTALLING IN A
LOCATION WHICH REQUIRES
THE WIRELESS SIGNAL TO
PASS THROUGH CEMENT,
CONCRETE AND METAL
STRUCTURES. THIS WILL REDUCE
THE TRANSMISSION RANGE.
Page 1
™
