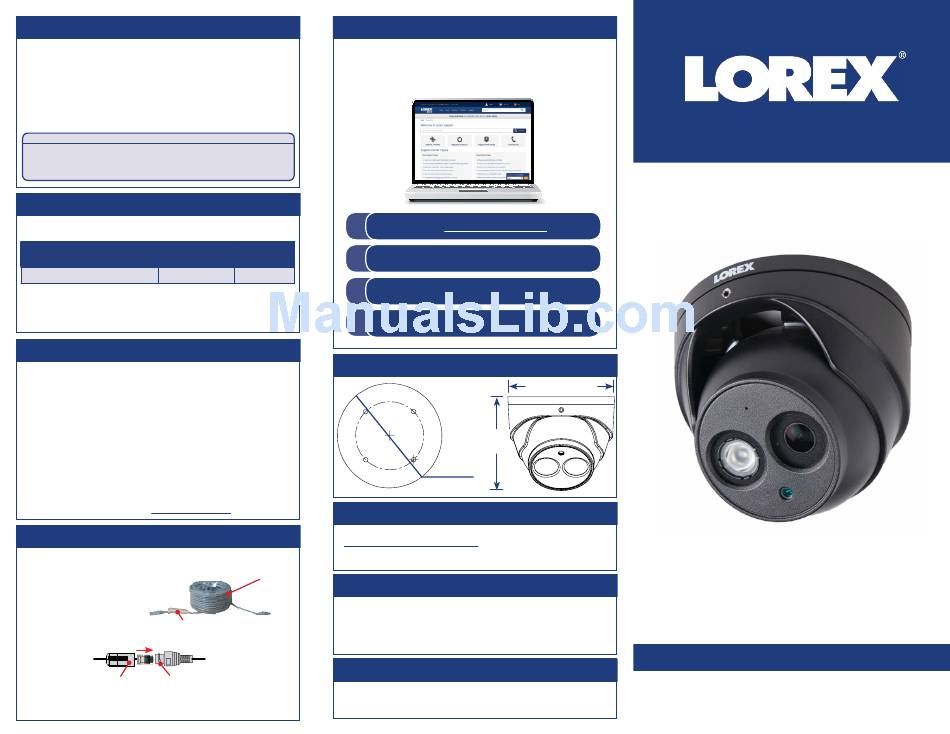

Lorex LNE8950A SERIES Quick Start Manual

Package Contents
• 4K HD IP Dome Security Camera
• Mounting Kit*
• Mounting Template*
• CAT5e Ethernet Extension Cable with Pre-attached
RJ45 Cable Gland*
• Allen Key*
* Per camera in multi-camera packs.
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE switch. If
using a DC power adapter (not included) with the camera, a REGULATED power supply
is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power
supply can damage this product and voids the warranty.
Cable Extension Options
Extend the cable run for your camera. Additional extension cables sold
separately. See table below:
Max Cable Run
Cable Type
Distance
CAT5e (or higher) Ethernet cable 300ft (92m)
• You can use a RJ45 coupler or switch (not included) to connect male
ends of Ethernet cable together.
• To extend the cable run beyond 300ft (92m), a switch will be required
(sold separately).
Safety Precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only the supplied regulated power supply provided with the
product. Use of a non-regulated, non-conforming power supply can
damage the product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
any harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and floor-to-floor installations are sold separately (CMR type). These
and other cables are available at lorextechnology.com
Using the RJ45 Cable Gland (Optional)
The RJ45 cable gland covers the camera's Ethernet connector and the RJ45 plug to
provide weather-resistance and protection from dust, dirt and other environmental
contaminants.
The RJ45 cable gland is pre-attached to the
included CAT5e ethernet extension cable.
RJ45 Cable Gland
To use the RJ45 cable gland:
Twist the RJ45 cable gland barrel securely onto the camera Ethernet connector.
RJ45 Cable Camera Ethernet
Gland Barrel Connector
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or
electrical tape for additional sealing if it will be exposed to precipitation regularly.
Resources

Need Help?

Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorextechnology.com
Max # of
Search for the model number
2
Extensions
3
Click on your product in the
3
4
Click on the Downloads tab
Dimensions
Disclaimers
• For a full list of compatible recorders, visit
lorextechnology.com/compatibility
• Not intended for submersion in water. Installation in a sheltered
location recommended.
CAT5e Installation Tips
Ethernet
Extension
Cable
• Point the camera where there is the least amount of obstructions
(i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is
recommended.
Copyright © 2017 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right
to modify product design, specifications and prices, without notice and without
incurring any obligation. E&OE. All rights reserved.
of your product
search results
4.2" / 106mm
3.2" /
82mm
4.2" /
106mm
LNE8950A_QSG_EN_R1

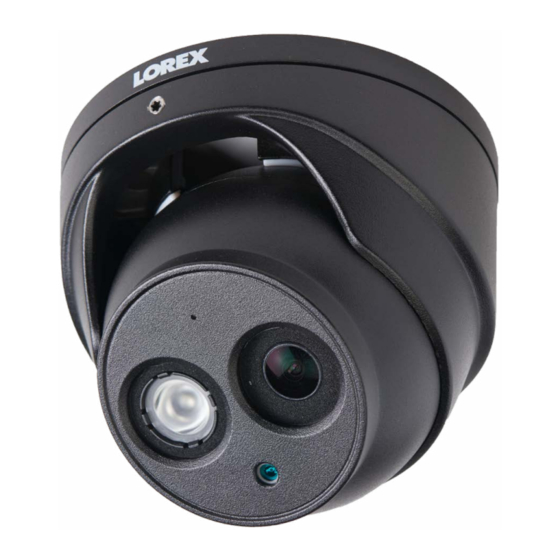

4K HD IP Dome Security Camera
with Audio

Quick Start Guide

English Version 1.0
