Installing the Battery

(1) Turn the battery compartment knob counterclockwise to open
the battery compartment cover;
(2) Install the battery by strictly following the indicative direction of
the negative and positive poles on the battery compartment cover
(with negative and positive pole indication at the place of battery
installation);
(3) Close the battery compartment cover, and turn the battery
compartment knob clockwise until it is locked up.
Note: 1. Please do not use the battery whose insulating layer is
damaged; 2. If the battery's positive and negative poles are
wrongly connected, the device will be unable to work, and that will
damage the battery.
4

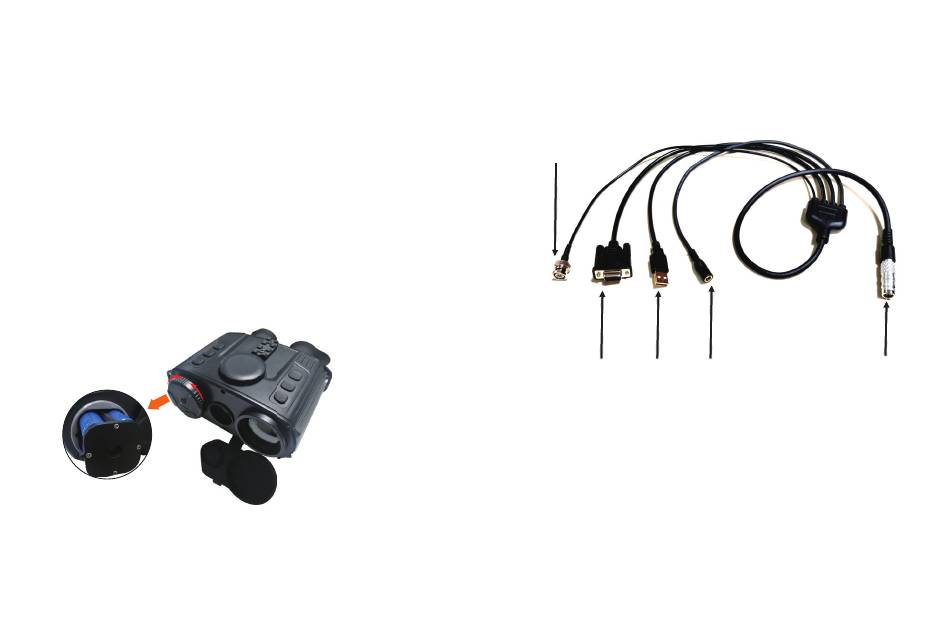

Description of the Connecting Wires

For the data cord attached with the device, connect one end to the
device's aviation jack, with the other end to be plugged into the
corresponding jack as required.
CVBS output plug
RS 232 plug USD plug DC 12V output plug Aviation jack
