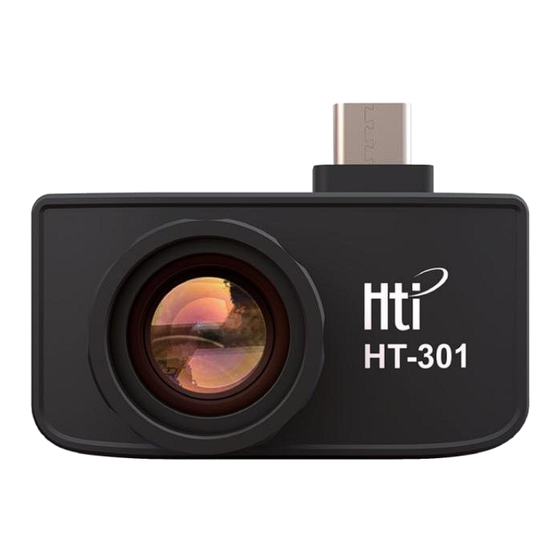

- Page 1 Smart Mobile Phone Thermal Imager User Manual HT-301 Version No. V1.0 Revision date: September 7, 2019...
-
Page 2: Table Of Contents
4.1. Equipment connection 2 2.1. Application scene 4.2 Software operation 3 To use HT-301 smart mobile phone thermal imager, it is necessary 4.2.1 Gallery, camera and recording 3 for your mobile phone to download and install Android mobile 4.2.2 Shutter 3 phone software for thermal imager and achieve infrared observation 4.2.3 Temperature measurement analysis 4... -
Page 3: Software Installation
4.2 Software operation 3. Software installation Scan the following two-dimensional code Temperature to download application software and Gallery measuring analysis install it. Pallet Recording Temperature Camera measuring device Shutter Other setting 4. Product use 4.2.1 Gallery, camera and recording 4.1. Equipment connection: insert the infrared thermal imager into USB interface of the mobile phone and it will identify USB equipment (1). -
Page 4: Temperature Measurement Analysis
4.2.3 Temperature measurement analysis 3). Regional temperature measurement analysis : Use fingers to drag Click button to pop out option of temperature measurement. and draw rectangle on the screen and it will make analysis for the highest and lowest temperature in the rectangular area and identify Point temperature measurement relevant information as the following diagram: Linear temperature measurement... -
Page 5: Temperature Measurements Setting
The display effect of 6 types of pallets is as follows: Rainbow Iron gray 4.2.5 Temperature measurements setting White hot Black hot Click “ ” button to pop out temperature measurement setting interface. Iron rainbow Rainbow_HC 1) Correction: Correct the error of temperature measurement; 2) Reflection: The temperature of surrounding objects reflected on the target object.3) Amb temp: The environmental temperature of the target object;4) Humidity: The atmospheric temperature of the target... -
Page 6: Other Settings
4.2.6 Other settings Click the “ ” button to pop out the setting interface 1) Temperature units: Select Fahrenheit degree or degree centigrade; 2) Temperature Range: The infrared thermal imager supports two temperature measurement scopes of - 20℃-120℃ and -20℃-400℃ 3) Local Camera: you may select to open and close the mobile phone camera;...
