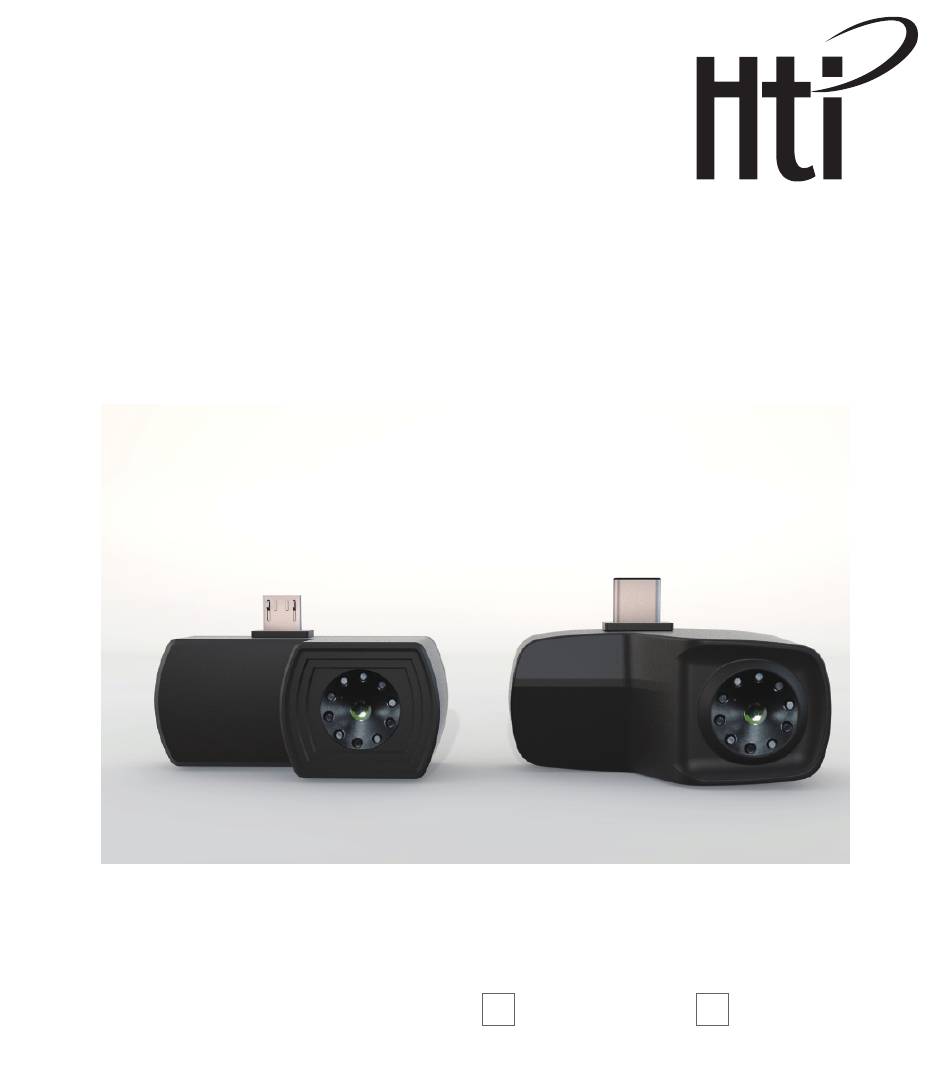

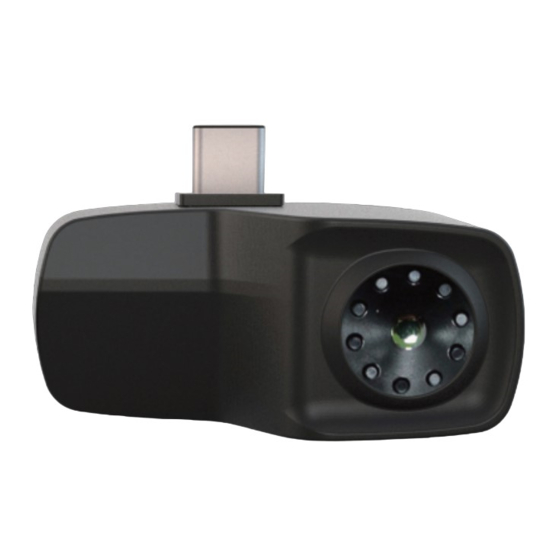

- Page 1 Mobile Phone Thermal Imager Instruction Manual April 18, 2019 Revision number: 1.0 HT-101 HT-201...
-
Page 2: Use Of The Product
Overview The product is connected through mobile phone and is operated on the mobile phone through “Ht-Xintai” software. It is very easy to check infrared images and measure surface temperature of objects. The product may be used for heating and ventilation air conditioner and building heat difference test, equipment fault removal, preventive and predictive mainte- nance, etc. - Page 3 2. Connect the mobile phone to open application software of the product and insert thermal imager into the mobile phone. The dialogue box pops out when the mobile phone is used to connect the thermal imager. Check “used for the USB equipment at default condition”.
- Page 4 Introduction to software interface Manufacturer LOGO color palette Imaging area Function bar slide the function bar left and right to display concealing function of software.
- Page 5 Introduction software function Media library: Check image and video. Photographing: Click to make photo. Video recording: Click to begin recording. Color palette: May select white hot, black hot, iron red, rainbow, north pole and lava. Effect picture of color palette White hot Black hot Iron red...
- Page 6 Rainbow north pole lava Normal mode: Restore to default infrared imagery Normal observation mode. Cursor mode: Display the cursor of the central point, temperature point of prevision positioning. High/low temperature snap mode: Snap the lowest and Full frame mode: Display multiple temperature data. Visible light+ Infra-Red Mode: The visible light images and infrared images are displayed side by side.
-
Page 7: Fault And Solution
2. Switch off the thermal imager and connect it with mobile phone again. 3. Check your mobile phone setting, set the mobile phone as “external power supply”. Technical parameters Model HT-201 HT-101 Resolution 220x160 320x240 Temperature range -40℃ to 330℃ -40℃ to 330℃... - Page 8 Image format Video format Frame rate Focusing mode Fixed Detection scope 300m When one object is found in the field of view, Detection the image of the object must occupy more definition than 1.5 pixel in the directionof critical size. Shortest focal 0.15m length...
- Page 9 Scan QR code to download and install APP Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No. 22 Yuhua Street, Hongye Industrial Zone, Tangxia Town, Dongguan City, Guangdong Province Postcode:523710 Tel:+86-769-82612006 Fax:+86-769-82612005 Website:www.hytechcn.com.cn www.xintest.com.cn www.xintest.en.alibaba.com...
