- Page 1 Quick installation guide Conveyor system MB-flex Q stainless steel...
- Page 2 GmbH. Subject to modification. … regarding this documentation or the system are to be sent to the address Suggestions and comments above. Last modification 14.11.2022 Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx...
-
Page 3: Table Of Contents
Maintenance ......................17 Lubrication ..........................17 Maintenance plan ........................18 Maintenance log ........................20 Repair ........................... 20 5.4.1 Conveyor chain: Repair or adjust the chain tension ..........21 Table of figures ..................... 23 Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 4: Reader Information
Infringement will lead to compensation for damages. Rights reserved for further claims. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 5: Safety
These instructions should be repeated at appropriate intervals. ▪ Instruct the utilized personnel on handling the conveyor system. ▪ Equip the utilized personnel with the required protective equipment and check that it is worn at all times. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 6: Instruction Of The Personnel
Qualified specialist personnel are persons who have obtained and proven special experience, knowledge and skills for the safe performance of tasks in particular specialist areas (e. g. mechanical, pneumatic, hydraulic, electrical) and who fulfil the following defined requirements. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 7: Electricians
The protective enclosure/cover protects the operator and other persons from injuries caused by danger points inside the enclosure/cover. The owner is responsible for equipping the system with a protective enclosure/cover. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 8: Spare Parts And Their Purchase
Spare parts and accessories can be ordered directly from the manufacturer via the following contact. Spare parts: Contact Designation Specification Company euroflex GmbH Street no. Hohe-Flum-Straße 62 Postcode, place 79650 Schopfheim Country Germany Telephone +49 (0) 7622/68453-00 +49 (0) 7622/68453-01 Email info@euroflexgmbh.de Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 9: Assembly

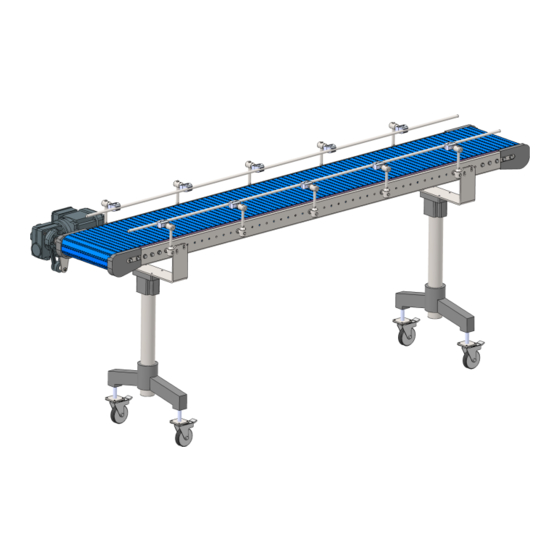

Assembly the chain guide profiles and slide profiles on the modular belt conveyor (Page 10) ▪ Assembling the modular chain belt (Page 14) Overview of MB-flex O stainless steel Fig. 1: Overview of MB-flex O stainless steel (example) Legend Designation Modular chain belt Side guide Support Motor Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 10: Assembly The Chain Guide Profiles And Slide Profiles On The Modular Belt Conveyor
2. Fit the slide profiles (2) onto the top of the holding profiles. Fig. 2: Assembly the chain guide profiles and slide profiles on the modular belt conveyor Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 11: Assembly The Chain Guide Profiles Onto The Bottom Chassis Profiles
(viewed in running direction). 14. At the end of the conveyor, mount the chain guide profile flush with the drive. Fig. 3: Assembly of the chain guide profiles onto the bottom chassis profiles Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 12: Assembly The Slide Profiles On The Modular Belt Conveyor
10. Cut the slide profile straight at the end of the holding profile ( viewed in running direction) and press it on flush. 11. Gently deburr the butt ends. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... - Page 13 (viewed in running direction). 21. At the end of the conveyor, mount the slide profile flush with the drive. Fig. 4: Assembly the slide profiles on the modular belt conveyor Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx...
-
Page 14: Assembling The Modular Chain Belt
5. Join the chain ends together. 6. Insert the connecting rod (1) (locking bead last) and knock it in carefully. Fig. 5: Assembling the modular chain belt Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 15: Cleaning
Cleaning products containing chlorine, ammoniac, phosphoric acid or their compounds ▪ Abrasive cleaning products ▪ Solutions with a pH value below 4.5 or above 9 ▪ Water under high pressure ▪ Water with temperatures above 40°C Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 16: Preparation
3. Remove contamination with cleaning agents. 4. Rinse off solution with water under low pressure. 5. Rub surface to dry it. ✓ Ready. Contact euroflex GmbH for instructions on cleaning any further contaminants. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 17: Maintenance
Every time after cleaning! Drive station, Spray! Deflection, Silicone spray Sliding bend, NSF H1 Every time after cleaning! Bending wheel Details on lubrication and maintenance see manufacturer of the Gear motor (Drive motor) gearmotor Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 18: Maintenance Plan
Use of non-original spare parts can lead to defects in the conveyance goods, operational malfunctions, loss of safety functions and damage to or destruction of components. » Only replace components with original spare parts from euroflex GmbH. General Assembly and maintenance work... - Page 19 Roller chain at the check for damage and wear Maintenance personnel drive station thereafter every 500 Sprocket wheel on check for damage and wear 1,000 (quarterly) Maintenance personnel roller chain replace Replace if required Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx...
-
Page 20: Maintenance Log
In case of repairs at the conveyor system, the customer service will help (see page 4: Customer service). Spare parts can be ordered directly from the manufacturer (see page 8: Spare parts and their purchase). Personnel Specification Designation Personnel Maintenance personnel Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... -
Page 21: Conveyor Chain: Repair Or Adjust The Chain Tension
If an uneven running or ambient noise occurs, it is necessary to shorten the chain belt. Select the chain length so that the contraction of the chain ends is done with little effort. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx... - Page 22 Fig. 6: Adjust modular belt chain 3. Remove corresponding chain links or insert new chain links. 4. Join the chain ends together again. 5. Insert new connecting rod (1) (locking bead last) and knock in carefully. ✓ Ready. Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx...
-
Page 23: Table Of Figures
Fig. 3: Assembly of the chain guide profiles onto the bottom chassis profiles ......... 11 Fig. 4: Assembly the slide profiles on the modular belt conveyor ............. 13 Fig. 5: Assembling the modular chain belt ..................14 Fig. 6: Adjust modular belt chain ....................... 22 Quick installation guide_Conveyor system MB-flex Q N_20221114_EN.docx...
