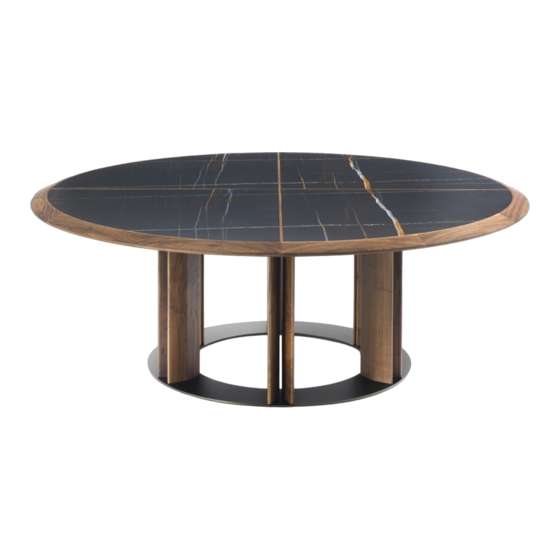

THAYL 160/ 200/ 250
Design: G. & O. Buratti
Istruzioni di montaggio
Assembly-instruction
1.
Avvitare le 12 viti a testa svasata per fissare il sotto piano alle gambe del tavolo.
Fasten the 12 countersunk screws to fix the undertop on the table legs.
2.
Avvitare le 8 viti a testa bombata per fissare il mezzo piano al sotto piano del tavolo.
Fasten the 8 button head screws to fix the half top on the table undertop.
x12
x8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THAYL 160 and is the answer not in the manual?

Questions and answers

Summary of Contents for porada THAYL 160

  • Page 1 THAYL 160/ 200/ 250 Design: G. & O. Buratti Istruzioni di montaggio Assembly-instruction Avvitare le 12 viti a testa svasata per fissare il sotto piano alle gambe del tavolo. Fasten the 12 countersunk screws to fix the undertop on the table legs.
  • Page 2 Avvitare i 4 perni in metallo nei 4 fori (indicati in giallo nel disegno) in modo che i 2 fori del perno siano rivolti verso l’alto. Screw the 4 metal pins into the corresponding holes (in yellow) so that the pins holes (in green) are facing up. Avvitare i 4 grani nei 4 perni inseriti nei fori nel passaggio 3.
  • Page 3 Inserire le 4 spine in legno nei 4 fori (indicati in giallo nel disegno). Insert the wooden dowel pins into the 4 holes (in yellow). Agganciare l’altra metà del piano. Attach the other half of the top.
  • Page 4 Fasten the 8 button head screws to fix the half top on the table undertop. PORADA Arredi s.r.l. - 22060 Cabiate (Como) Italia - Loc. Porada - via B. Buozzi, 2 - Tel. +39 031 766215 - Fax +39 031 768386 - info@porada.it - www.porada.it...

This manual is also suitable for:

Thayl 200Thayl 250
