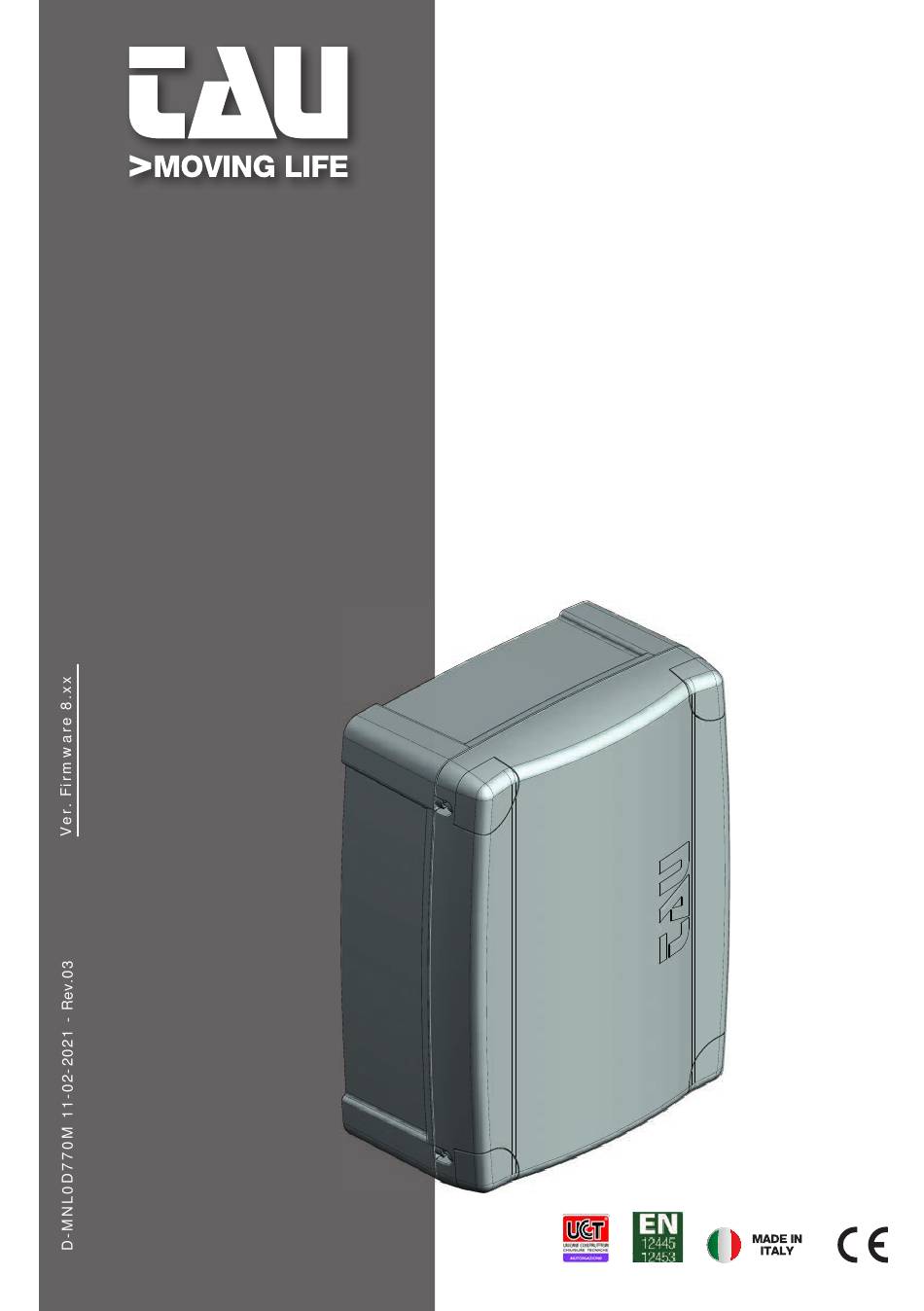

- Page 1 MANUALE D’USO E INSTALLAZIONE USE AND INSTALLATION MANUAL BENUTZUNGS- UND INSTALLATIONSANLEITUNG MANUEL D’EMPLOI ET INSTALLATION MANUAL DE USO E INSTALACIÓN D770M...
- Page 2 SCHEMA CABLAGGIO D770M / D770M WIRING DIAGRAM / SCHALTPLAN DER D770M...
- Page 3 SCHÉMA CÂBLAGE D770M / ESQUEMA DEL CABLEADO D770M / ESQUEMA ELÉCTRICO D770M Common External photocell (N.C.) Internal photocell (N.C) Sensitive edge Stop Common Open Common Close Open Common O/C =Open/Close Close Ped = Pedestrian Cap = Capacitor TX = Transmitter RX = Receiver E.L.
-
Page 4: Installation
This manual has been especially written for use by qualifi ed fitters. No information given in this manual can be considered as being of interest to end users. This manual is enclosed with control unit D770M and may therefore not be used for different products! Important information: Disconnect the panel from the power supply before opening it. -
Page 5: Technical Characteristics
• COMPATIBILITY WITH OUR APPS: TAUOPEN AND TAUAPP ATTENTION: do not use single cables (with one single wire), ex. telephone cables, in order to avoid break- downs of the line and false contacts; do not re-use old pre-existing cables. In case of long sections of cables (> 20 m) for N.O./N.C. controls (e.g. OPEN / CLOSE, STOP, PEDESTRIAN, etc.), in order to avoid gate malfunctions, it will be necessary to uncouple the various controls using RELAYS or using our 750T-RELE device. - Page 6 WARNING: with dip 10 to ON the input switches CLOSE: automation close as long as the button is held down. On his release, the automation stops. STOP button input (normally closed contact); this stops the automatic 10 - 13 STOP system.
-
Page 7: Dip Switch
5. LOGIC ADJUSTMENTS TRIMMER Second motor delay adjustment: during closing cycle from approx. 0 to 30 sec. (on top of the time that the card calculates automatically during the SETUP procedure); during opening from approx. 0 to 6 sec (on top of the time that the card calculates automati- cally during the SETUP procedure). - Page 8 Operation of the electric lock for the entire opening and closing time ELECTRIC LOCK Impulsive operation of the electric lock: at each opening, the electric lock OPERATION works for a short moment. RESISTIVE SENSITIVE EDGE (terminal no. 15) SENSITIVE EDGE RESISTIVE EDGE - potential free contact N.C.
- Page 9 6 Press AP/CH button or the remote control: the leaf #1 will close at standard speed; 7 When the leaf is completely closed press AP/CH button or the remote control (leaf #1 programming completed); 8 The green led DL7 will flash every 4 sec. (programming completed and saved). DIP 8 ON (1 motor operation) - DIP 9 SINGLE SWING GATE - in OFF (Soft-Stop function disabled):...
-
Page 10: Memory Capacity
6_ to exit the learning mode without memorising a code, press button P1 or P2 briefly. MEMORY CAPACITY The code memory capacity* of the D770M can be expanded from 30 to 126, 254 or 1022 codes (transmit- ters) by replacing the memory cards as follows (plug them onto J4 connector, see wiring diagram): codes Art. - Page 11 Invert the motor connections on the terminal block (terminals 4 and 6 for motor 1; terminals 7 and 9 for motor 2); 12. GUARANTEE: GENERAL CONDITIONS TAU guarantees this product for a period of 24 months from the date of purchase (as proved by the sales...
- Page 12 This guarantee covers the repair or replacement at TAU’s expense (ex-works TAU: packing and transport at the customer’s expense) of parts that TAU recognises as being faulty as regards workmanship or materials. For visits to the customer’s facilities, also during the guarantee period, a “Call-out fee” will be charged for travelling expenses and labour costs.
