Hyundai power products HDBTD45-A2 Instructions Manual

Brushcutter and grass trimmer
Hide thumbs

Advertisement

Quick Links

Download this manual
HDBTD45-A2
WARNING: Read the instruction manual thoroughly before use.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDBTD45-A2 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HDBTD45-A2

Summary of Contents for Hyundai power products HDBTD45-A2

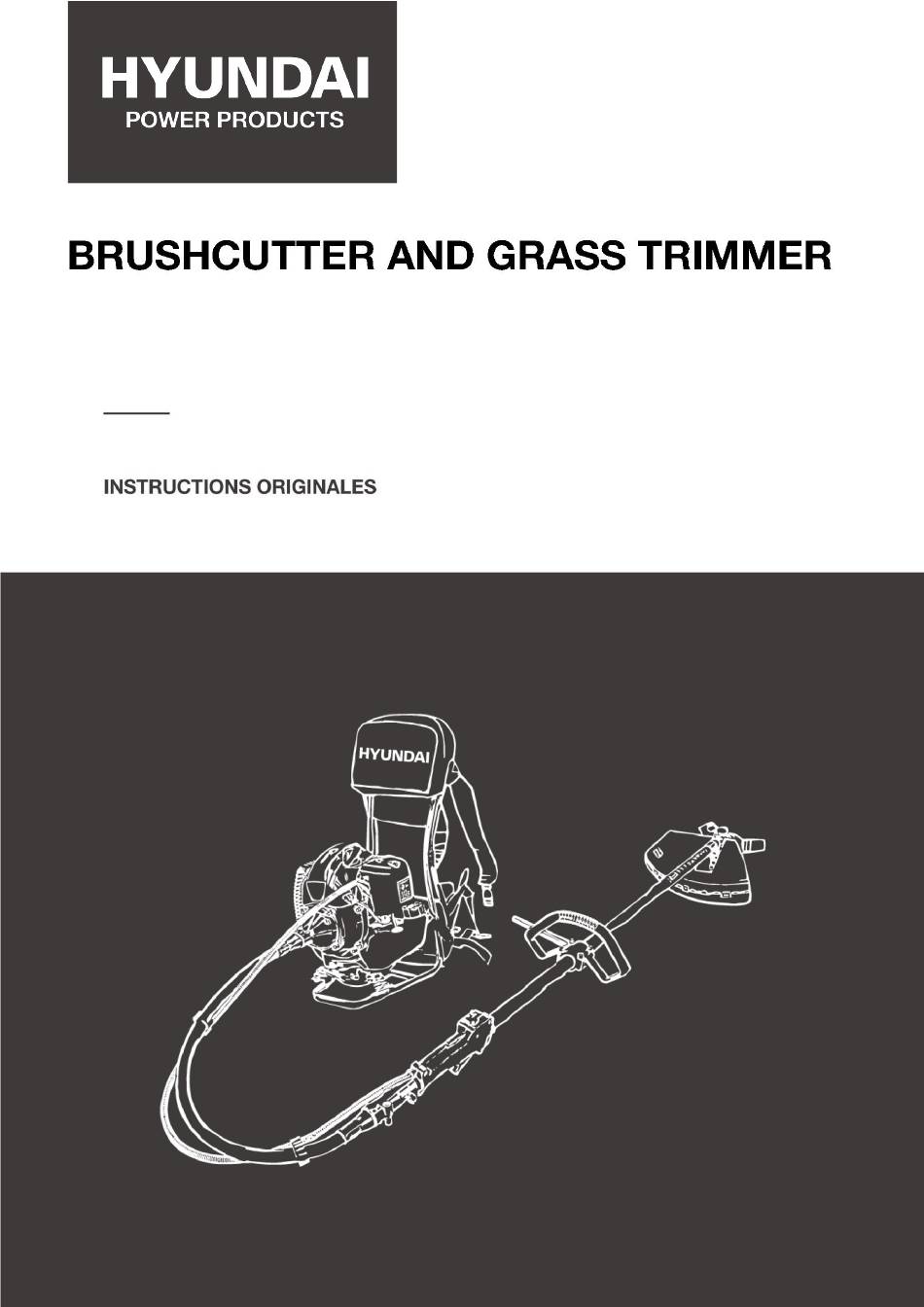

  • Page 1 HDBTD45-A2 WARNING: Read the instruction manual thoroughly before use.
  • Page 2 1. SAFETY WARNINGS Proper safety precautions must be observed. This unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation. Always wear safety goggles for eye protection.
  • Page 3 dealer. The use of any other accessories or attachments may cause a potential hazard or injury to the user, damage to the machine and void this warranty.  Clean the machine completely, especially, the fuel tank, its surroundings, and the air cleaner. ...
  • Page 4 or other hand-held power equipment is not required. If you experience discomfort, redness and swelling of the fingers followed by whitening and  loss of feeling, consult your physician before further exposing yourself to cold and vibration.  Always wear ear protection, loud noise for long time can make hearing debase even lost hearing.
  • Page 5 accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.
  • Page 6 Wear protective equipment: hearing protection, eye protection, and helmet Wear protection gloves Wear protective footwear Wear protective clothes Wear a mask of protection Caution to exhaust gases Do not smoke and do use the tool near naked flame The accessible part are hot when operate the tool Caution! Risk of rebound Keep bystanders away at least 15mm Caution! The tool can contact to a voluminous material.
  • Page 7 Be careful of the cutting attachment! Do not use in rain and in damp environment 2. YOUR PRODUCT Description...
  • Page 8 Unit 10. Grass trimmer attachment Handle 11. Brushcutter attachment Cutting attachment installation 12. Bottle for fuel mixing Tube 13. Flexible tube Command cord 14. Air filter Accelerator throttle 15. Choke lever ON/OFF switch 16. Starter rope Tube connector 17. Fuel tank Carter of protection 18.
  • Page 9 CAUTION: If the flexible tube is not inserted properly, the square end of the hose may not fit snugly in the drive shaft seal. Do not use force to avoid damage to the flexible shaft. Repeat the same procedure until the flexible shaft and hose are adjusted. Connecting the command cord Connect the command cords to the two engine leads by inserting them into each other.
  • Page 10 Handle Unscrew with a spanner the handle and the barrier. Install the handle and barrier to the aluminum tube Fasten the 4 internal hexagonal screws with spanner. Carter of protection Remove the screws which are on the carter of protection. Install the tube on the carter of protection.
  • Page 11 Installation of metal blade (for brush cutter operation) Insert a metal locking tool into the hole on the side of the drive gear and on the tool drive Remove cover bell and the holding nut from the shaft. Install, in the following order, on the shaft: the blade, the cover bell and then the holding nut.
  • Page 12 4. FUEL  Warning: Gasoline is highly flammable. Keep the fuel in specially designed cans.  Only fill the tank outside and do not smoke during the operation. Avoid sparks or open flames near the fuel.  Fill the tank before starting the engine. Never remove the fuel tank cap, add fuel while the engine is still running, or while the engine is still warm.

  • Page 13: Operation

    5. OPERATION Cold starting Put the tool on a plane surface. Push the ON/OFF switch on the ON position. Close the choke lever. Push the priming bulb 7 to 10 times.Pull the starter rope several times when the engine boom. Open the choke lever.
  • Page 14 Press and hold the safety switch and then accelerator throttle to start the operation Hot starting Partial the choke lever or open the choke lever Pull the starter rope. Press and hold the safety switch and then accelerator throttle to start the operation Stopping Release the accelerator throttle.
  • Page 15 Let the tool completely stop a) Grass trimmer operation Trimming Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier.
  • Page 16 b) Brushcutter operation Do not the brushcutter for cutting trees Do not cut with dull, cracked or damaged meal blade. Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade.
  • Page 17 e) Handling and transport The engine should be turned off when the unit is moved between work areas. After the engine has stopped, the muffler is still hot. Never touch hot parts such as the muffler. Confirm that the fuel is not leaked from tank. Transport the tool in a way to prevent loss of fuel, injuries and damage.
  • Page 18 ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine: BRUSH CUTTER & GRASS TRIMMER HDBTD45-A2 Serial No: 20201226936-20201227285 The people name holding the technical file：Mr. Olivier Patriarca Have been designed in compliance with the following standards:...

  • Page 19: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 20: Product Failure

    9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 21: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
