Editing Manual Switch Messages - Mircom QX-5000 Series User Manual

Adding and Configuring the QDV-1000

Editing Manual Switch Messages

To edit a message,
1. Select "QDV-1000" from the left pane. The right pane displays the QDV-1000 message list.
2. Click on a message in the QDV-1000 list and select Edit-->Properties from the main menu. The Message
Properties Window displays.
3. Enter a message number in Part 1. Continue to set up Parts 2 and 3 (if necessary), as well as the other switch
settings.
4. Click OK to save your settings and return to the Main Window.
Tips for Editing Manual Switch Messages
• The QDV-1000 configuration will be sent to the panel only if the QDV Installed checkbox is checked in the
System Configuration window. Even if this checkbox is not checked, you will still be able to setup the QDV-1000
configuration at all times.
• The list will show all QDV messages even if they are not configured. Deleting a message will only clear its
contents (resets it). Setting Part 1 Message to 0 will also clear the message.
• When editing a new switch message, the configuration utility will automatically show the next available un-used
switch. If there are no available switches, the utility will display the value of 1. The specified switch must not be
used by a switch Input, a QIF-1000 or a zone. The utility checks the specified switch and tells you if it cannot be
used. Note that checking or unchecking the QDV Installed checkbox in the System Configuration Window (see
page 19 for details) has no effect on this restriction.
26
firealarmresources.com

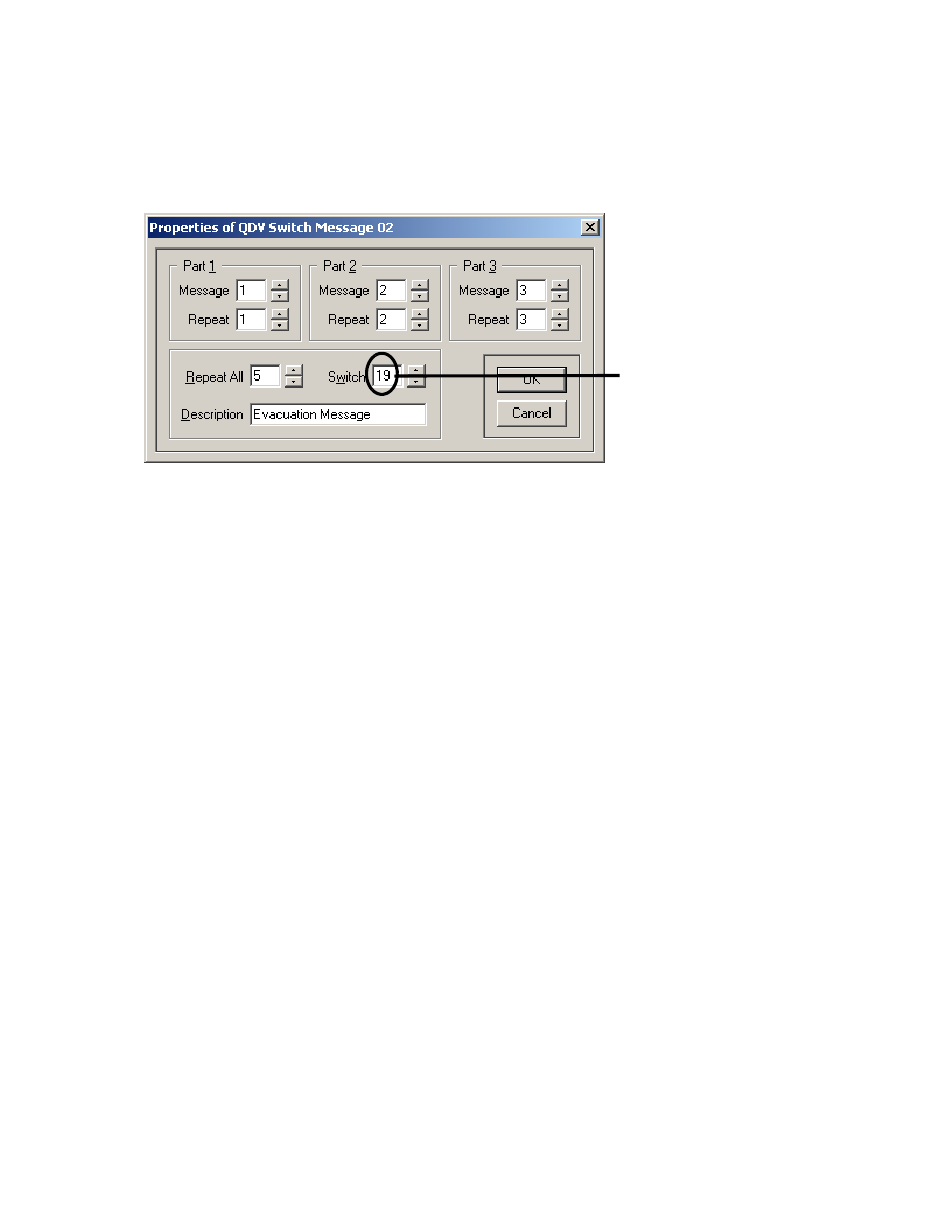

Shows next
