WARNING! Strictly follow all instructions to avoid an accident, damage to your vessel,
personal injury, or death. See www.harken.com/manuals for additional safety information.

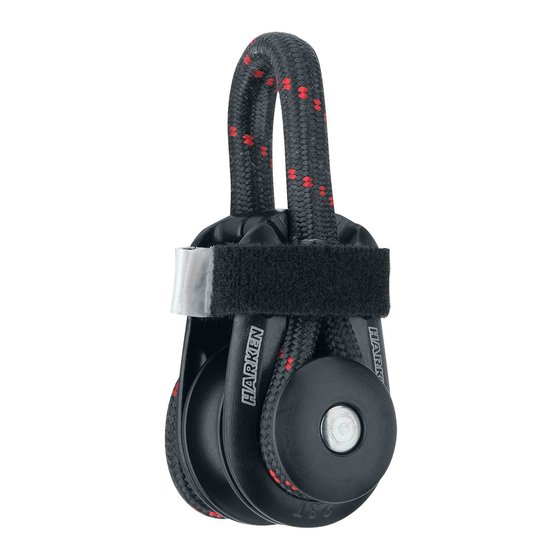

Features - Sideplates pivot open to make them easy to load onto sheets, perfect for temporary leads,
line deflection, and static line functions requiring small adjustments. Loop carries primary load
and articulates for a fair lead. Captured Velcro
are aligned. Strap has a reflective tab for easier operation with gloves. Harken composite bearing
technology (ULC) ensures sheaves turn smoothly and maintain efficiency under extreme loading.
Snap-fit Torlon
®
bearings carry sideloads. Integral headspacer prevents Hard Lube-anodized
aluminum sideplates from deflecting and binding.
Loop
Head
Part
Description
No.
3299
2.3T HL
3300
5T HL
3301
8T HL
3302
12T HL
3303
15T HL
HL Snatch blocks are supplied by Harken with loops. Loads listed above assume that the standard
Harken-supplied loops are used.
WARNING! Work with a rigger when using alternate spliced loops or fastenings. Knots
or incorrect splices weaken block assembly considerably. Use only Harken-supplied
replacement loops, or work with a qualified rigging supplier when replacing loops.
WARNING! Block loads increase when the line turns at a greater angle. Block loads
double when the line turns 180 degrees. See example above. Use block loading factors.
Select blocks and application carefully.
High-Load Snatch Blocks
N15W24983 Bluemound Road • Pewaukee, WI 53072 U.S.A.
Terms
Closed slot
Velcro
band
Velcro band
Thimble
Beta
cheek
Screw
Alpha
cheek
Maximum working load - metric tons
Sheave diameter
mm
in
38.5
1.5
56
2.2
75
3
101
4
125
5

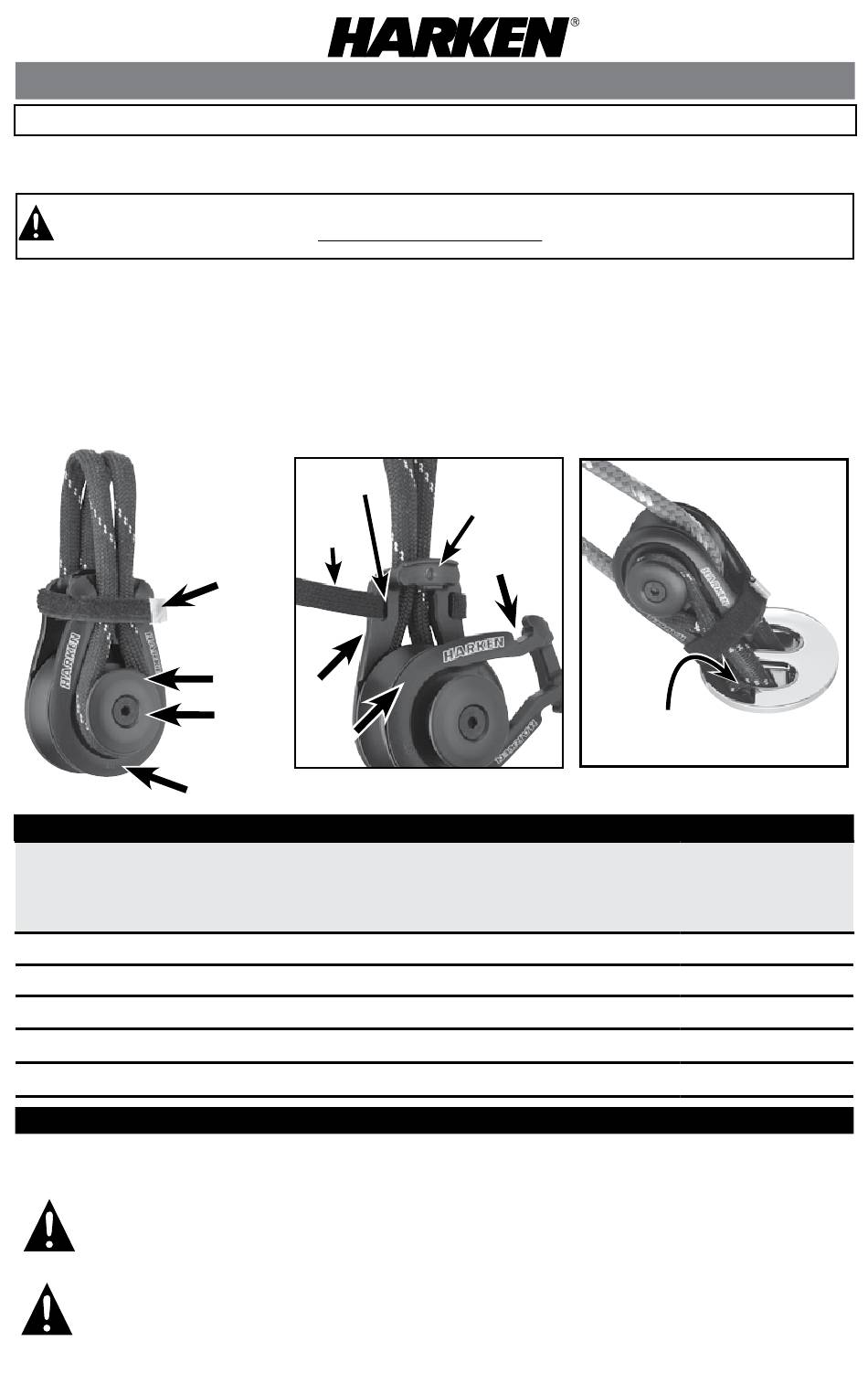

INSTRUCTIONS
®
strap holds block securely closed when sideplates
Stop ball
Open slot
Specifications
Max line Ø
mm
in
11
7 /16
16
5 /8
18
3 /4
1
30
3 /16
1
30
3 /16
General Warnings
Velcro is a registered trademark of Velcro Industries B.V.I
Torlon is a registered trademark of Solvay Advanced Polymers L. L. C.
Example - Line making 180°
Anchor point
Maximum working
load
kg
lb
2300
5069
5000
11020
8000
17632
12000
26448
15000
33060
wrap
Breaking load
kg
lb
4600
10138
10000
22040
16000
35264
24000
52896
30000
66120
