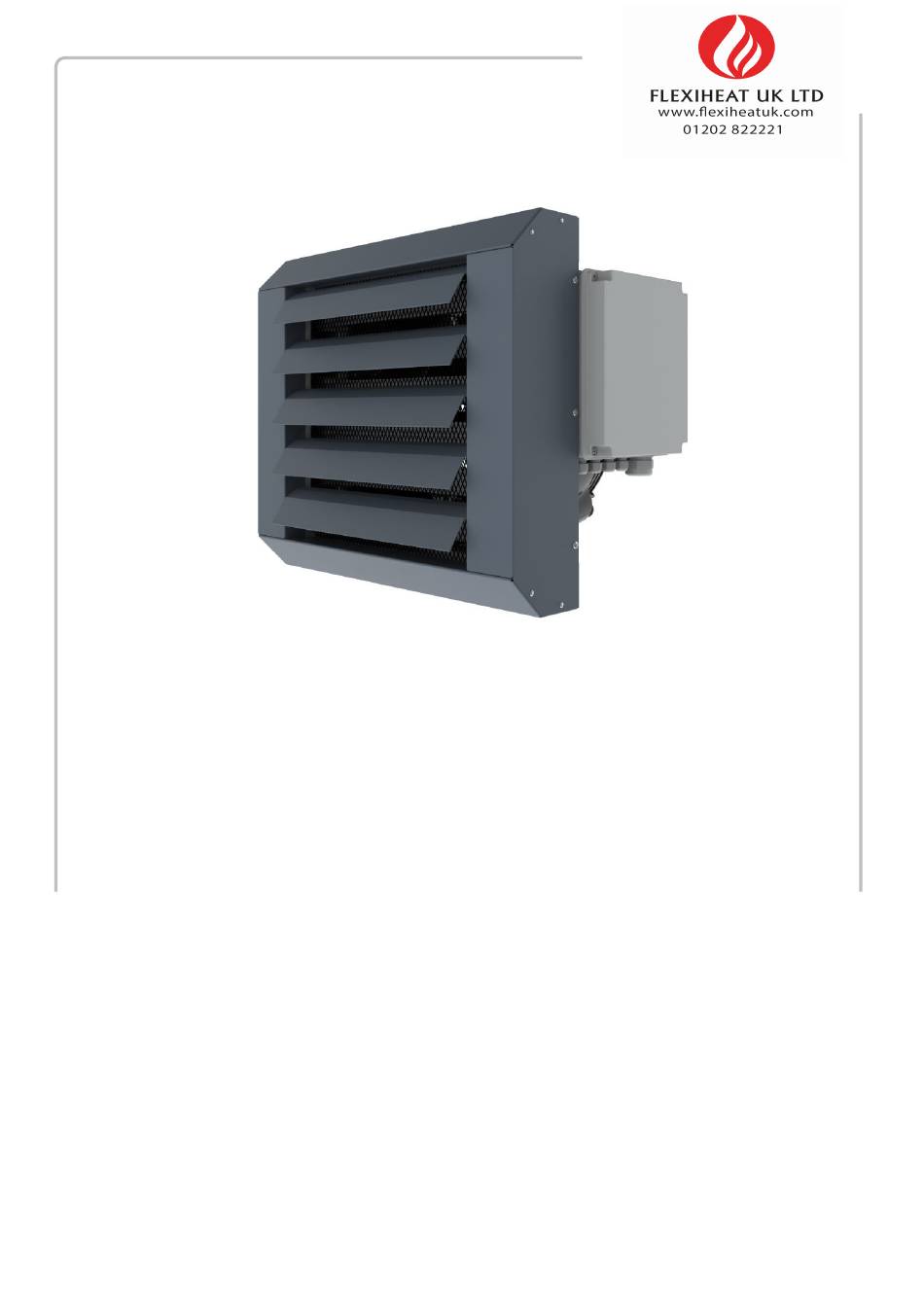

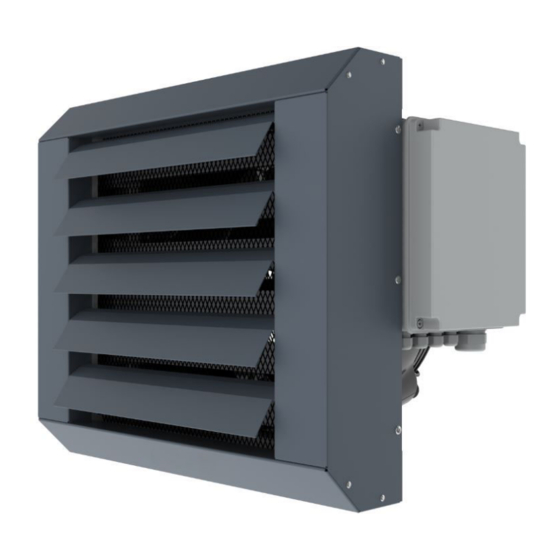

- Page 1 LEO EL S | L BMS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Application ..................2 2. Technical Data ................3 3. Installation ..................5 3.1. Installation – bracket ............... 5 3.2. Assembly instructions .............. 5 3.3. U-profiles (optional) ..............5 4. Connection diagrams ..............6 5. Start-Up and Operation ..............8 6. -
Page 3: Technical Data
2. TECHNICAL DATA EL S BMS EL L BMS LEO EL S BMS LEO EL L BMS Gear | Max airflow [m /h ] | 2000 1600 1250 4250 2800 1700 Power supply [V/Hz] 3x400/50 3x400/50 Max current Fan consumption [A]... - Page 4 2. TECHNICAL DATA LEO EL S BMS [°C] [kW]* [A]* [°C] 1st step of heating 5,5/5,9/6,0 7,9/8,5/8,6 15/10/9 1250/1600/2000 5,4/5,7/5,9 7,8/8,2/8,4 22/19/17 5,3/5,6/5,8 7,7/8,0/8,3 30/28/26 2nd step of heating 9,5/10,2/10,8 13,6//14,7/15,6 28/25/19 1250/1600/2000 9,2/9,8/10,3 13,2/14,0/14,8 32/29/24 8,9/9,6/10 12,8/13,8/14,4 38/34/30 LEO EL L BMS [°C]...
-
Page 5: Installation
3. INSTALLATION 1. Fan heaters can be mounted to vertical or horizontal partitions. During the montage, the EL S BMS EL L BMS minimal distances from the walls and ceiling max 3,0 max 6,0 have to be kept. max. 6,0 max 9.5 2. -
Page 6: Connection Diagrams
4. CONNECTION DIAGRAMS Power supply • ) (Circuit protection B20 ) LEO EL S BMS (OMY 5x4,0 mm • ) (Circuit protection B40 ) LEO EL L BMS (OMY 5x6,0 mm 3- step fan speed regulator with thermostat TS (OMY 5x0,5 mm •... - Page 7 4. CONNECTION DIAGRAMS Power supply 3 x 400V/50Hz: • ) (Circuit protection B20 ) LEO EL S BMS (OMY 5x4,0 mm • ) (Circuit protection B40 ) LEO EL L BMS (OMY 5x6,0 mm T-box - intelligent controller with touch screen ...
-
Page 8: Start-Up And Operation
EN: It is possible to connect up to 31modules DRV and control them with one T-box controller .| EN: DRV modules can be connected to the BMS (Building Management System). 5. START-UP AND OPERATION Start-up Periodic inspections To keep proper technical parameters Flowair recommends periodic •... -
Page 10: Service And Warranty Terms
6. SERVICE AND WARRANTY TERMS Please contact your dealer in order to get acquitted with the warranty terms and its limitation. In the case of any irregularities in the device operation, please contact the manufacturer’s service department. The manufacturer bears no responsibility for operating the device in a manner inconsistent with its purpose, by persons not authorised for this, and for damage resulting from this! 10 |... - Page 11 | 11...
-
Page 12: Conformity With Weee Directive 2012/19/Ue
Running a business without harming the environment and observing the rules of proper handling of waste electrical and electronic equipment is a priority for Flexiheat. The symbol of the crossed out wheeled bin placed on the equipment, packaging or documents attached means that the product must not be disposed of with other wastes. - Page 13 | 13...
- Page 14 Declaration Of Conformity / Flexiheat hereby confirms that heating unit / Flexiheat • LEO EL L BMS; LEO EL S BMS were produced in accordance to the following Europeans Directives / zijn geproduceerd in overeenstemming met de volgende 2014/30/UE – Electromagnetic Compatibility (EMC) 2006/42/WE –...
- Page 15 COMMISSION REGULATION (EU) 2016/2281 Information relevant for disassembly, recycling and/or disposal at end-of-life. isassembly should be carried out by a person with appropriate authorizations. After disassembly, waste should be segregated: housing: steel - recyclable heating elments: aluminum, fan: dispose of in accordance with the rules for the disposal of electrical equipment Unit name: LEO EL Capacity control: 3-speed LEO EL S...
- Page 16 52383 MT-DTR-LEO-EL-S-L-EN-PL-NL-RU-V1 16 | www.flowair.com...
