Summary of Contents for Austroflamm Perry

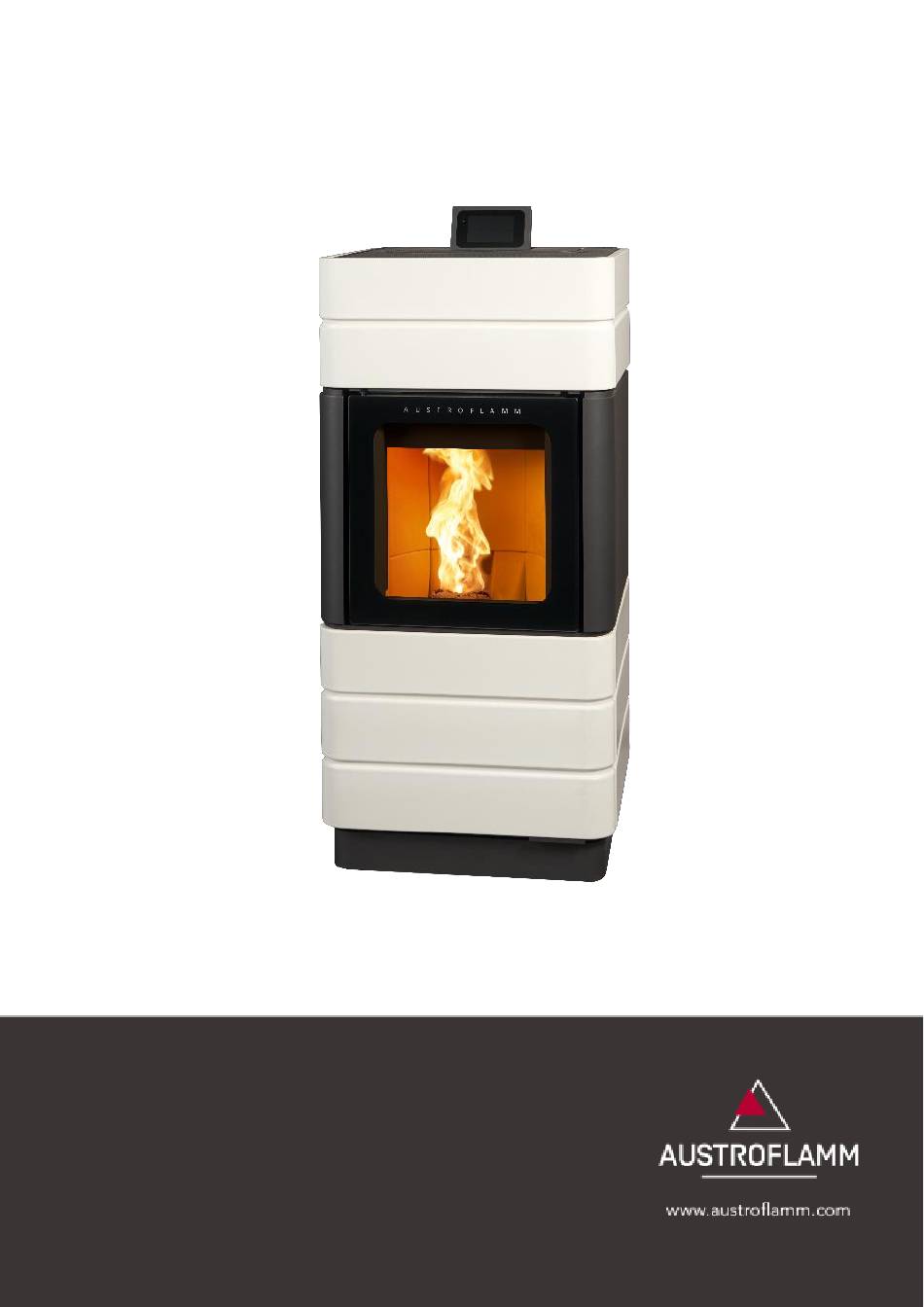

- Page 1 Benutzerhandbuch / user instructions/ Manuel d’instructions / istruzioni per l’uso Perry...
- Page 2 User instructions Perry english...
-
Page 3: Table Of Contents
For models with ON/OFF worm gear motor ................24 For models with a permanently rotating worm gear motor ............25 Technical Data ..........................26 Perry Technical data according to Regulation (EU) 2015/1185 and delegated Regulation (EU) 2015/1186 ..................26 Perry technical Data ........................29... -
Page 4: Important Information For The Stove User
The information in this manual is of a general nature. National and European standards, local and building regulations, and fire safety provisions must be observed. • The initial commissioning of the appliance must be carried out by an authorised Austroflamm ser- vice partner or by Austroflamm Service GmbH & Co.KG. •... -
Page 5: System Requirements
User instructions Perry english • The appliance shall be installed on floors with an adequate load-bearing capacity. If an existing construction does not meet this prerequisite, suitable measures (e.g. load distributing plate) shall be taken to achieve it. 2 System Requirements 2.1 External combustion air supply... -
Page 6: Fuel
User instructions Perry english • A maximum number of 3 x 90° elbows should not be exceeded. Each elbow should be pro- vided with a cleaning aperture. • The chimney must be resistant to condensation. • The chimney must provide at least 3-12 Pa draught to ensure the flue gases are sufficiently ex- tracted, even in the event of a power failure. -
Page 7: Initial Operation, Using The Stove
3. Plug in the power cable and set the toggle switch on the back of the stove to "I". 4. The display will now show the Austroflamm logo. This is followed by the main operating menu with temperature indicators and hopper level. -
Page 8: Display - Heat Output Indicator, Further Function Menus
User instructions Perry english Display – Heat output indicator, further function menus Back to room Heat output level temperature indicator Heating times Start / Stop function Statistics Tips Settings By pressing the appropriate icon, it is possible to switch to the desired setting or function. -
Page 9: Function- Fill Level Indicator
User instructions Perry english Function- Fill level indicator The fill level indicator informs you of the fill level of your pellet hopper. If the fill level falls below a certain value, a warning is shown on the display. The fill level indicator must be updated manually each time the pellet hopper is filled. -
Page 10: Setting A New Heating Time Or Editing The Heating Time
User instructions Perry english Setting a new heating time or editing the heating time Set the weekdays, heating time start, heating time end and room temperature as required. Save the heating time by pressing the "Save" icon. You will then return to the heating time list. -
Page 11: Display - Settings
User instructions Perry english Display - Settings Back Scroll list By pressing the “SETTINGS“ button in the menu list the “Settings” menu can be accessed. It is now possible to scroll up or down the list. By pressing the desired menu item, the function is activated. - Page 12 User instructions Perry english Menu item: Bluetooth devices The "SMART SPOT" radio-controlled room thermostat is availa- ble for your pellet stove. This SMART SPOT works via Bluetooth technology. When used, it must be activated once by selecting this menu item.
-
Page 13: Menu Item: Frost Protection
User instructions Perry english Menu item: Frost protection The frost protection menu is used to start the stove automatically at a preset temperature. The menu only works when the timer function has been activated. Menu item: Display options The following display options can be selected:... - Page 14 Menu item: Service due Here you can see how many maintenance-free hours of operation your stove still has until a service is necessary. The service must be carried out by an approved Austroflamm techni- cian. Menu item: Service menu This menu is reserved for the Austroflamm service technician.
-
Page 15: Operating The Stove Using The Ir Remote Control
User instructions Perry english Menu item: Info Here the hardware and software status of the individual components are displayed. When servicing, please have the - ”Stove software version" and the - "Stove model number" at the ready. Menu item: Heating statistics In the heating statistics, the usage data are displayed. -
Page 16: Operating The Stove Using The App And Smart Phone
3.3 Operating the stove using the APP and smart phone To install or set up the data connection, please refer to the instructions for your WLAN module, or follow the installation instructions of the Austroflamm PelletControl app. Download the required "Austroflamm PelletControl"... -
Page 17: Alarms And Error Messages
User instructions Perry english 4 Alarms and Error Messages Alarms are displayed in yellow on the control panel. The pellet stove can continue to be used when an alarm is indicated. Alarms are displayed in red. The pellet stove is inoperable when an error is dis- played. -
Page 18: Resetting Alarms And Errors
User instructions Perry english 4.1 Resetting alarms and errors In the event of an alarm or error, a yellow or red message is displayed giving details. To close the alarm display, press Closing the display does not clear the alarm. -
Page 19: Cleaning And Maintenance
The stove and its components must be cleaned according to the above table. Arrange for your pellet stove to be inspected and serviced annually by an Austroflamm technician be- fore the start of the heating season. -
Page 20: Cleaning The Flue Gas - Perry
User instructions Perry english 5.2 Cleaning the flue gas - Perry... - Page 21 User instructions Perry english...
-
Page 22: Replacing The Storage Battery
User instructions Perry english 6 Replacing the Storage Battery A CR2032 storage battery is located in the control unit. This storage battery enables the control unit to save certain data - e.g. time, date, heating times etc. even during a power failure, or when the mains power supply is disconnected. -
Page 23: Guarantee / Warranty
For the replaceability of the warranty case the start-up log must be received by Austroflamm within one month at the latest of the initial commis- sioning. In order to make a claim on the warranty, repairs to your pellet stove insert must only be carried out by a service engineer authorized by Austroflamm. -
Page 24: Wiring Diagram
User instructions Perry english 8 Wiring Diagram Note: Repairs to your pellet stove must only be carried out by approved Austroflamm technicians. 8.1 For models with ON/OFF worm gear motor Magnetic switch (hopper lid) RPM / HAL-IC Earthing – ID fan Earthing –... -
Page 25: For Models With A Permanently Rotating Worm Gear Motor
User instructions Perry english 8.2 For models with a permanently rotating worm gear motor Phase converter RPM / HAL-IC Earthing – ID fan Earthing – DC control side Room temperature sensor Firebox temperature sensor Differential pressure measure- ment P1, P2... -
Page 26: Technical Data
User instructions Perry english 9 Technical Data 9.1 Perry Technical data according to Regulation (EU) 2015/1185 and dele- gated Regulation (EU) 2015/1186 Contact details for the manufacturer or their authorised representative Manufacturer: Austroflamm GmbH Contact: Address: Austroflamm-Platz 1 4631 Krenglbach... - Page 27 User instructions Perry english Fuel Preferred Other sui- Space heating emissi- Space heating emis- ηs fuel table ons at nominal heat sions at minimum [x%]: fuel(s) efficiency (*) heat efficiency (only one) (**) PM OGC CO NOx PM OGC CO NOx [x] mg/Nm³...
- Page 28 User instructions Perry english Properties for exclusive operation with the preferred fuels Specification Symbol Value Unit Specification Symbol Value Unit Heat output Thermal efficiency (fuel efficiency) (based on the NCV) Nominal heat effi- Pnom Thermal efficiency (fuel 89.0 ηth,nom ciency...
-
Page 29: Perry Technical Data
User instructions Perry english 9.2 Perry technical Data Nominal heat output (NHO) 7,5 kW Partial load heat output 2 kW Room heating capacity 82 - 245 m³ Efficiency 89 % CO content at NHO 6 mg/Nm³ CO content at partial load (PL) 198 mg/Nm³... -
Page 30: Start Up Log
User instructions Perry english 10 Start up log Operator / Customer Dealer / Engineer Name Company Street Street Town and postal code Town and postal code Telephone Telephone Email Email Pellet stove Model Control software version Serial number Control panel software version... - Page 31 User instructions Perry english Instructions for Operator / Customer Instructions for handling the appliance explained clearly Cleaning and maintenance interval explained and comprehensibly Terms of the guarantee and warranty explained. Photographic documentation of actual condition – hybrid stove installation (Please be sure to obtain the customer’s consent beforehand)
- Page 32 User instructions Perry english...
- Page 33 User instructions Perry english AUSTROFLAMM GMBH Austroflamm-Platz 1 A-4631 Krenglbach Tel: +43 (0) 7249 / 46 443 www.austroflamm.com info@austroflamm.com 940312 Stand 11/2022...
