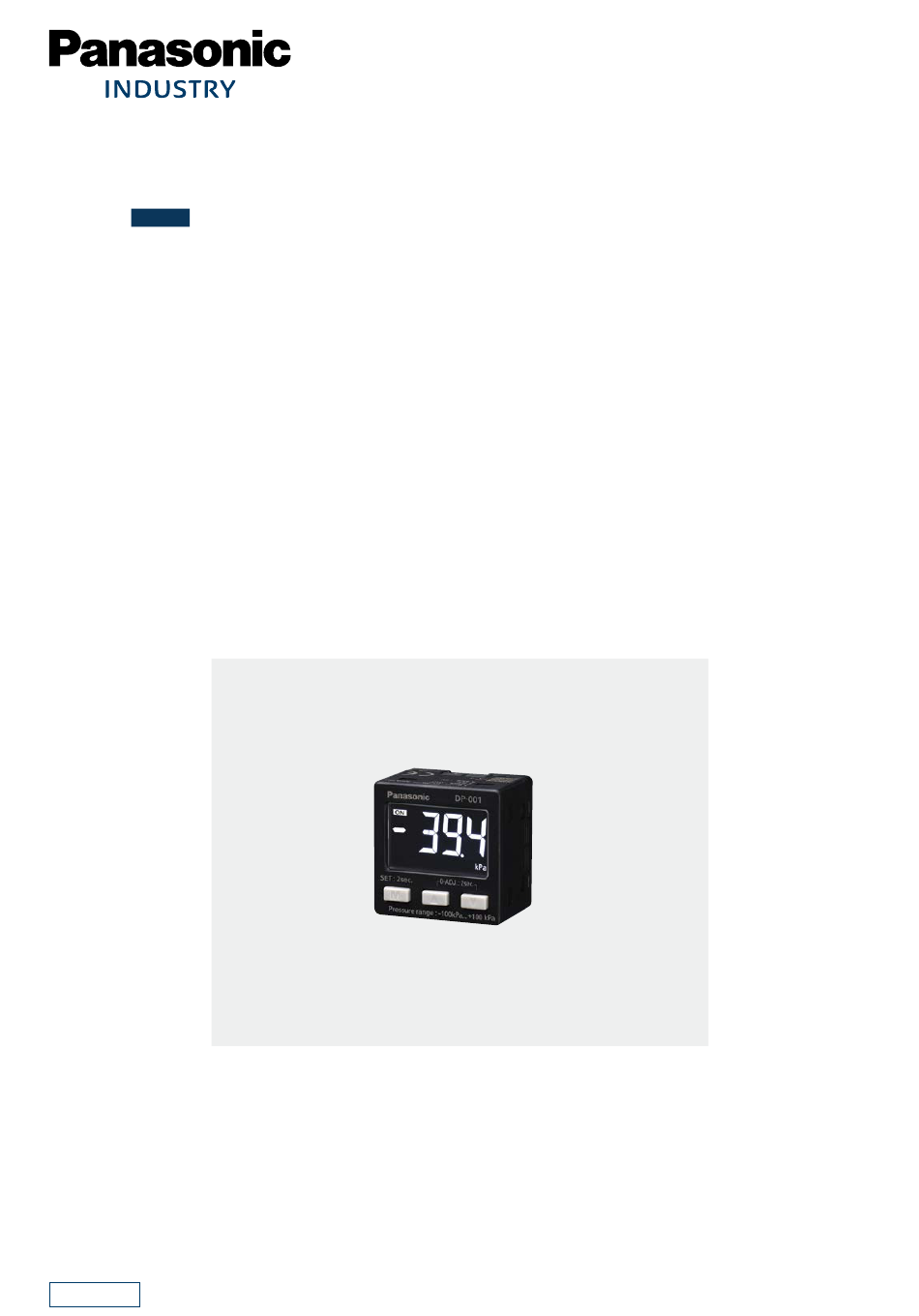

- Page 1 For Gas Digital Pressure Sensor DP-0 SERIES * The contents of this catalog are as of October 2017. 2022.8 For the latest information, please visit our company website.
-
Page 2: Functional Design
Digital Pressure Sensor For Gas DP-0 SERIES Digital Simple and easy operation Redesigned for improvement of pressure sensor usability from ground up Simple & easy operation Two levels of configuration for easy operation of essential functions The “RUN mode” is for setting the threshold value, the zero point adjustment and key lock/release setting, and the “detailed configuration”... - Page 3 High pressure type: MPa, kgf/cm , bar, psi Compact & light weight design Extra-short depth and light weight Conventional model DP-0 series (DP-100 series standard pressure port type) The unit body measures only 24.9 mm 0.980 in in depth to allow installation in a shallow space. The main unit weighs only about 25 g.
-
Page 4: Connection Cable
DP-0 SERIES Digital Pressure Sensor Three output modes Equipped with three output modes for use in a wide range of applications (1) EASY mode (2) Hysteresis mode (3) Window comparator mode This mode is used for comparative output ON/ This mode is used for setting comparative This mode is used for setting comparative OFF control. -
Page 5: Order Guide
Protects the adjustment surfaces of sensors. MS-DP1-3 cover (Can be attached when using the panel mounting bracket) Conversion ／ MS-DP1-7 Pressure port can be converted to Rc female thread. bushing Note: The connector attached cable CN-14A-C2 is supplied with the DP-0 series. -
Page 6: Specifications
DP-0 SERIES Digital Pressure Sensor SPECIFICATIONS Type Low pressure High pressure NPN output DP-001 DP-002 Item PNP output DP-001-P DP-002-P CE marking directive compliance EMC Directive, RoHS Directive Type of pressure Gauge pressure Rated pressure range −100.0 to +100.0 kPa 0.000 to +1.000 MPa −101.0 to +101.0 kPa −0.010 to +1.010 MPa... - Page 7 DP-0 SERIES Digital Pressure Sensor I/O CIRCUIT AND WIRING DIAGRAMS NPN output type I/O circuit diagram Terminal arrangement diagram Terminal No. Color code of connector attached cable (Brown) +V (White) Not connected (Note) Load 12 to 24 V DC ±10 % (Black) Comparative output −...
-
Page 8: Precautions For Proper Use
DP-0 SERIES Digital Pressure Sensor PRECAUTIONS FOR PROPER USE Connection • Never use this product as a sensing device for personnel protection. How to connect • In case of using sensing devices for Release lever • Insert the cable with connector personnel protection, use products which CN-14A(-R)‑C□... -
Page 9: Assembly Dimensions
DP-0 SERIES Digital Pressure Sensor DIMENSIONS (Unit: mm in) The CAD data can be downloaded from the website. DP‑00□ Sensor 24.9 0.980 Connector 0.787 1.181 0.787 0.193 Display 2-ø2.5 0.098, 5 0.197 deep ø8.35 0.787 1.181 ø0.329 M5 female thread, 4 0.157 deep 0.051... - Page 10 DP-0 SERIES Digital Pressure Sensor DIMENSIONS (Unit: mm in) The CAD data can be downloaded from the website. MS-DP1-7 Conversion bushing (Optional) Assembly dimensions 15.8 0.622 0.551 M5 male thread 0.138 0.307 Gasket 36.4 36.4 0.020 1.433 0.433 0.394 0.315 female thread Material: Brass (Nickel plated) Weight: 10 g approx.
- Page 11 Disclaimer The applications described in the catalog are all intended for examples only. The purchase of our products described in the catalog shall not be regarded as granting of a license to use our products in the described applications. We do NOT warrant that we have obtained some intellectual properties, such as patent rights, with respect to such applications, or that the described applications may not infringe any intellectual property rights, such as patent rights, of a third party. Panasonic Industry Co., Ltd. Industrial Device Business Division 7-1-1, Morofuku, Daito-shi, Osaka 574-0044, Japan industrial.panasonic.com/ac/e/ Specifications are subject to change without notice. ⓒ Panasonic Industry Co., Ltd. 2022.8 Printed in Japan...
