Panasonic DP-0 Series Instruction Manual

INSTRUCTION MANUAL
Panel Mounting Bracket for DP-0 Series
MS-DP1-8
MJECK-MSDP18 No.0101-53V
Thank you very much for purchasing Panasonic prod-
ucts. Read this Instruction Manual carefully and thor-
oughly for the correct and optimum use of this product.
Kindly keep this manual in a convenient place for quick
reference.

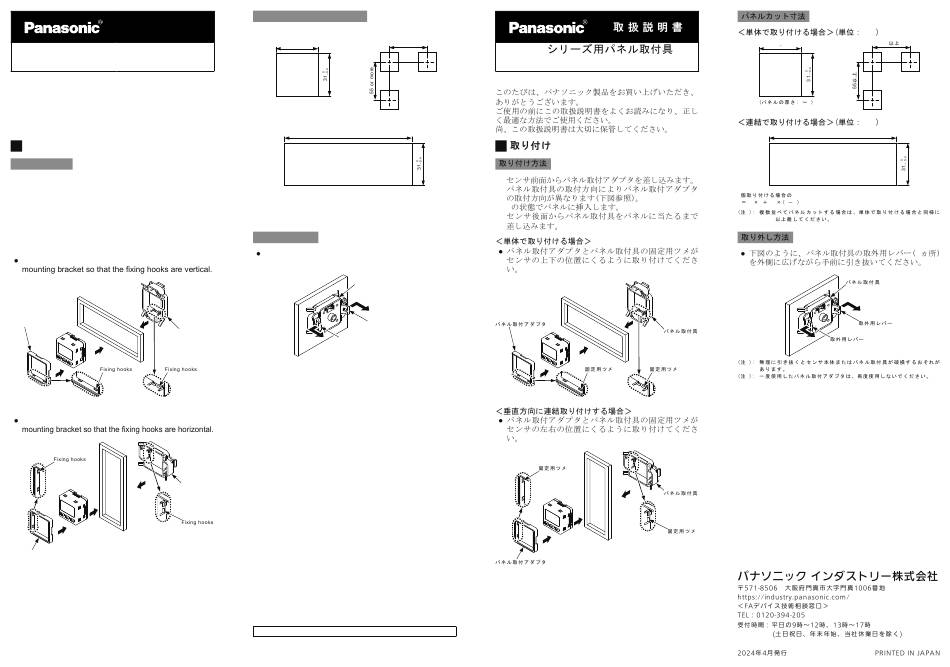

1 MOUNTING
How to mount
1. Fit the panel mounting adapter on the front side of the
sensor. Mounting direction of the panel mounting adapt-
er differs depending on the mounting direction of the
panel mounting bracket. (Refer to the diagram below.)
2. Insert to the panel, in condition 1.
3. Insert the panel mounting bracket from the rear side
of the sensor till it touches the panel.
<For horizontal adjacent mounting>
Mount the panel mounting adapter and the panel
Panel mounting adapter
Panel mounting
bracket
<For vertical adjacent mounting>
Mount the panel mounting adapter and the panel
Panel mounting
bracket
Panel mounting adapter
Dimensions of panel cutout
<For single mounting> (Unit: mm)
0 55 or more
31
-0.4
(Panel thickness: 1 to 3)
<For adjacent mounting> (Unit: mm)
X
When n pieces are mounted
X = 31 × n + 3.5 × (n - 1)
Note: In case of adjacent mounting, be sure to keep apart from each other in
55mm or more as well as for single mounting.
How to remove
Pull out the panel mounting bracket while pushing the
removing levers out.
Panel mounting bracket
Removing lever
Removing lever
Notes: 1) Take care that it the sensor is forcibly pulled, the sensor itself or the
panel mounting bracket may break.
2) Do not reuse the panel mounting adapter which has been used once.
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024 PRINTED IN JAPAN
