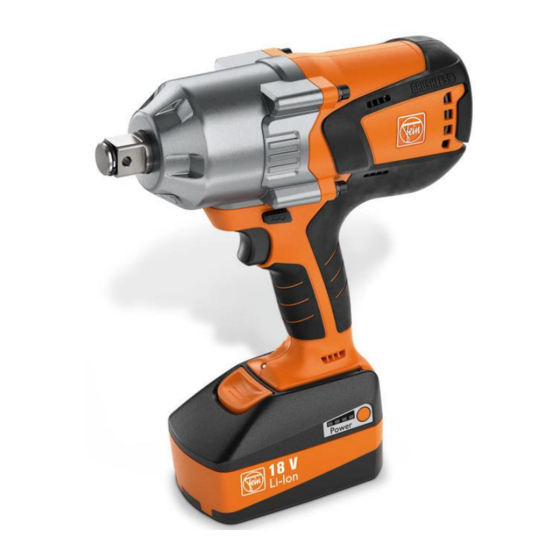

Fein ASCD 18-1000 W34 Repair Instructions
  1. Manuals
  2. Brands
  3. Fein Manuals
  4. Power Screwdriver
  5. ASCD 18-1000 W34
  6. Repair instructions

Fein ASCD 18-1000 W34 Repair Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Screwing
Repair instructions
Applies to:
ASCD 18-1000 W34
34130560060
Printed in Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASCD 18-1000 W34 and is the answer not in the manual?

Questions and answers

Related Manuals for Fein ASCD 18-1000 W34

Summary of Contents for Fein ASCD 18-1000 W34

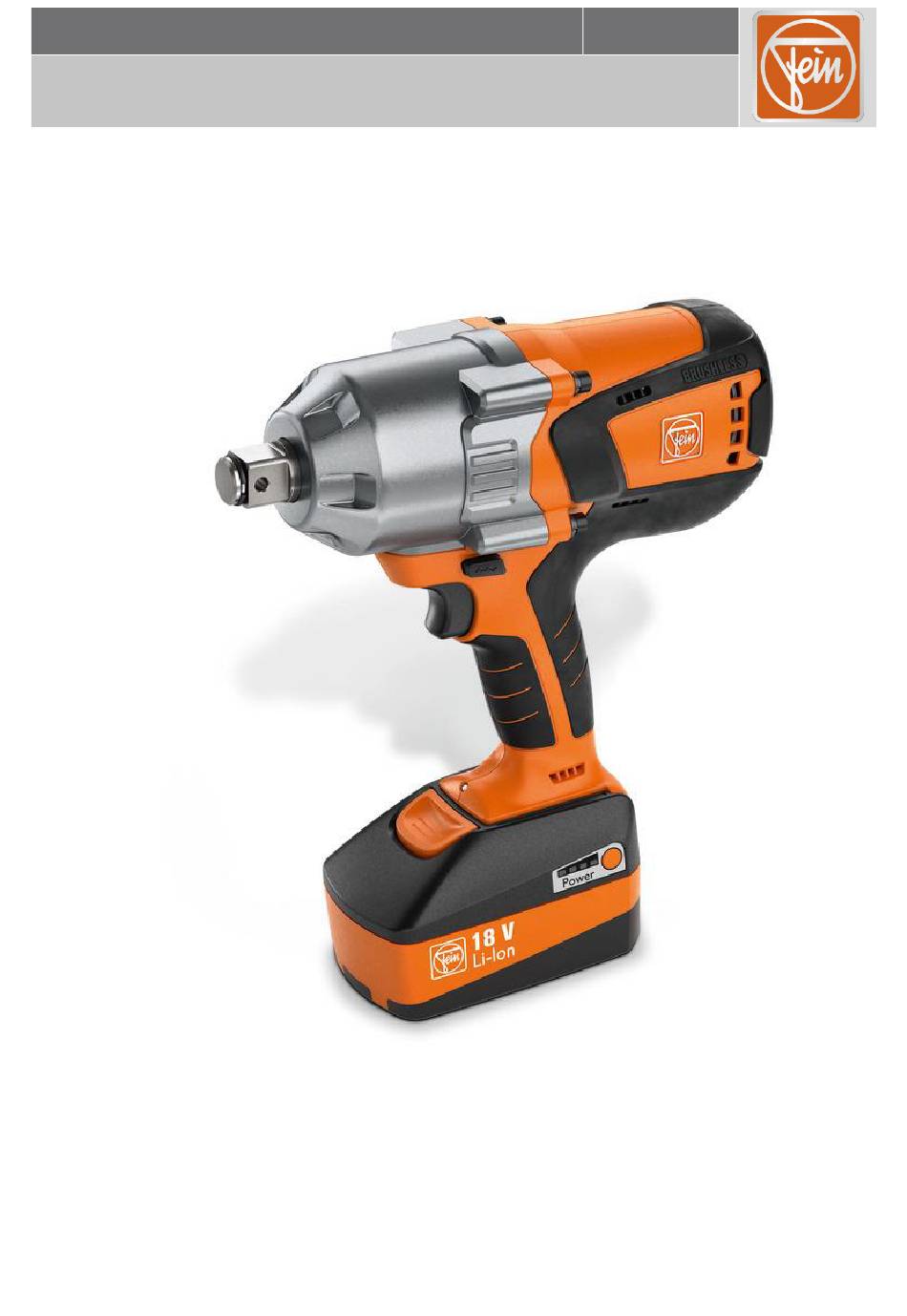

  • Page 1 34130560060 Screwing Printed in Germany Repair instructions Applies to: ASCD 18-1000 W34...

  • Page 2: Table Of Contents

    Assembling the motor housing ....................21 10 Inspection following repairs ......................24 C-SC_CSSM Version 1.0 19.05.2021 Page 2 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 3: Models Described

    ASCD 18-1000 W34 7 115 09 ..C-SC_CSSM Version 1.0 19.05.2021 Page 3 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Technical Data

    Connection diagram The connection diagram can be found in the FEIN electronic information system. Inspection following repairs Further information about the inspection steps required after repairs can be found in the FEIN electronic information system Documents required for further repair work...

  • Page 5: Symbols Used

    Part of the navigation interface. C-SC_CSSM Version 1.0 19.05.2021 Page 5 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 6: Notes And Requirements

    C. & E. Fein GmbH assumes no responsibility for the completeness, relevance, quality or correctness of the information provided. Liability claims against C. & E. Fein GmbH that relate to material or immaterial damage caused by the use or failure to use the information provided or by the use of incorrect or incomplete information are excluded.

  • Page 7: Safety Instructions

    Measure that must be taken in order to avoid this danger. C-SC_CSSM Version 1.0 19.05.2021 Page 7 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 8 Only perform assembly/disassembly work on electronics at a workstation with ESD protection. Avoiding the failure of electronics C-SC_CSSM Version 1.0 19.05.2021 Page 8 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 9: Tools, Lubricants And Auxiliary Substances Required

    Electronics Thread locking LOCTITE® 243 n. a. Screws compound C-SC_CSSM Version 1.0 19.05.2021 Page 9 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 10: Test And Diagnostics Options

    The FEIN USB programming adapter is used to read machine parameters, the software version and operating hours. The firmware update software required for this can be found in the FEIN electronic information system. The machine software has to be checked for possible updates with each repair.

  • Page 11: Disassembly

    Bring the gearbox housing (2) forward approx. 3–4 mm. Separate the two stickers (3). C-SC_CSSM Version 1.0 19.05.2021 Page 11 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 12 Remove the pressure piece (3). Remove all components from the motor housing. C-SC_CSSM Version 1.0 19.05.2021 Page 12 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 13: Disassembling The Electronics

    Remove the speed setting switch (4). Unsolder the three cables (5). C-SC_CSSM Version 1.0 19.05.2021 Page 13 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 14 8.2 Disassembling the electronics Remove the toggle switch (1). C-SC_CSSM Version 1.0 19.05.2021 Page 14 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 15: Removing The Gearbox

    Remove the disc (3). Remove the tool holder (4). C-SC_CSSM Version 1.0 19.05.2021 Page 15 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 16: Assembly

    Coat the shaft end (2) with 2 g of grease. C-SC_CSSM Version 1.0 19.05.2021 Page 16 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 17 Coat the shaft in this section (3) with 2 g of grease. Position the gearbox housing (4). C-SC_CSSM Version 1.0 19.05.2021 Page 17 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 18 Coat the ring gear toothing (1) with 2 g of grease. Position the motor with the flange (2). C-SC_CSSM Version 1.0 19.05.2021 Page 18 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 19: Assembling The Electronics

    Position the cable tie (5). NFORMATION Only lay out the cable tie (5). C-SC_CSSM Version 1.0 19.05.2021 Page 19 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 20 The adhesive must be applied on the sides of the plugs facing outwards. C-SC_CSSM Version 1.0 19.05.2021 Page 20 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 21: Assembling The Motor Housing

    Ensure that the motor housing (1) is in the correct position. Ensure that the motor (2) is in the correct position. Applies to model: 7 115 08 ..ASCD 18-1000 W34 Correctly position the speed setting switch (3).
  • Page 22 Position the nut (2). Position the pressure piece (3). C-SC_CSSM Version 1.0 19.05.2021 Page 22 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 23 Screw in the four screws crosswise (3) [4.5 Nm]. C-SC_CSSM Version 1.0 19.05.2021 Page 23 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 24: Inspection Following Repairs

    Further information in the FEIN information system. (Fein Firmware Updater) C-SC_CSSM Version 1.0 19.05.2021 Page 24 of 24 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
