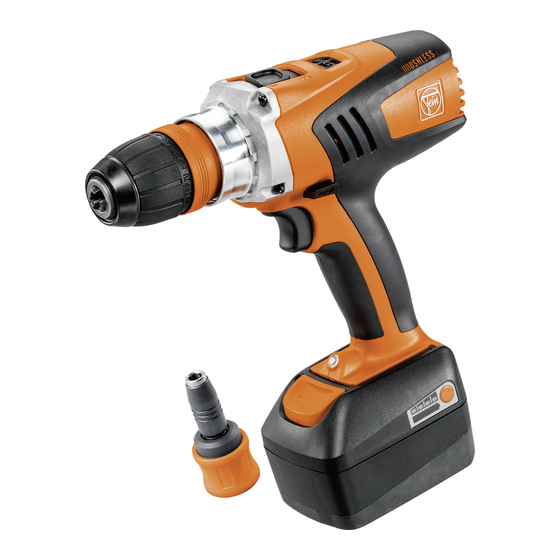

ASCM 14; ASCM 14QX; ASCM 18; ASCM 18QX; ASCM 18QM
Repair instructions
ASCM 14; ASCM 18
C-SC_CSSM
Version 1.0
08.06.2017
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation
ASCM 14QX; ASCM 18QX; ASCM 18QM
.
Page 1 of 40
Advertisement
Related Manuals for Fein ASCM 14
Summary of Contents for Fein ASCM 14
- Page 1 ASCM 14; ASCM 18 ASCM 14QX; ASCM 18QX; ASCM 18QM C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 1 of 40 FEIN retains all rights of disposal, such as copying and circulation...
-
Page 2: Table Of Contents
6. Disassembly 7. Assembly 8. Troubleshooting 9. Connection diagram C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 2 of 40 FEIN retains all rights of disposal, such as copying and circulation... -
Page 3: Models Described
7 116 04 00 94 0 ASCM 18QM 7 116 11 00 94 0 C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 3 of 40 FEIN retains all rights of disposal, such as copying and circulation... -
Page 4: Technical Data
Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service → Repair Guides). Lists of spare parts Lists of spare parts and exploded views are available online at www.fein.com... -
Page 5: Notes And Requirements
Outside Germany, the regulations applicable in the relevant country must be observed! C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 5 of 40 FEIN retains all rights of disposal, such as copying and circulation... -
Page 6: Tools Required
Arbor press Unlocking tool (see list of "Workshop equipment") C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 6 of 40 FEIN retains all rights of disposal, such as copying and circulation... -
Page 7: Lubricants And Auxiliary Substances Required
ASCM 14; ASCM 14QX; ASCM 18; ASCM 18QX; ASCM 18QM 5. Lubricants and auxiliary substances required Note No lubricants or auxiliary substances are required for assembly of the ASCM 14, ASCM 14QX, ASCM 18, ASCM 18QX and ASCM 18QM. C-SC_CSSM Version 1.0 08.06.2017... -
Page 8: Disassembly
1. Press in lower side of quick-clamping drill chuck (1) and pull chuck off screwdriver. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 8 of 40 FEIN retains all rights of disposal, such as copying and circulation... - Page 9 If the chuck cannot be released, continue disassembly up to page 18. - Ratchet - Nut 19 mm C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 9 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 10 3. Unscrew the eight screws (3) and take off motor housing. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 10 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 11 2. Remove switch (2), motor (3) and switch pushbutton (4) from motor housing. 3. Disconnect cable (5). C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 11 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 12 1. Remove gearbox (1) from motor. 2. Pull adjusting ring (2) off gearbox. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 12 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 13 2. Disconnect plug (2) from motor. - Unlocking tool C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 13 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 14 If gear-wheels fall out of gearbox, see page 28. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 14 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 15 - Circlip pliers 10-25 mm 3. Remove disc (3). C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 15 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 16 1. Remove circlip (1) with circlip pliers and take out second disc. Tools: - Circlip pliers 8-10 mm C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 16 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 17 Disassembling gearbox housing (applies to: ASCM 14QX, ASCM 18QX, ASCM 18QM) 1. Pull shaft out of gearbox housing. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 17 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 18 2. Unscrew screw in quick-clamping drill chuck (left-handed thread). 3. With ratchet, turn chuck away from shaft. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 18 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 19 - Bolt, diameter 9, 5 mm - Internal puller - Arbor press C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 19 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 20 15 mm outer diameter 19 mm - Arbor press C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 20 of 40 FEIN retains all rights of disposal, such as copying and circulation...
-
Page 21: Assembly
~ 15 mm outer diameter 22 mm C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 21 of 40 FEIN retains all rights of disposal, such as copying and circulation... - Page 22 Tighten to tightening torque of 33 ± 3 Nm. 19 mm - Torque wrench C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 22 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 23 Always use a new screw. Torx T30 - Torque wrench C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 23 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 24 Assembling shaft (applies to: ASCM 14QX, ASCM 18QX, ASCM 18QM) 1. Insert shaft (1) in gearbox housing. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 24 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 25 4. Insert shaft barrier (4) in correct position (6). 5. Mount circlip (7) on shaft barrier. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 25 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 26 Engage fourth gear to make gearbox alignment easier. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 26 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 27 2. Fit adjusting ring (4) with groove (5) on prominence (6) of gearbox. - Phillips bit 1.4" PH 2 C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 27 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 28 If the gearbox falls apart, reassemble as shown in the picture. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 28 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 29 ASCM 14; ASCM 14QX; ASCM 18; ASCM 18QX; ASCM 18QM 7. Assembly Assembling gearbox C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 29 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 30 Always use a new plug for all assembly work involving the motor or switch. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 30 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 31 The motor must not turn or wobble after connecting. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 31 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 32 When routing cables, make sure motor cable (7) is not too close to fan wheel. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 32 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 33 3. Insert plug (3). 4. Position the nut (4 C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 33 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 34 Tighten to tightening torque of 1.2 ± 0.1 Nm. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 34 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 35 Assembling motor housing 1. Slide battery on to tool. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 35 of 40 FEIN retains all rights of disposal, such as copying and circulation...
-
Page 36: Troubleshooting
Torque shutting off at drilling level or too Adjusting ring is defective Replace adjusting ring early C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 36 of 40 FEIN retains all rights of disposal, such as copying and circulation... - Page 37 The test steps and nominal values for use with the test board are provided on the next page. C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 37 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 38 Switch not pressed: 0 Ω Switch pressed: 20 kΩ ± 4 kΩ C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 38 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 39 (proportional to potentiometer travel) Diode test 2.5V ±0.3V Pin 11 Pin 10 C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 39 of 40 FEIN retains all rights of disposal, such as copying and circulation...
- Page 40 ASCM 14; ASCM 14QX; ASCM 18; ASCM 18QX; ASCM 18QM 9. Anschlussplan C-SC_CSSM Version 1.0 08.06.2017 All rights reserved by FEIN, especially in case of industrial rights registration. Page 40 of 40 FEIN retains all rights of disposal, such as copying and circulation...
