Section E
34 - 16
Main Relief Valve (cont'd)
Assembly
Assembly is the reverse of the dismantling procedure.

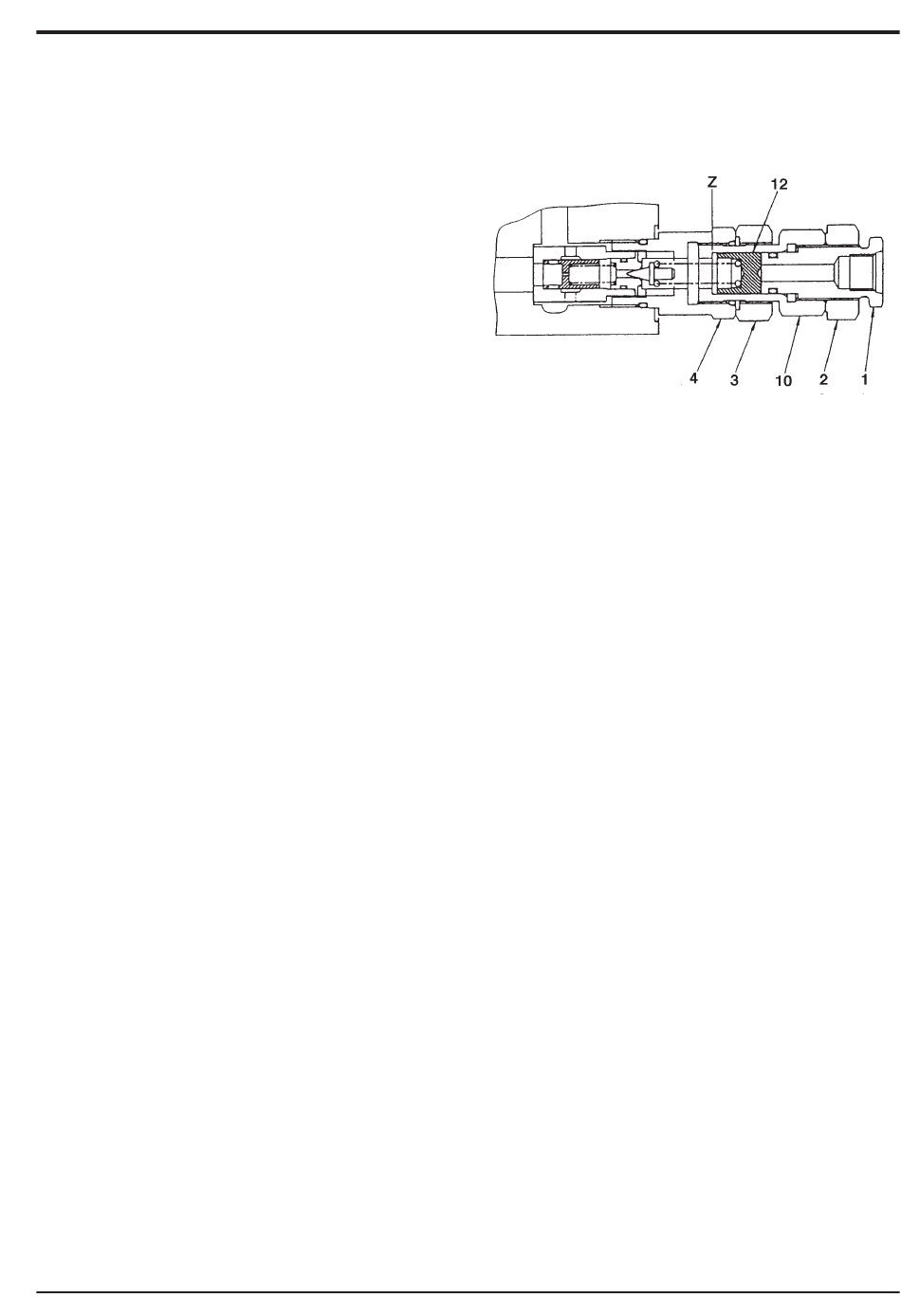

High Pressure Setting
1
Insert relief valve assembly into control valve housing
and tighten relief valve body 4.
2
Tighten down adjusting screw 1 until piston 12 seats
onto internal surface Z.
3
Adjust housing 10 until high pressure setting is correct
(see Pressure Testing).
4
Tighten locknut 3.
Low Pressure Setting
1
Slacken adjusting screw 1 and adjust until low pressure
setting is correct (see Pressure Testing).
2
Tighten locknut 2.
Torque Settings
2
58 Nm (43 lbf ft)
3
58 Nm (43 lbf ft)
4
58 Nm (43 lbf ft)
9803/6410
Hydraulics
Control Valve
Section E
34 - 16
JS01290
Issue 1
