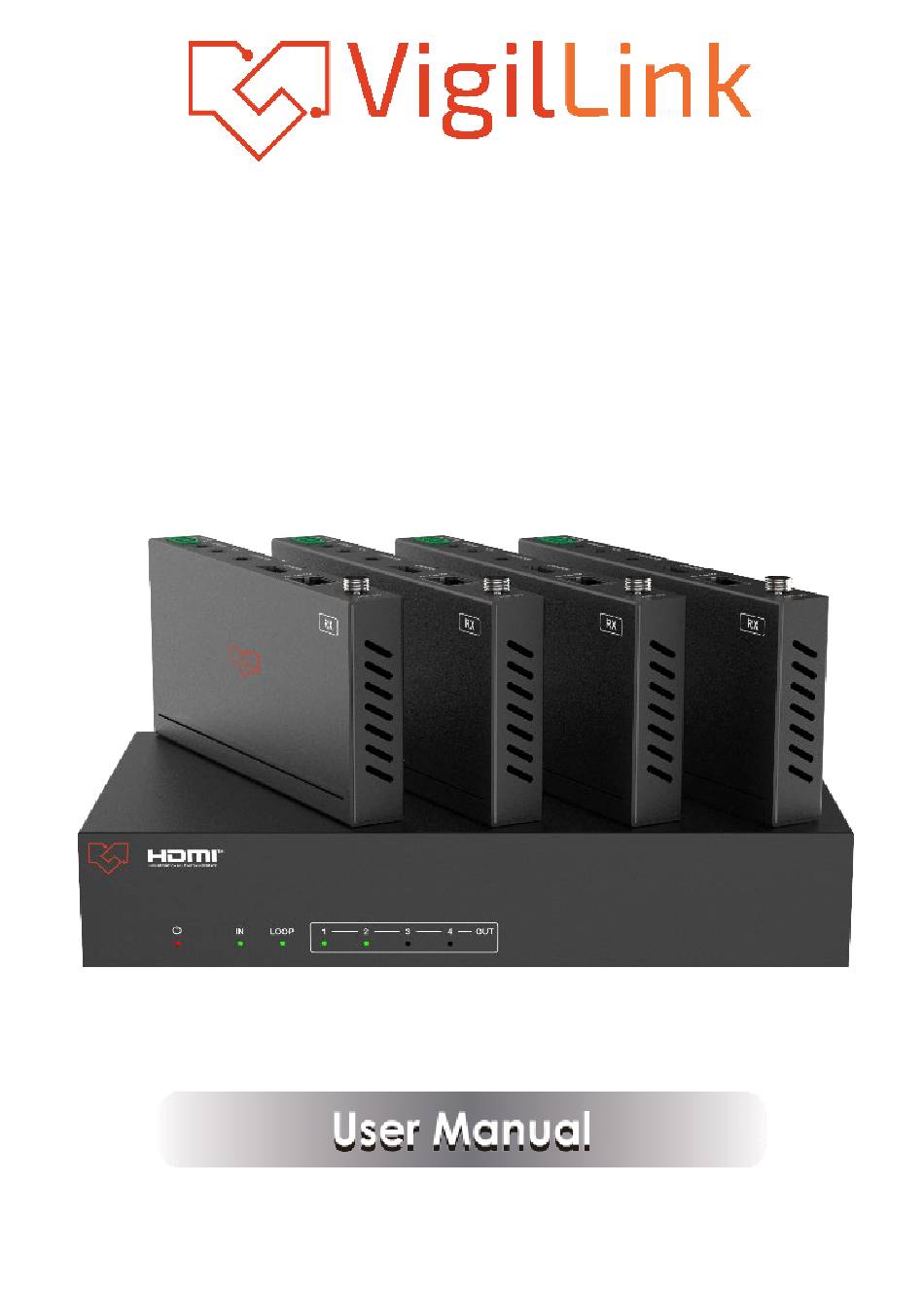

- Page 1 VLSP-14HT150 1x4 HDMI 2.0 Splitter over HDBaseT 150m 18Gbps VER 1.2...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This 18Gbps HDMI 1x4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 8-bit,10-bit,12-bit Color Depth (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master,... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 220mm (W) × 130mm (D) × 40mm (H) Dimensions Receiver: 140mm (W) × 65mm (D) × 18mm (H) Transmitter: 853g Weight Receiver: 246g Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption Operation... - Page 6 Rear Panel Name Function Description Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1, Firmware update; RS-232 2, Control the Splitter via RS-232 commands; 3, RS-232 signal pass-through (from transmitter to receiver or from receiver to the transmitter). Connect to the IR receiver cable, the IR receive signal IR IN will emit to the “IR OUT”...
-
Page 7: Hdbaset Receiver
Data Signal ▪ Illuminating: HDMI signal with HDCP. ▪ Flashing: HDMI signal without HDCP. Indicator lamp ▪ Dark: No HDMI signal. (Orange) Plug the DC 24V power supply into the unit and connect the adaptor to an AC outlet. (Note: The transmitter can DC 24V power the receiver via a CAT cable.) 5.2 HDBaseT Receiver... -
Page 8: Ir Pin Definition
AUDIO OUT Audio output port, connect to amplifer or speaker. Connect to the IR Receiver cable. The IR signal will send IR IN to the IR OUT port of the transmitter. Connect to the IR blaster cable, the IR signal is from IR IR OUT IN port of the transmitter. -
Page 9: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001... -
Page 10: Ascii Commands
7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on a PC to send ASCII commands to control the product. - Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable HDMI loop Set HDMI loop output out a stream stream on/off z=0~1(0: s HDMI stream 1! s HDMI stream enable Disable HDMI loop disable,1: enable) stream Enable HDMI loop Set HDMI loop output HDCP out HDCP enable...
- Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from the default EDID z, z=1~27 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D, HD Audio 7.1...
- Page 13 Command Code Function Description Example Feedback Default Setting RS-232 BYPASS Setting Set RS-232 port connects to RS-232 connects HDBT out1 Receiver RS-232 s rs232 bypass s rs232 bypass to HDBT OUT1 HDBT y! port, y=0~5( 0=all, HDBT 1! RS-232 not connect 1~4= HDBT out 1~4 5=NC) to HDBT OUT RS-232 connects...
-
Page 14: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -12-...
