VigilLink VLSP-12H20 User Manual

1x2 hdmi 2.0 splitter 18gbps
Hide thumbs

Advertisement

Table of Contents

VLSP-12H20
1x2 HDMI 2.0 Splitter 18Gbps
VER 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLSP-12H20 and is the answer not in the manual?

Questions and answers

Related Manuals for VigilLink VLSP-12H20

Summary of Contents for VigilLink VLSP-12H20

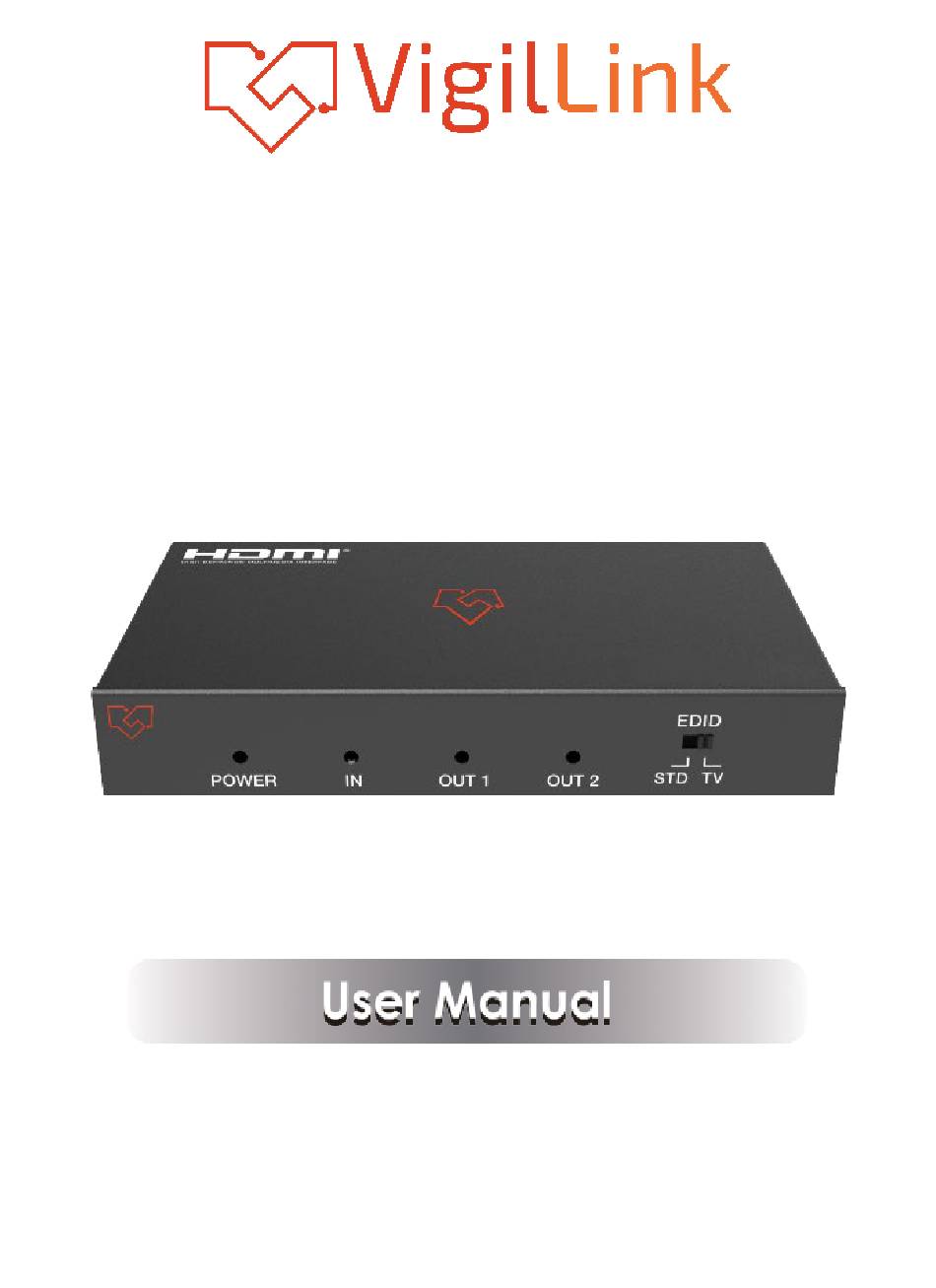

  • Page 1 VLSP-12H20 1x2 HDMI 2.0 Splitter 18Gbps VER 2.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shaking, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction 1x2 HDMI 18Gbps Splitter is an advanced solution for synchronizing HDMI content to 2 HDMI outputs. It provides high- performance audio and video up to 4K2K@60Hz (4:4:4) and can receive, retiming, and transmit up to 18Gbps of bandwidth with no data loss.

  • Page 4: Specifications

    4. Specifications Technical Video Bandwidth 600MHz/18Gbps Input Port 1×HDMI Type A (19-pin female) Output Ports 2×HDMI Type A (19-pin female） Video Resolution 4K2K@24/25/30/60Hz Human body model—±8kV (Air-gap discharge) ESD Protection &±4kV (Contact discharge) Mechanical Chassis Material Metal Silkscreen Color Black Power Consumption Weight...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions Name Function Description This blue LED illuminates when the device is Power connected to the power supply. This blue LED illuminates when the Source is IN LED connected to the device. These blue LEDs indicate which HDMI output port is connected to an active TV/ display/monitor.

  • Page 6: Application Example

    Connect each HDMI output to an HDMI display for HDMI OUT simultaneous distribution, or cascade the production to another splitter to extend the operating distance. Connect the input port to the HDMI output of your 7 HDMI IN source devices, such as a DVD player or set-top box with an HDMI cable.
