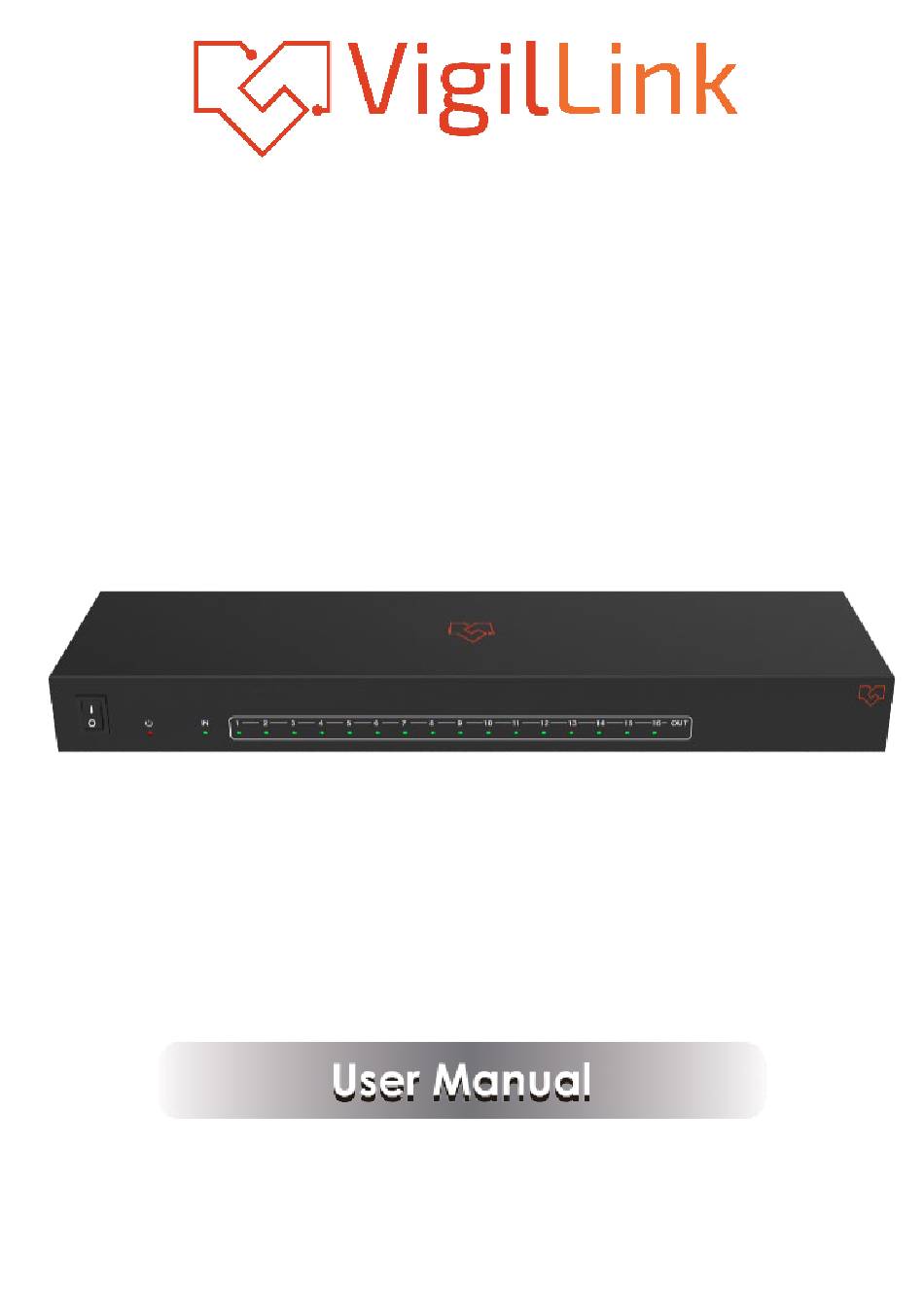

- Page 1 VLSP-16H20 1x16 HDMI 2.0 Splitter 18Gbps VER 1.1...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction The 18Gbps 1x16 HDMI Splitter can distribute 1 HDMI source signal to 16 HDMI display devices synchronously. Supported video resolution is up to 4K2K@50/60Hz 4:4:4. The product supports advanced EDID management. It also supports HDR, HDR10, HDR10+, HLG, and Dolby vision functions.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@50/60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0 Support HDR, HDR10, HDR10+, HLG, Dolby vision PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby- HDMI Audio Formats TrueHD, DTS-HD...
- Page 5 5. Operation Controls and Functions Name Function Description POWER switch Press this switch to power on/off the device. When the device is powered on, the power LED POWER LED will be on. The green LED will be on when tto he HDMI IN port IN LED connects an active source device.
- Page 6 SERVICE port Firmware update port.
- Page 7 6. EDID Mode The defined EDID setting list of the product is shown below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001...
- Page 8 7. Application Example...
