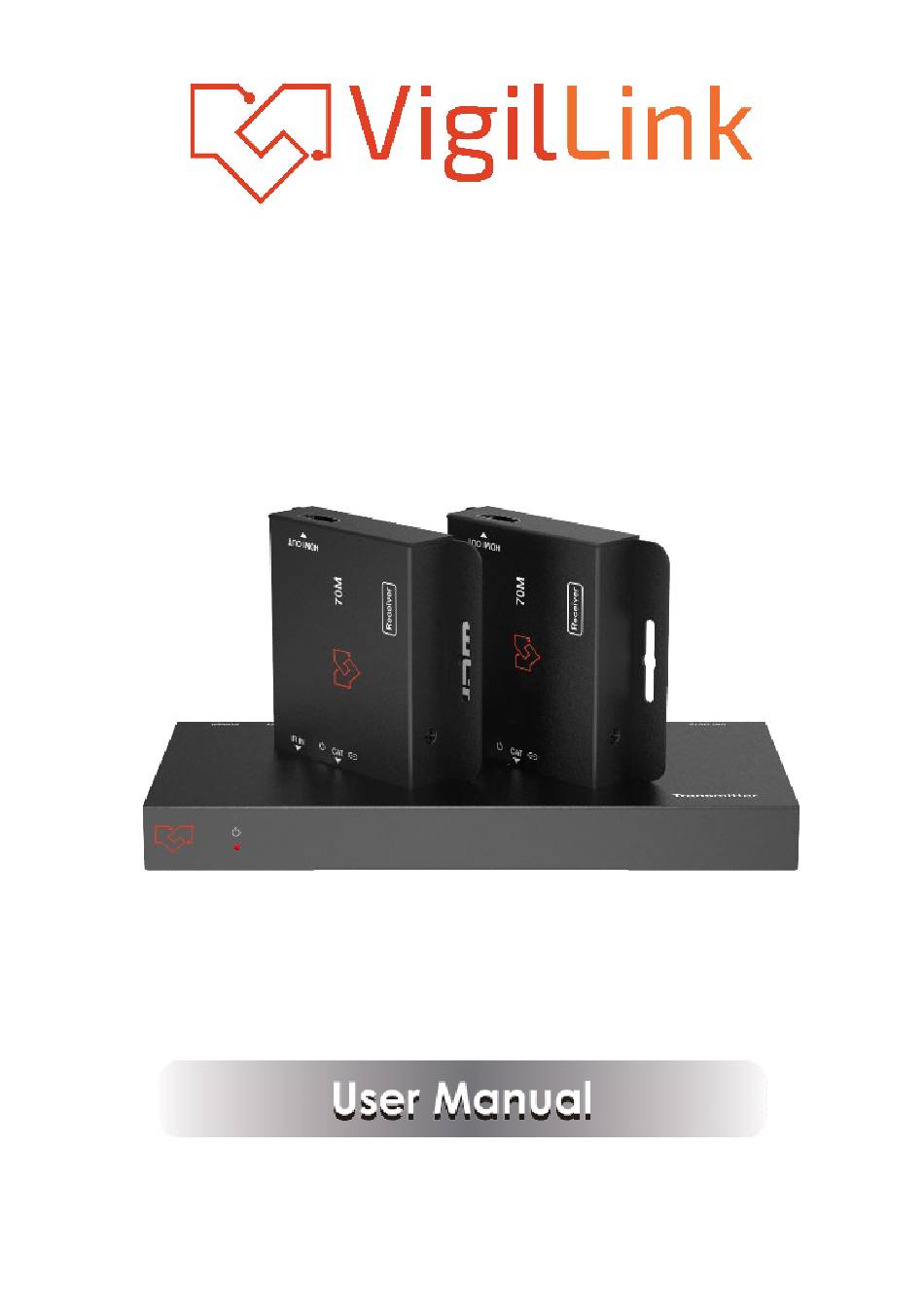

- Page 1 VLSP-12CTH14 1x2 HDMI 1.4 Splitter over CAT 70m 10.2Gbps VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This HDMI 1x2 Splitter can distribute 1 HDMI source signal to any 2 display devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with 1 HDMI input, 1 HDMI loop output, and 2 CAT outputs. The HDMI signal transmission distance can be extended up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 297MHz/10.2Gbps Video Resolution 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4) Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K30Hz) Color Space RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio Formats Audio Human body model—±8kV (Air-gap discharge) &... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel HDMI OUT HDMI IN IR OUT EDID UPDATE DC 12V POWER CAT OUT2 CAT OUT1 Name Function Description The red power LED will be on when the Transmitter is POWER LED powered on. CAT OUT (1~2) Connect to the CAT port of the Receiver with a CAT6 cable. - Page 6 Press the switch to power on/off the device (“-” for on, POWER “o” for off). Switch...
-
Page 7: Receiver Panel
5.2 Receiver Panel HDMI OUT IR IN 4 3 5 Name Function Description HDMI signal output port. Connect to an HDMI display HDMI OUT A device such as HDTV. Connect to the IR receiver cable; the IR signal will emit to IR IN the IR OUT port of the transmitter. -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver IR Blaster IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; When the angle between the IR receiver and the remote control is ±... -
Page 9: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown below: EDID Mode EDID Description 0000 1080P, 2CH AUDIO 0001 1080P, DOLBY/DTS5.1 0010 1080P, HD AUDIO 0011 1080i, 2CH AUDIO 0100 1080i, DOLBY/DTS5.1 0101 1080i, HD AUDIO 0110 3D,1080P, 2CH AUDIO 0111... -
Page 10: Application Example
7. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
