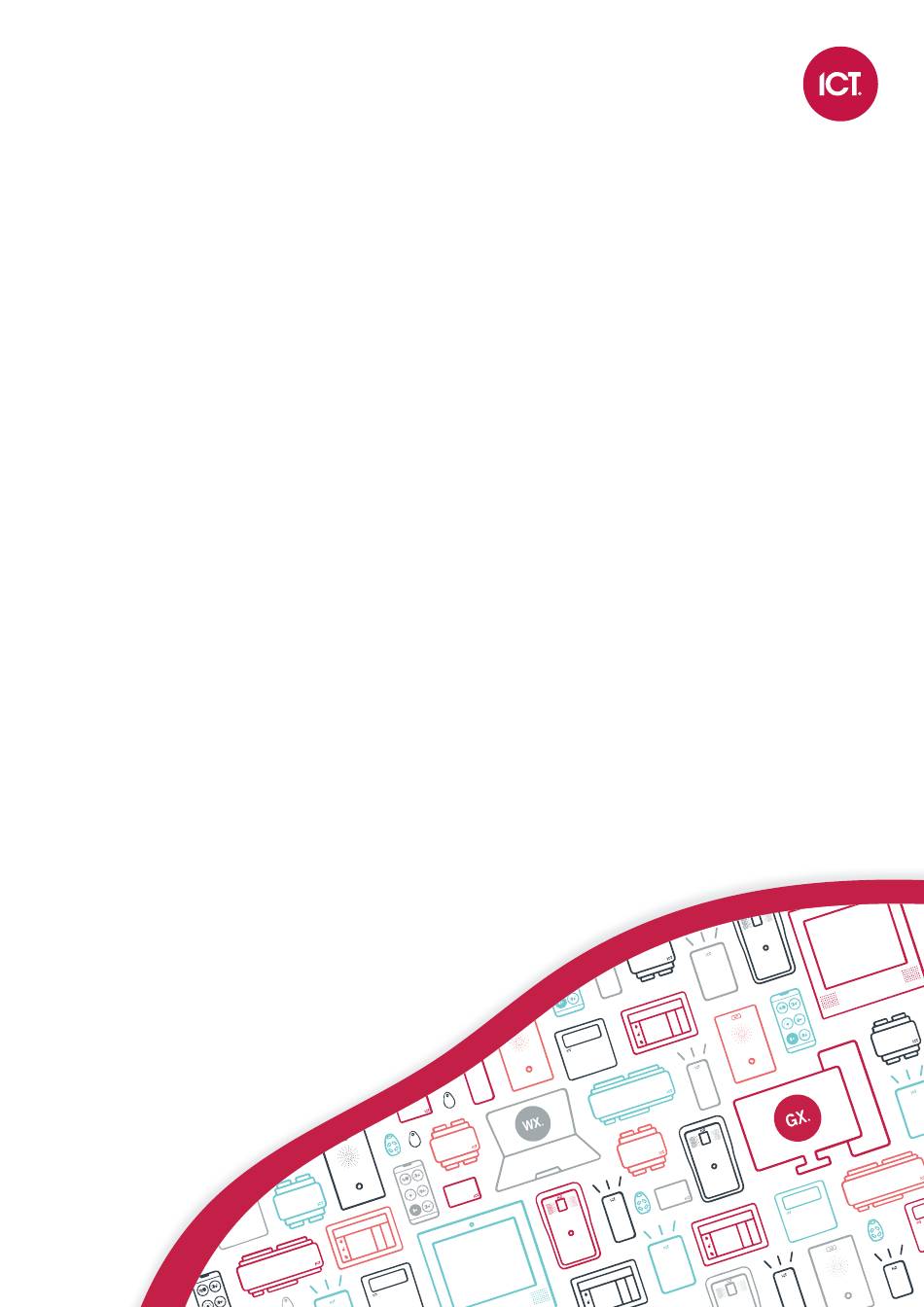

  • Page 1 ICT Card Reader Configuration Guide...
  • Page 2 (electronic or mechanical), for any purpose, without the express written permission of Integrated Control Technology Limited. Designed and manufactured by Integrated Control Technology Limited, Protege® and the Protege® Logo are registered trademarks of Integrated Control Technology Limited. All other brand or product names are trademarks or registered trademarks of their respective holders.

  • Page 3: Table Of Contents

    Config Example: Set Wiegand Output Mode Config Example: Firmware Update Mode Config Example: Factory Default Config Example: Custom Credential MIFARE Config Card Prerequisites Config Card Settings Basic Settings Advanced Settings Programming a Card Reader 125kHz Programming Card ICT Card Reader | Configuration Guide...
  • Page 4 Prerequisites Entering Programming Mode 125kHz Programming 125kHz Reading Mode Wiegand Output Format LED Function Intelligent Tamper Mode Enable ASK (EM) Cards PIN Data Interface PSK Unscramble PSK Enable Factory Default Disclaimer and Warranty ICT Card Reader | Configuration Guide...

  • Page 5: Introduction

    Support for OSDP (Open Supervised Device Protocol) communication with secure channel protocol ⦁ Configurable LED strip: 2 color control via external LED wiring, 16 color selectable for Protege GX function codes and other features (programming requires RS-485 connection or Protege Config App) ⦁...

  • Page 6: Updating Card Reader Firmware

    Put the reader into boot mode by connecting the blue, orange and brown wires to the black (N-) wire. Instead of shorting the wiring sequence, you can also put ICT readers into boot mode by applying the Protege Config App Firmware Update Mode or TLV config 080100 to the reader within 2 minutes of startup.

  • Page 7: Protege Config App

    Config App. If you do not have a Protege mobile credential, contact ICT Customer Services to be issued one for use with the Config App. You can make a new app account after installing the app (see next page).

  • Page 8: Installing The Config App

    Protege Config App data is linked to your account and not to the device the app is installed on. This enables you to log in to the app on multiple devices and retain your settings.

  • Page 9: Config App Navigation And Settings

    Set the Bluetooth Proximity (read distance for this device). Scan to Unlock a reader. This feature transmits your credential to allow convenient testing when programming reader functions, without needing to switch to the Protege Mobile App. Logout: Logs you out of the Config App.

  • Page 10: Reader Configuration

    If you do not have a credential profile, contact ICT Customer Services. Config Management A config is a configuration profile consisting of any number of TLV (Type Length Value) settings that provide configuration programming for ICT card readers.
  • Page 11 This cannot be undone. Once the reader is defaulted you will need to reapply all configuration programming. OSDP Install Mode: Put the reader into OSDP installation mode so that it is ready to accept initiation of a secure channel session from the connected controller or module. ICT Card Reader | Configuration Guide...
  • Page 12 The 125kHz Formats TLV is used to enable/disable specific 125kHz card types. 125kHz Formats: ⦁ Postech Guardtek Em41xx PSK card formats require specific hardware to operate. Guardall G-ProxII Guardall G-ProxII card formats require specific hardware to operate. ICT Card Reader | Configuration Guide...
  • Page 13 Serial: This mode is valid for reader firmware up to and including version 1.04.260 OSDP: This mode is valid for reader firmware 1.04.261 and above The reader output mode automatically switches to ICT Smart Reader (RS485) when connected with RS-485 wiring configuration.
  • Page 14 AV2 diversification ISO7816 (NFC): App ID The DESFire application ID to access ⦁ AES Keyslot: The keyslot to use for AES authentication ⦁ ⦁ File Number: The file number to access in the DESFire application ICT Card Reader | Configuration Guide...
  • Page 15 Enable the reader to read PSK formatted Kantech, Tecom or Motorola cards for PSK capable readers. PSK card formats require specific hardware to operate. ⦁ PSK Decryption: Decoding: Reads raw data. Does not attempt to decrypt. Kantech Tecom Motorola T1 ICT Card Reader | Configuration Guide...
  • Page 16 The string must be in ASCII format, up to a maximum of 64 ASCII characters. For example, %64r sets the format to 64 bit raw, so the reader will read the first 64 bits of data off the card. ICT Card Reader | Configuration Guide...
  • Page 17 Note that the color displayed by the reader LEDs will not perfectly match the screen of your device. Index: Defines the color slot to be updated. Each index corresponds to a particular function of the card reader. ⦁ ICT Card Reader | Configuration Guide...
  • Page 18 The color slot index and the default color assigned to each slot are outlined in the table below. This table applies to raw TLVs programmed directly on the card reader only. Configurations programmed in Protege GX are adjusted by 1 for the controller's 'off' index (0), such that Red=1 through to Crimson=16. Color Slot Index...
  • Page 19 Hex TLV with hex code 200100. Reader Address This TLV is only valid for protocols which support addressing (ICT RS485, OSDP or Smart Serial). The Reader Address TLV allows you to program the reader's address configuration. This may be required to set a specific address when connecting to third-party systems.
  • Page 20 Value: The variable-sized series of bytes containing the data that will be applied to the configuration. This setting requires high level understanding of TLV programming and should not be used unless directed by documentation or the ICT Technical Support team. This setting has the potential to render a reader unusable. Keyslot There is currently no preconfigured config app TLV for loading custom encryption keys for non-mobile credentials...

  • Page 21: Programming A Card Reader

    Once the required reader config is available in the Config App, it can be applied to individual readers via Bluetooth® communication. ICT card readers can only be programmed within 2 minutes of startup. In order to program the reader you will need to disconnect power and complete programming within 2 minutes of powering up.
  • Page 22 Previous programming may also need to be reapplied if there is a chance that earlier programming was unsuccessful. ICT Card Reader | Configuration Guide...

  • Page 23: Config Programming Examples

    The following programming example demonstrates how to create a config that enables the card reader to use the OSDP communication protocol. Log in to the Protege Config App, using your app account. Select your Credential Profile. Add a new Reader Configuration called OSDP Output Mode.

  • Page 24: Config Example: Osdp Install Mode

    Config Example: Reader Address For protocols which support reader addressing, the address of a reader can be programmed via TLV configuration. This TLV is only valid for protocols which support addressing (ICT RS485, OSDP or Smart Serial). ⦁ This can be used to configure an RS-485 reader as an entry (0) or exit (1) reader.

  • Page 25: Config Example: Enable Dual Led Mode

    Config Example: Enable Dual LED Mode By default, ICT card readers operate in single LED mode (when wired in Wiegand configuration). To enable dual LED mode you need to change the reader programming. Dual LED mode requires the reader to be wired with both the orange and brown LED control lines connected.

  • Page 26: Config Example: Iso14443 Gain For Ev2 Tags

    6. Some card reader firmware versions do not contain the required ISO14443 gain configuration by default, so it is necessary to program the configuration. Log in to the Protege Config App, using your app account. Select your Credential Profile.

  • Page 27: Config Example: Firmware Update Mode

    Config Example: Firmware Update Mode Before firmware can be updated on ICT card readers, the reader must be put into firmware update mode, also know as boot mode. This must be the first TLV in the config. Log in to the Protege Config App, using your app account.

  • Page 28: Config Example: Custom Credential

    Tap Add TLV and select Custom Card Format Slots. Set the Slot Number to 6. Tap Format and enter the format string 25363472. Custom card formats must be entered using ASCII code. 25363472 is the ASCII code for %64r (64 bit raw). ICT Card Reader | Configuration Guide...
  • Page 29 Format Slot: 6 (this is the slot where we stored our card format string) Save and Apply With all the components completed you can now Save the completed config. The new credential programming can be applied to the reader within 2 minutes of startup. ICT Card Reader | Configuration Guide...

  • Page 30: Mifare Config Card

    ICT customer services team using order code: PRX-ISO-CONFIG . Alternatively, cards can be configured using the ICT Encoder Client. This provides a flexible and convenient method for programming readers as and when needed. For information on the encoding process and...

  • Page 31: Advanced Settings

    Once the required Config Card is available, it can be used to easily program readers. ICT card readers can only be programmed within 2 minutes of startup. In order to program the reader you will need to disconnect power and complete programming within 2 minutes of powering up.

  • Page 32: 125Khz Programming Card

    125kHz Programming Card 125kHz capable card readers can be programmed using a 125kHz programming card. These cards can only be used to program ICT card readers which have the capability to read 125kHz cards. Prerequisites Using a 125kHz programming card to program a card reader requires a suitably configured 125kHz programming card.
  • Page 33 Continue programming additional settings, or leave the programming interface to time out. Programming Option Addresses Address Programming Options 125kHz Reading Mode Wiegand Output Format LED Function Intelligent Tamper Mode Enable ASK (EM) Cards PIN Data Interface PSK Unscramble PSK Enable Factory Default ICT Card Reader | Configuration Guide...

  • Page 34: 125Khz Programming

    Can only read HID programmed cards. Selecting this option disables the programming card. ICT & HID Can only read ICT and HID programmed cards ICT & POSTECH Can only read ICT and POSTECH programmed cards Can only read POSTECH and HID programmed cards. Selecting this option POSTECH &...

  • Page 35: Led Function

    The following options are available by badging the programming card six times to enter Address 6. Setting Function Max PIN (when using a reader module) ARK-501 99999999 26 Bit Wiegand Format 65535 4 Bit 99999999 4 Bit with Parity 99999999 ICT Card Reader | Configuration Guide...

  • Page 36: Psk Unscramble

    The following options are available by badging the programming card eight times to enter Address 8. Function Setting Disabled Enabled Factory Default This resets all of the device's settings. To reset the reader, badge the 125kHz programming card twelve times to enter Address 12. ICT Card Reader | Configuration Guide...

  • Page 37: Disclaimer And Warranty

    Integrated Control Technology Ltd nor its employees shall be liable under any circumstances to any party in respect of decisions or actions they may make as a result of using this information. In accordance with the ICT policy of enhanced development, design and specifications are subject to change without notice.
  • Page 38 In accordance with the ICT policy of enhanced development, design and specifications are subject to change without notice.
