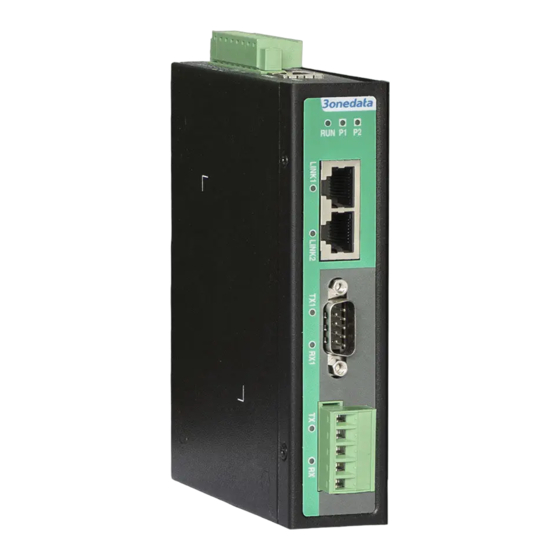

IGW1111/IGW1112/IGW1114 Series
Industrial Modbus Gateway
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website: www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the device for the first time.
1.
Modbus Gateway
2.
Straight-through cable
3.
DIN-Rail mounting kit
4.
Certificate
5.
Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series are managed DIN-Rail industrial Modbus
gateways. The models are:
Model I.
IGW1111-1DI(3IN1)-DB (2 100M copper ports + 1
3IN1 serial port + 2 12~48VDC power supplies)
Model II.
IGW1112-2DI(3IN1)-DB (2 100M copper ports + 2
3IN1 serial ports + 2 12~48VDC power supplies)
Model III. IGW1114-4DI(3IN1)-DB (2 100M copper ports + 4
3IN1 serial ports + 2 12~48VDC power supply)

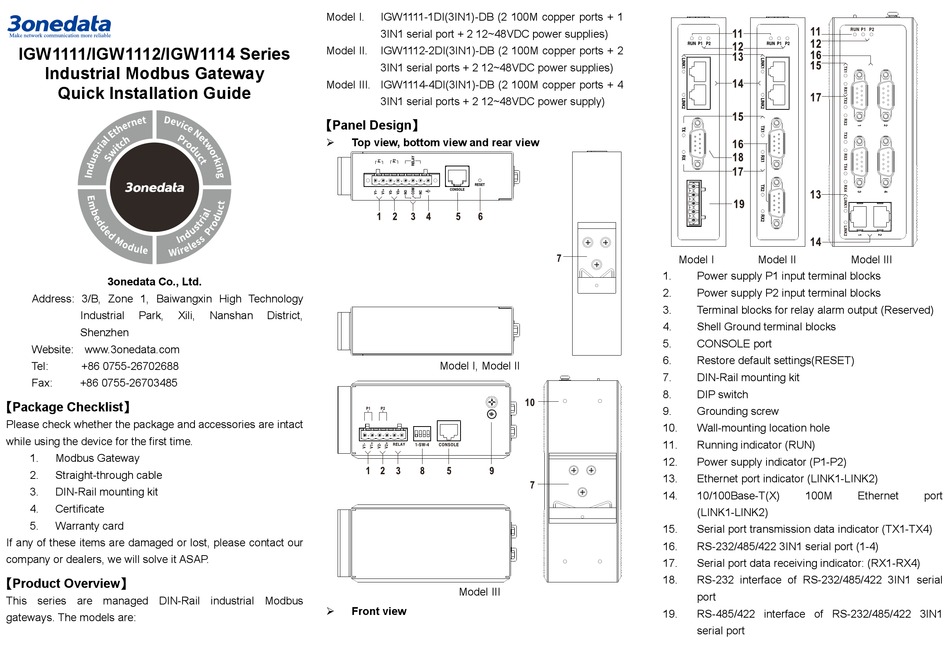

【Panel Design】
Top view, bottom view and rear view
Nanshan
District,
Front view
Model I, Model II
Model III
Model I
Model II
1.
Power supply P1 input terminal blocks
2.
Power supply P2 input terminal blocks
3.
Terminal blocks for relay alarm output (Reserved)
4.
Shell Ground terminal blocks
5.
CONSOLE port
6.
Restore default settings(RESET)
7.
DIN-Rail mounting kit
8.
DIP switch
9.
Grounding screw
10.
Wall-mounting location hole
11.
Running indicator (RUN)
12.
Power supply indicator (P1-P2)
13.
Ethernet port indicator (LINK1-LINK2)
14.
10/100Base-T(X)
100M
(LINK1-LINK2)
15.
Serial port transmission data indicator (TX1-TX4)
16.
RS-232/485/422 3IN1 serial port (1-4)
17.
Serial port data receiving indicator: (RX1-RX4)
18.
RS-232 interface of RS-232/485/422 3IN1 serial
port
19.
RS-485/422 interface of RS-232/485/422 3IN1
serial port
Model III
Ethernet
port
