Amphenol
Industrial Operations
Amphenol Technology (Zhuhai) Co., LTD.
The Assembly Work Instruction
5.7mm Surlok Plus Receptacle Connector Screw Type
5.7mm Surlok+ 插座连接器螺纹类
C10-730187-X2XX
Amphenol Technology (Zhuhai) Co., LTD
No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040
http://www.amphenol-industrial.com
装配作业指导书
Document NO. : ATZ-WI-201906-002
Date: 20190604
Rev.
F
Advertisement
Table of Contents
Related Manuals for Amphenol C10-730187-X2XX
Summary of Contents for Amphenol C10-730187-X2XX
- Page 1 Amphenol Document NO. : ATZ-WI-201906-002 Date: 20190604 Industrial Operations Amphenol Technology (Zhuhai) Co., LTD. Rev. The Assembly Work Instruction 装配作业指导书 5.7mm Surlok Plus Receptacle Connector Screw Type 5.7mm Surlok+ 插座连接器螺纹类 C10-730187-X2XX Amphenol Technology (Zhuhai) Co., LTD No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040...

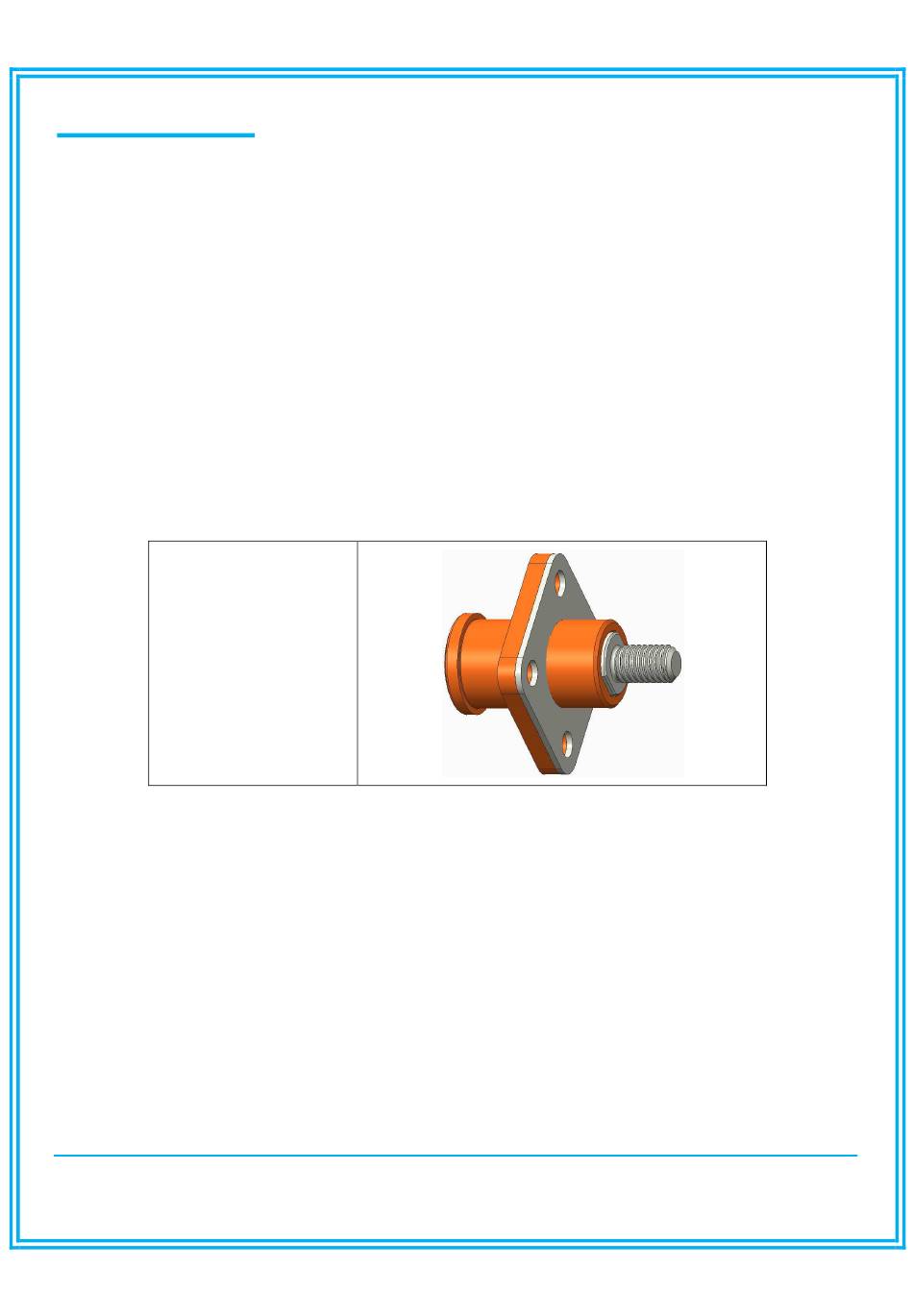

- Page 2 Part 1: Package contents 第一部分：包装清单 Receptacle connector 插座连接器 Notes: There will be no gasket when no sealing requirement. 备注:无防水要求时不提供橡胶垫.
- Page 3 Part 2: Receptacle assembly 第二部分：插座组装 Step 1: Tighten M6 nut onto Busbar (recommended torque is 1.5~2.0N.m) 步骤1：拧紧M6螺母 (推荐扭矩1.5~2.0N.m） a: Receptacle tail (studs side) pass through the hole of mounting panel 插座尾部(螺柱)穿入安装面板孔内 b: Studs pass through copper busbar and washer and nut in proper order 螺柱依次穿入铜排,防松垫圈,螺母...
- Page 4 Step 2: Tighten receptacle onto the panel with M4 bolts (recommended torque is 0.4~0.7N.m) 步骤2：使用M4螺栓将插座固定在面板上(推荐扭矩0.4~0.7N.m) (1. Recommended M4 bolts refer to QB/T70.2-2015） 推荐使用QB/T70.2-2015标准的M4螺栓。 (2. Recommended M4 Spring washer refer to BS 4464:1969(2004) ) 推荐使用BS 4464:1969(2004)标准的M4弹簧垫片。...
