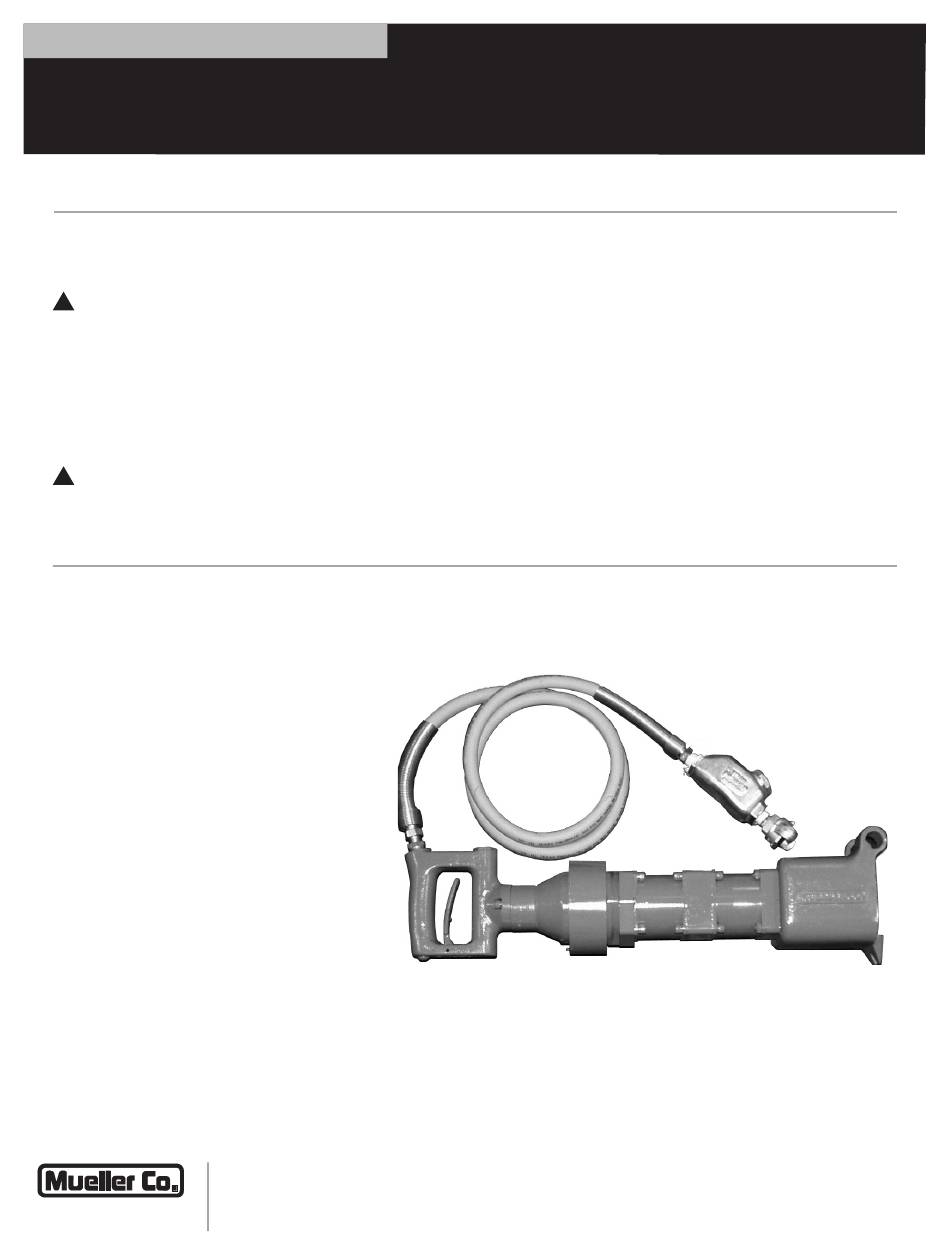

O P E R A T I N G I N S T R U C T I O N S
Mueller
H-614 Air Power Operator
®

GENERAL

This publication addresses some of the safety issues when operating this machine. Neglecting to follow these recommendations
may pose serious hazards or result in failure of equipment. The operator of this machine must have access to, have read, and fully
understand this document and the recommendations and operating instructions for the H-614 Air Power Operator.
!
WARNING: The operator of this machine must adhere to the following instructions to reduce the possibility of misuse
of the machine or accident. Failure to observe these instructions and the following warnings could result in serious
bodily injury.
Always wear eye and hearing protection when operating this machine.
DO NOT use damaged, frayed, loose or deteriorated air hoses or fittings.
Always turn off the hydraulic supply and disconnect the air supply hose before installing, removing or adjusting any
accessory on this machine, or before performing maintenance on this machine.
!
CAUTION: DO NOT modify this machine. Doing so could void the warranty and create a safety hazard.

SPECIFICATIONS FOR H-614 AIR POWER OPERATOR

• Weight (Operator Only) – 28 Lbs.
(13 kg)
• Max. HP @ RPM (Motor) – 4.8 @
5000
• Free Speed RPM (Motor) – 5000
(governed)
• Max. HP @ RPM (Output Shaft) –
4.4 @120
• Free Speed RPM (Output Shaft) –
120 (governed)
• Stall Torque – 375 Ft.-Lbs.
• Air Consumption @ 90 psig –
90 SCFM
• Inlet Connection –
/
" Quick-
3
4
Disconnect
• Reversible – NO
• Decibels (A Scale) – 85 db
• Lubricator Supplied – YES
Reliable Connections
TM
• Hinged Storage Chest Supplied –
YES
• Shipping Weight with Lubricator and
Chest – 65 Lbs. (26 kg)
Water (U.S.)
Water (Canada)
1.800.423.1323
1.705.719.9965
www.muellercompany.com
www.muellercanada.com
moreinfo@muellercompany.com
more-info@muellercanada.com
Gas (North America)
International
1.800.798.3131
1.423.490.9555
www.muellergas.com
www.mueller-international.com
moreinfo@muellercompany.com
international@muellercompany.com
