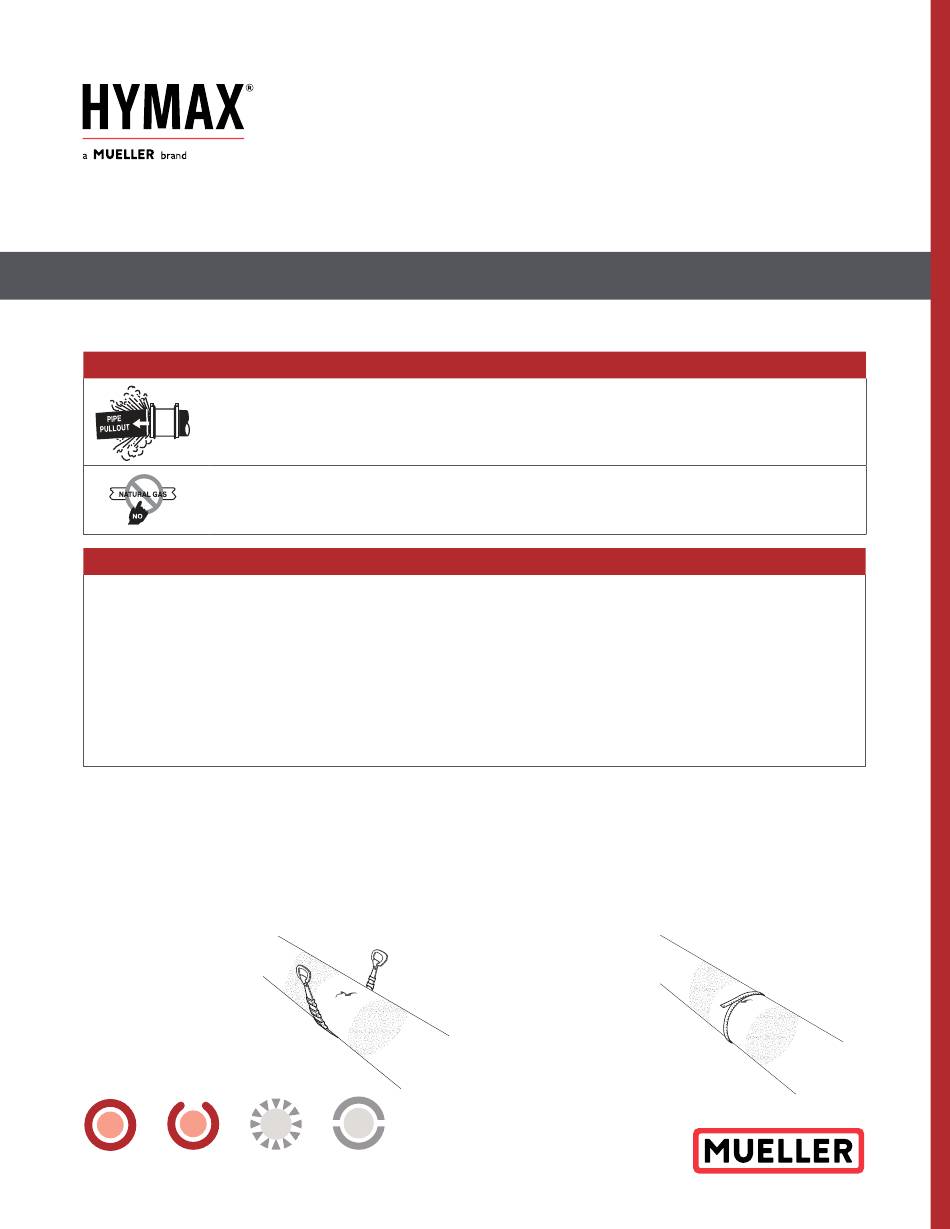

HYMAX VERSA
Installation Instructions
WARNING
This product does not restrain axial pipe movement. Proper anchorage of the pipe is required if this product is used as a
coupling. Failure to anchor the pipe ends could result in the escape of line content, and may cause property damage, serious
injury or death.
Caution: This product is not intended for use on natural gas piping, or any other type of gas piping. To do so could result in
escaping gas that could ignite and cause property damage, serious injury or death.
IMPORTANT
•
The HYMAX Versa wrap-around coupling may be used as a non-restraining stab type coupling or as a wrap-around repair clamp.
Do not disassemble the product.
•
Lubrication of product and pipe. Except steel, PVC, and PE pipes, all rough-surfaced pipes must be lubricated with a water-based lubricant in
order to achieve a proper seal. DO NOT lubricate PVC, Steel or PE pipe surface.
•
DO NOT lubricate bolts and nuts. Bolts are pre-lubricated with a MAG (Molecular anti-galling) coating.
Greasing bolts or nuts voids manufacturer's warranty.
•
Use torque wrench to tighten the bolts. A torque wrench will assure a proper torque has been applied to the HYMAX Versa.
DO NOT use other tools to tighten the coupling's bolts!
•
Transition capability. The HYMAX Versa can transition between two pipe ends with a maximum outside diameter difference as
indicated on the product label.
•
Pipe stiffeners or inserts are required when used as a coupling to connect PE and HDPE pipes
PREPARE PRODUCT AND PIPE FOR INSTALLATION
WHEN HYMAX VERSA IS USED AS A WRAP-AROUND REPAIR COUPLING. (FOR CONNECT
FUNCTION SEE PAGE 3)
STEP 1: CLEAN AND DESCALE THE PIPE
MAKE SURE THAT:
•
The pipe is clear from
debris and defects.
•
The pipe is not out of
round and is free of
scratches, dents, flats.
JOIN
REPAIR
RESTRAIN
®
(Sizes 1.5"-70", Length 11")
STEP 2: MEASURE THE PIPES' OD TWICE
MAKE SURE THAT:
•
The product working
range (as indicated on
the product's label) will
fit the pipe properly.
TAP
