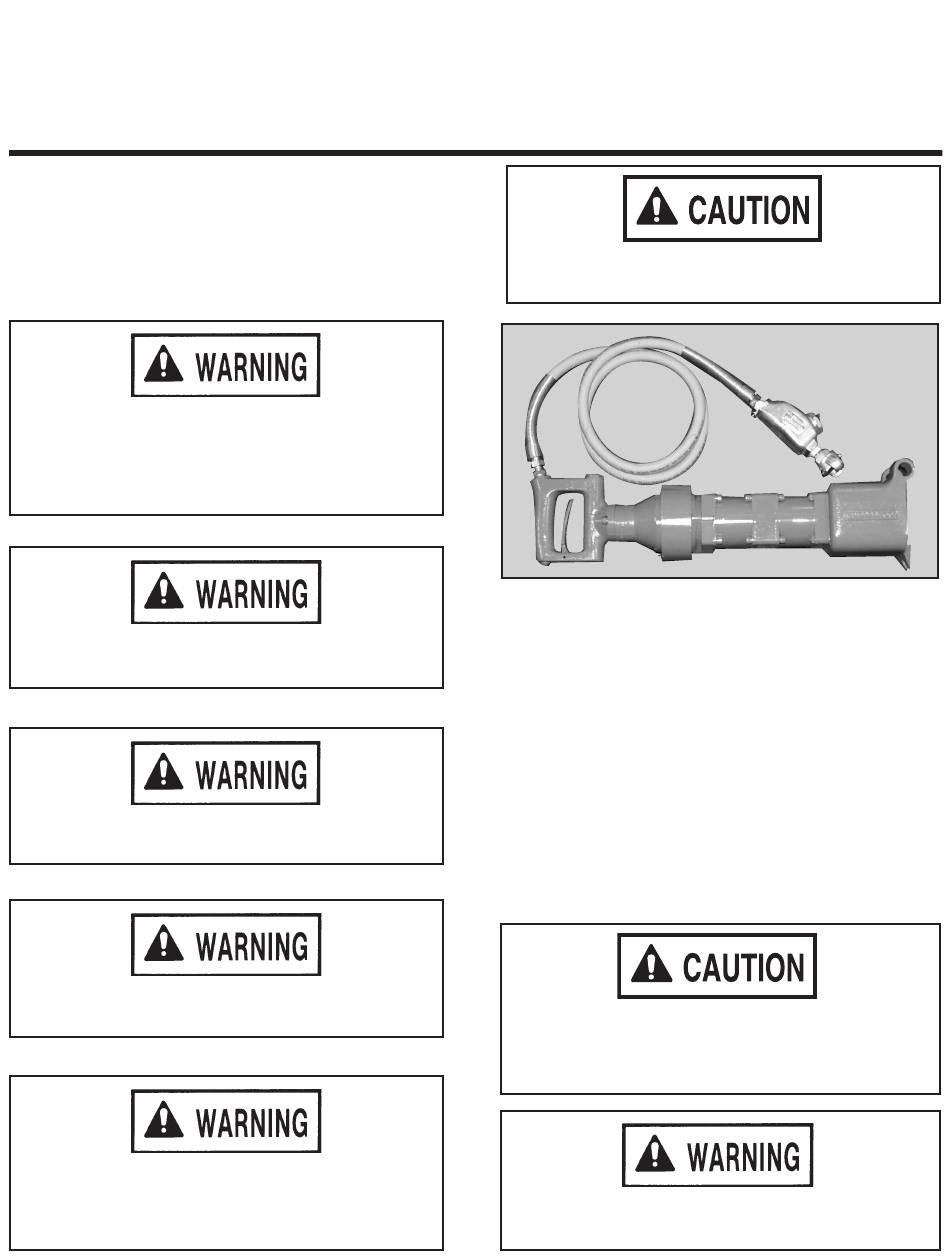

OPERATION
AND MAINTENANCE
INSTRUCTIONS
General instructions:
the safety issues when operating this machine. Neglecting to
follow these recommendations may pose serious hazards or
result in failure of equipment. The operator of this machine
must have access to, have read, and fully understand this
document and the recommendations and operating instructions
for the H-614 Air Power Operator.
WARNING -
The operator of this machine must adhere
to the following instructions to reduce the possibility of
misuse of the machine or accident. Failure to observe
these instructions and the following warnings could result in
serious bodily injury.
WARNING -
Always wear eye protection when
operating or performing maintenance on this machine.
WARNING -
Always wear hearing protection when
operating this machine.
WARNING -
Do not use damaged, frayed, loose or
deteriorated air hoses or fittings.
WARNING -
Always turn off the air supply and
disconnect the air supply hose before installing, removing
or adjusting any accessory on this machine, or before
performing maintenance on this machine.
This publication addresses some of
POWER OPERATOR
CAUTION -
Do not modify this machine. Doing so could
void the warranty and create a safety hazard.
Specifications for H-614 Air Power Operator:
Weight (Operator Only) -- 28 LBS. (13 kg)
Max. HP @ RPM (Motor) -- 4.8 @5000
Free Speed RPM (Motor) -- 5000 (governed)
Max. HP @ RPM (Output Shaft) -- 4.4 @120
Free Speed RPM (Output Shaft) -- 120 (governed)
Stall Torque -- 375 Ft.-LBS.
Air Consumption @ 90 psig -- 90 SCFM
3
/
"
Inlet Connection --
Quick-Disconnect
4
Reversible -- NO
Decibels (A Scale) -- 85 db
Lubricator Supplied -- YES
Hinged Storage Chest Supplied -- YES
Shipping Weight w/Lubricator & Chest -- 65 LBS. (26 kg)
When operating this machine:
CAUTION -
Pneumatically driven power tools are not
generally insulated against coming in contact with sources
of electrical current. Take necessary precautions if sources
of electrical current are nearby.
WARNING -
Operate this machine at 90 psig (6.2 bar/621
kPa) air pressure.
MUELLER
®
H-614 AIR
