Remote Rv Generator Start Drawing - Atkinson Electronics GSCM-mini Manual

GSCM-mini-d
The GSCM-mini-d can be used to replace a typical remote generator control console that is mounted on the dash of a
motorhome. Instead of a large console and cable, use a small 16 to 18 gauge 4 wire signal cable, an on-off switch with built in
lamp and a separate 12VDC fault lamp. When the remote switch is turned on, the GSCM-mini starts the generator. After the
generator starts and comes up to speed the run LED lights on the GSCM-mini and turns on the remote start switch lamp.
If the generator fails to start or fails while commanded to run the fault LED on the GSCM-mini lights along with the remote fault
12VDC lamp. Turning off the power to the GSCM-mini resets the fault condition and it is ready to receive another start command.
See page 5 for a typical 3 or 4 wire generator hookup. Check your owner's manual for the electrical diagram to know if the
GSCM-mini (3 or 4 wire) 2 relay contact start/stop will work with your generator.
www.atkinsonelectronics.com
800.261.3602

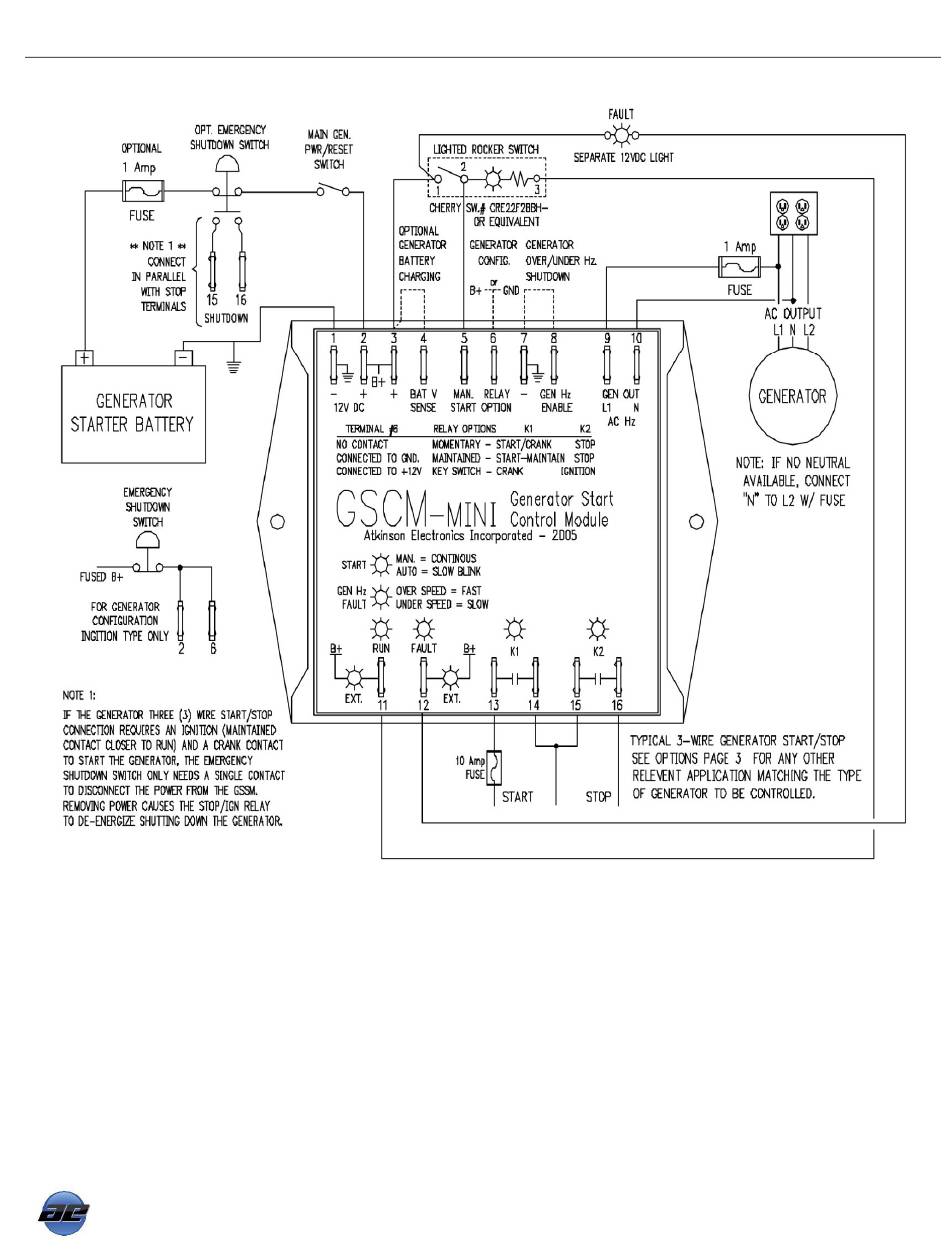

Remote RV Generator Start Console Replacement Example
