IMPORTANT!
CURRENT IEE REGULATIONS: THE SERIES 7 SHOULD BE INSTALLED BY A QUALIFIED
ELECTRICIAN, IN ACCORDANCE WITH THE RECOMMENDATIONS LAID DOWN BY THE HVCA AND SOUND
ENGINEERING PRACTICE. A COMPETENT PLUMBER MUST CARRY OUT THE ASSEMBLY AND INSTALLATION
OF ANY WATER METERS AND VALVES. ANY DAMAGES INCURRED DUE TO IMPROPER INSTALLATION ARE
NOT COVERED UNDER WARRANTY.
ATTENTION: IT IS IMPORTANT TO STRICTLY FOLLOW THESE
INSTRUCTIONS IN FULL. THE 3V LITHIUM BATTERY MUST ONLY BE
CONNECTED AFTER MAINS POWER. FAILURE TO DO THIS WILL RESULT IN
SYSTEM FAILURE.
NEW BUILD
INSTALLATION: DO NOT INSTALL VALVE ASSEMBLY PRIOR TO
FLUSHING THE SYSTEM AS THIS WILL CAUSE DEBRIS TO BECOME LODGED
IN THE FLOW SENOR AND WILL REQUIRE REPLACEMENT.
IMPORTANT: PLEASE READ THIS GUIDE CAREFULLY AND IN FULL BEFORE INSTALLING.
KEEP
CLEAN: DO NOT LET DEBRIS ENTER THE WATER METER(S) OR VALVE(S).
STORAGE:
KEEP IN A DRY PLACE PRIOR TO INSTALLATION TO AVOID POSSIBLE DAMAGE TO INTERNAL
COMPONENTS.
Dedicated technical helpline: 01226 397987
© 2022 Waterguard Services Limited, All Rights Reserved

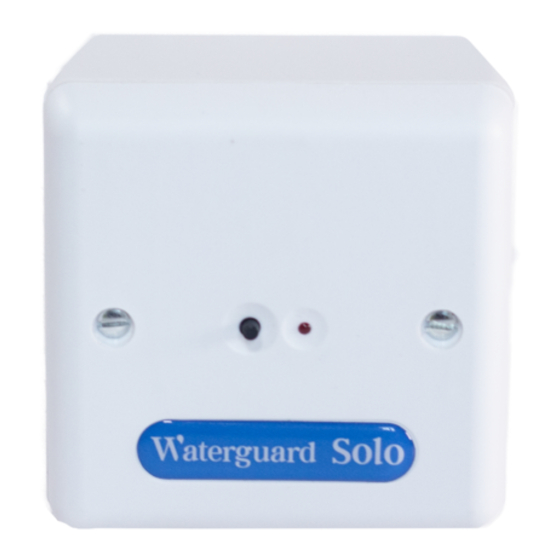

Waterguard Solo Installation Guide
Advertisement
Related Manuals for WATERGUARD SOLO
Summary of Contents for WATERGUARD SOLO
- Page 1 CLEAN: DO NOT LET DEBRIS ENTER THE WATER METER(S) OR VALVE(S). STORAGE: KEEP IN A DRY PLACE PRIOR TO INSTALLATION TO AVOID POSSIBLE DAMAGE TO INTERNAL COMPONENTS. Dedicated technical helpline: 01226 397987 © 2022 Waterguard Services Limited, All Rights Reserved Waterguard Solo Installation Guide...
- Page 2 The Waterguard Solo has one level of guard (maximum time of continuous flow) which is usually set by the installer, landlord or concierge with the controls often located in riser cupboards or basements.
- Page 3 Male Faston 6.3 x 0.8 mm – IP X0 Electric Connect 2 Unipolar Cables max 300 mm – IP 55 Electric Connect 3 Bipolar Cables max 5000 mm – IP 55 Dedicated technical helpline: 01226 397987 © 2022 Waterguard Services Limited, All Rights Reserved Waterguard Solo Installation Guide...
- Page 4 Ensure to fit the Solo indoors in a dry area with easy access. This controller is not suitable for external installation. It is recommended mains power is provided from an adjacent 3 amp un- switched fused spur. Do not connect mains power until all electrical connections are complete. Do not connect backup battery before mains power.
- Page 5 © 2022 Waterguard Services Limited, All Rights Reserved the warranties included within Waterguard Services Limited Standard Terms and Conditions of Sale is given with respect to the content of these marketing materials. In no case will Waterguard Solo Installation Guide Waterguard Services Limited be liable for any incidental, indirect or consequential damages arising from the sale, resale, use or misuse of the product.
