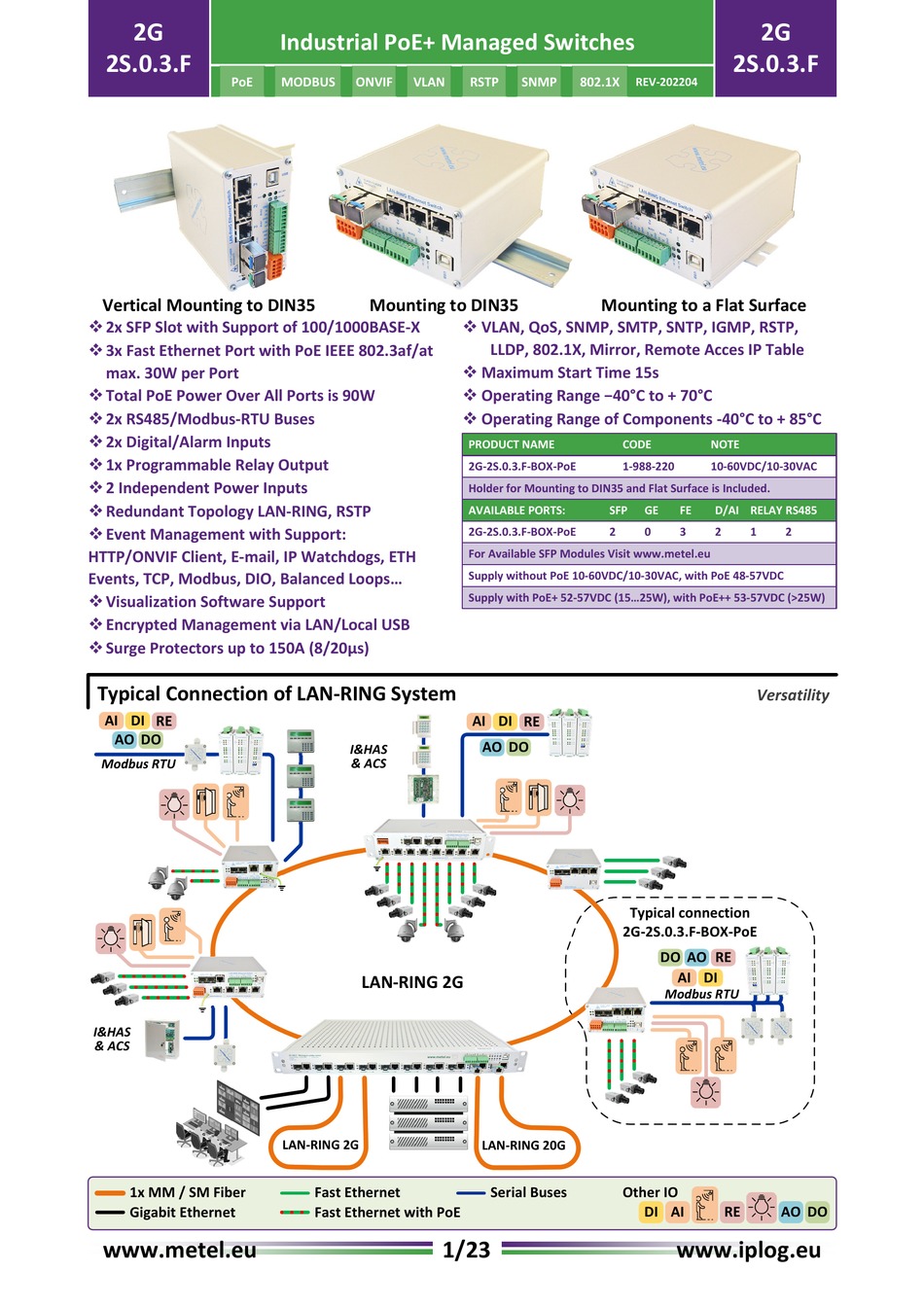

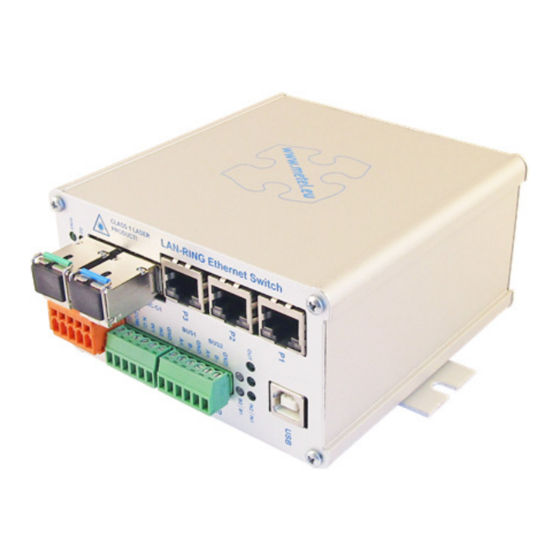

2G
2S.0.3.F
PoE
Vertical Mounting to DIN35
v 2x SFP Slot with Support of 100/1000BASE-X
v 3x Fast Ethernet Port with PoE IEEE 802.3af/at
max. 30W per Port
v Total PoE Power Over All Ports is 90W
v 2x RS485/Modbus-RTU Buses
v 2x Digital/Alarm Inputs
v 1x Programmable Relay Output
v 2 Independent Power Inputs
v Redundant Topology LAN-RING, RSTP
v Event Management with Support:
HTTP/ONVIF Client, E-mail, IP Watchdogs, ETH
Events, TCP, Modbus, DIO, Balanced Loops...
v Visualization Software Support
v Encrypted Management via LAN/Local USB
v Surge Protectors up to 150A (8/20µs)
Typical Connection of LAN-RING System
AI DI
RE
AO
DO
Modbus RTU
I&HAS
& ACS
1x MM / SM Fiber
Gigabit Ethernet
www.metel.eu
Industrial PoE+ Managed Switches
MODBUS
ONVIF
VLAN
Mounting to DIN35
I&HAS
& ACS
LAN-RING 2G
LAN-RING 2G
Fast Ethernet
Fast Ethernet with PoE
1/23
RSTP
SNMP
802.1X
REV-202204
Mounting to a Flat Surface
v VLAN, QoS, SNMP, SMTP, SNTP, IGMP, RSTP,
LLDP, 802.1X, Mirror, Remote Acces IP Table
v Maximum Start Time 15s
v Operating Range −40°C to + 70°C
v Operating Range of Components -40°C to + 85°C
PRODUCT NAME
CODE
2G-2S.0.3.F-BOX-PoE
1-988-220
Holder for Mounting to DIN35 and Flat Surface is Included.
AVAILABLE PORTS:
SFP
2G-2S.0.3.F-BOX-PoE
2
For Available SFP Modules Visit www.metel.eu
Supply without PoE 10-60VDC/10-30VAC, with PoE 48-57VDC
Supply with PoE+ 52-57VDC (15...25W), with PoE++ 53-57VDC (>25W)
AI DI
RE
DO
AO
Typical connection
2G-2S.0.3.F-BOX-PoE
LAN-RING 20G
Serial Buses
Other IO
2G
2S.0.3.F
NOTE
10-60VDC/10-30VAC
GE
FE
D/AI RELAY RS485
0
3
2
1
2
Versatility
DO AO
RE
AI DI
Modbus RTU
DI
AI
RE
AO
DO
www.iplog.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metel 2G 2S.0.3.F
Summary of Contents for Metel 2G 2S.0.3.F
- Page 1 Event Management with Support: 2G-2S.0.3.F-BOX-PoE HTTP/ONVIF Client, E-mail, IP Watchdogs, ETH For Available SFP Modules Visit www.metel.eu Supply without PoE 10-60VDC/10-30VAC, with PoE 48-57VDC Events, TCP, Modbus, DIO, Balanced Loops… Supply with PoE+ 52-57VDC (15…25W), with PoE++ 53-57VDC (>25W)
- Page 2 Switches 2G-2S.0.3.F have 2 SFP slots universally usable BX-100-20-W4-L 4-101-020 SC / PC 20 / 5 km both for SFP modules METEL (tab on the right) and for SFP BX-100-20-W5-L 4-101-010 SC / PC 20 / 5 km modules of other manufacturers. The main advantages of...
- Page 3 4kV, BUS, GE and DI Level 3 (2kV) EN 61000-4-8 – Magnetic Field 50 Hz Level 5 – Criteria A 100A EN 61000-4-9 – Pulse Magnetic Field Level 5 – Criteria A 1000A EN 55022 – Radiated Emission Class A www.metel.eu 3/23 www.iplog.eu...
- Page 4 VLAN RSTP SNMP 802.1X REV-202204 Dimensions of 2G-2S.0.3.F universality REV: 201406 – Default 201504 – Added Installation GBIC Modules 201904 – Design change, added 802.1X protocol, galvanically separated cover from the electronics 202204 – Change PoE circuit www.metel.eu 4/23 www.iplog.eu...
- Page 5 200M-2.1.0.E 2G-2.0.4.ECA 2G-6S.1.16.F-UNIT/1U, miniLAN-232 IPSEN-H2O 200M-2.1.4 2G-2.0.4.ECB 2G-10S.F-UNIT/1U miniLAN-485 IPSEN-T1 200M-RS.E4 2G-2.1.0 2G-2S.0.3.F-BOX-PoE IPLOG-DELTA-1 IPSEN-TH1 200M-RS.E5 2G-2.1.0.E 2G-2S.0.3.F-BOX PoE(M-PoE) IPLOG-DELTA-2 IPSEN-BL8I 200M-EVA 2G-2.1.0.EBT 2G-2S.0.3.FC-BOX IPLOG-DELTA-3 IPSEN-BL8O 200M-EVA8 2G-2.1.4 2G-2S.3.0.F-BOX IPLOG-DELTA-1-Geuteb. 200M-ADAM 2G-RS.E4 2G-2S.0.2.F-BOX-PoE IPLOG-DELTA-1-Eza 200M-ADAM8 2G-RS.E5 IPLOG-DELTA-1-Redwall www.metel.eu 5/23 www.iplog.eu...
- Page 6 RSTP according to IEEE 802.1D-2004 v supports MESH topology v reduces reconfiguration times to a minimum RP – root port DP – designated port BP – blocked port www.metel.eu 6/23 www.iplog.eu...
-
Page 7: Event Management - Overview
PLC IPLOG Control Program Automatic Actions LAN-RING Switch Loading Set the of the Switch Input Outputs Processing the Loading set Action of PLC Nastavení Inputs výstupu Set the Switch Output Loading of Settings of External Inputs External Outputs www.metel.eu 7/23 www.iplog.eu... - Page 8 Label - input naming (stored in the SIMULandv4 project) Negation - input negation Minimal pulse duration (s) - minimum input on/off length & The METEL-COMIO-DIO-MIB file, which also contains SNMP TRAP permissions, is available for monitoring SNMP inputs. www.metel.eu 8/23...
- Page 9 Examples of alarm loop balancing: Menu with alarm loop settings: ALARM TAMPER FAULT ALARM FAULT ANTIMASK. SABOTAGE & The METEL-COMIO-EZS-MIB file is available for monitoring alarm inputs via the SNMP protocol, which also contains SNMP TRAP permissions. www.metel.eu 9/23 www.iplog.eu...
- Page 10 Example: The state of the ring is transmitted to the relay output, which is connected to the signaling LED light. In case the ring is disconnected, the light is active. & A METEL-RING-MIB file is available for monitoring the status of SNMP rings, which also contains SNMP TRAP permissions.
- Page 11 Down/Normal - port off/on Example: The P2 port on the switch is controlled by ETH Event ID#15. & The METEL-SWITCH-MIB file is available for monitoring FE, GE, FO ports via the SNMP protocol, which also contains SNMP TRAP permissions. RS485 bus monitoring.
-
Page 12: Modbus Slave
Change - the event is triggered with each change in the value of the read register Example: The switch reads the register from slot 8 and, if logical 1 is read from the register, turns the camera 1 to position 11. MODBUS configuration (18 pages) Application notes: www.metel.eu 12/23 www.iplog.eu... -
Page 13: Master Configuration
SIMUland.v4 project, not in the device. Enable – Allows the use of a given line, connection. Slave index – Number, line index from the Slaves menu. Register remap - Number, line index from the Register remap menu. www.metel.eu 13/23 www.iplog.eu... - Page 14 Output state (checked = activated) - in combination with enable manual output the relay will be closed Pulse duration (s) - length of closing / opening in pulse mode & The METEL-COMIO-DIO-MIB file MIB is available for SNMP relay control. Camera Controls up to 8 Onvif cameras or HTTP commands.
- Page 15 24VAC, a restart can be done via a relay. Example: If the IP Watchdog 4 detects a disconnection, the switch relay closes for the set time. Example: Receiving a TCP pattern initiates a restart of the PoE power supply on P2. www.metel.eu 15/23 www.iplog.eu...
- Page 16 - interruption of communication in the Tx or Rx direction can be signaled by sending an SNMP trap. Trap sending is enabled in the "SNMP / BUS" menu separately for Rx / Tx direction and bus Application notes: RS485 transmission GALAXY system connection www.metel.eu 16/23 www.iplog.eu...
- Page 17 Another option for data processing from Modbus devices is PLC IPLOG. It can also execute a program written in FBD, LD, ST or IL languages according to IEC 61131-3 and visualize the values in the IFTER-EQU software. LEGEND: Visualization MODBUS-RTU Fiber Fast Ethernet RS485 Relay Outputs SNMPv3 LAN-RING MODBUS-TCP IPLOG MODBUS-RTU Main Program www.metel.eu 17/23 www.iplog.eu...
- Page 18 I&HAS system buses. Therefore, we verify compliance with the ČSN EN 50131-1 standard every 3 years in the TESTALARM testing laboratory. Currently valid certificates are available at www.metel.eu. Ensuring compatibility with the standard requires compliance with all precautions described on this page.
-
Page 19: Network Protocols
& We recommend using ZABBIX software (tested) or any other software that supports SNMP.v3 / v2c when monitoring METEL network devices. For integration into other programs, MIB files are available at www.metel.eu, which, in addition to the so-called public MIB files written in RFC documents, contain a number of PRIVATE MIB files for even more detailed monitoring and control of the system. - Page 20 We recommend using the IFTER EQU software to monitor and visualize the network infrastructure consisting of METEL switches or other manufacturers. It is an information system for visualization, integration and management of security systems, building automation systems and their control from control centers.
- Page 21 That means that e.g. for WDM of supply is indicated by LED PWR switching on. modules METEL can interconnect W4 with W5. We See page 22 for important information regarding can’t interconnect W4 with W4 or W5 with W5.
- Page 22 PC, GND and shielding are connected. Lightning Arrester (s) Therefore, connect the PC exclusively via the RE DI RS485 GDS-USB-AB galvanic separator. Unshielded USB-B manufactured from 2021/05 The PC can be connected directly, without the use of a separator. www.metel.eu 22/23 www.iplog.eu...
-
Page 23: Led Function Description
Inputs IN1 - IN2: IN1, IN2 DIGITAL MODE: ON = closed OFF = open ALARM MODE: flashing Relay output: OUT1 ON=relay activated (connected N.O. - COM) OFF=relay deactivated or the module is without power (connected N.C. - COM) www.metel.eu 23/23 www.iplog.eu...
