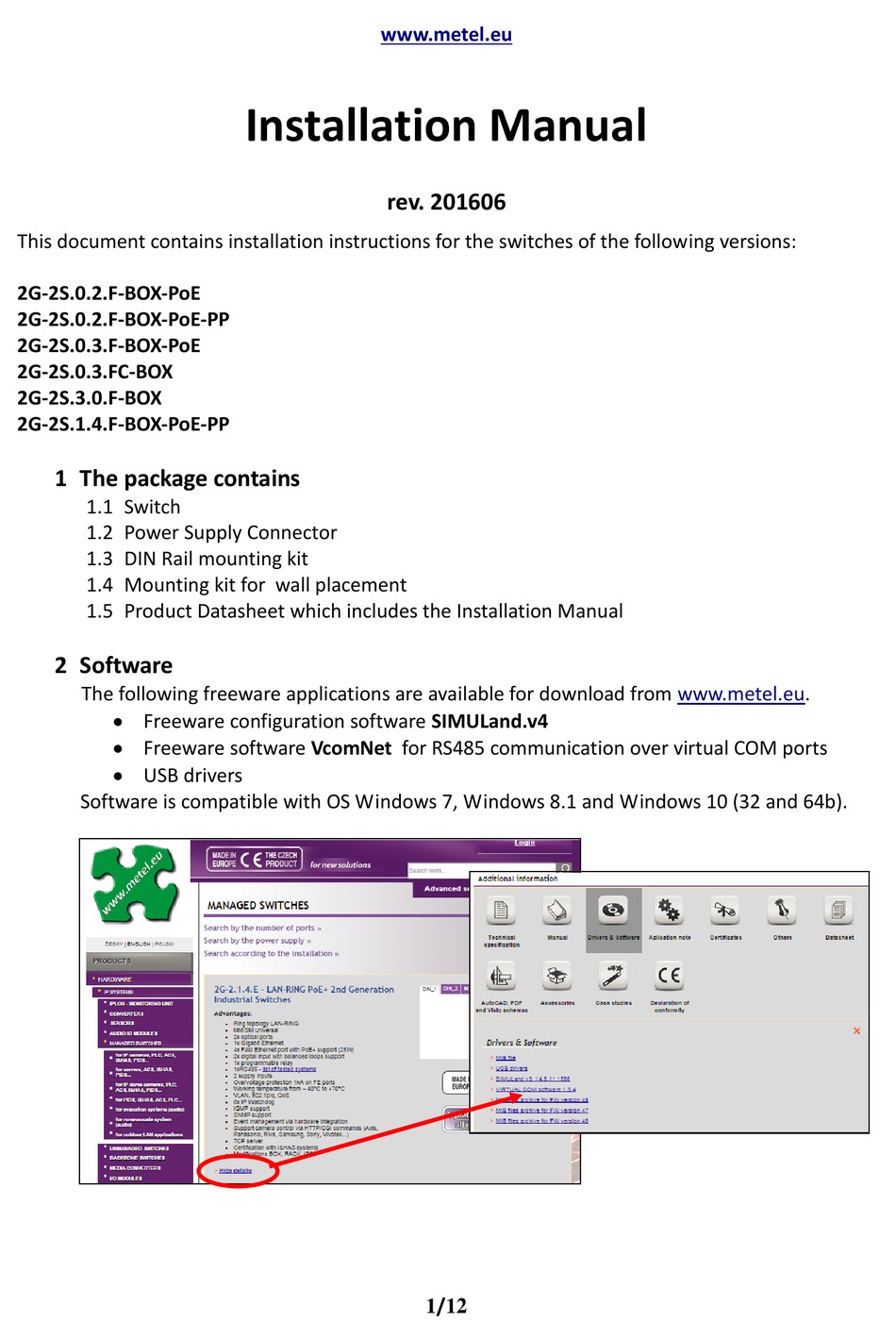

This document contains installation instructions for the switches of the following versions:
2G-2S.0.2.F-BOX-PoE
2G-2S.0.2.F-BOX-PoE-PP
2G-2S.0.3.F-BOX-PoE
2G-2S.0.3.FC-BOX
2G-2S.3.0.F-BOX
2G-2S.1.4.F-BOX-PoE-PP
1 The package contains
1.1 Switch
1.2 Power Supply Connector
1.3 DIN Rail mounting kit
1.4 Mounting kit for wall placement
1.5 Product Datasheet which includes the Installation Manual
2 Software
The following freeware applications are available for download from www.metel.eu.
Freeware configuration software SIMULand.v4
Freeware software VcomNet for RS485 communication over virtual COM ports
USB drivers
Software is compatible with OS Windows 7, Windows 8.1 and Windows 10 (32 and 64b).
www.metel.eu
Installation Manual
rev. 201606
1/12
Advertisement
Related Manuals for Metel M-MDR-40-48
Summary of Contents for Metel M-MDR-40-48
- Page 1 1.4 Mounting kit for wall placement 1.5 Product Datasheet which includes the Installation Manual 2 Software The following freeware applications are available for download from www.metel.eu. Freeware configuration software SIMULand.v4 Freeware software VcomNet for RS485 communication over virtual COM ports ...
-
Page 2: Mounting And Installation
4 Power Connection For non-PoE application it is recommended to use one of the following power supplies. Input voltage for the supplies is 230VAC ±5%. Type Maximal power Operational Output voltage temperature M-MDR-40-48 -20°C...+70°C 48-55VDC M-MDR-100-48 100W -10°C...+60°C 48-55VDC M-SDR-120-48 120W -25°C...+70°C... - Page 3 4.4 For PoE application it is recommended to use one of the following power supplies. Input voltage for the supplies are 230VAC ±5%. Type Maximal power Operational Output voltage temperature M-MDR-40-48 -20°C...+70°C 48-55VDC M-MDR-100-48 100W -10°C...+60°C 48-55VDC M-SDR-120-48 120W -25°C...+70°C...
- Page 4 5.6 Switches can be installed only in LPZ 0B zones (lightning conductor receiver protected outdoor areas), LPZ 1 and LPZ 2 acc. to EN 62305. 6 Fast Ethernet Port Connection 6.1 For interconnection use RJ45 connectors crimped to the cable UTP Cat5e.
- Page 5 Switch 3rd generation (with optical SFP slots) and with the FW54 and higher, support RSTP-M (M = Metel), which is 100% compatible with RSTP / STP. In networks with features that support RSTP-M the acceleration time of reconfiguration is tens to hundreds of milliseconds.
-
Page 6: Switch Configuration
10.1.2 Change the IP address if required. 10.1.3 Run application SIMULand.v4 (available on www.metel.eu) 10.1.4 Create the new project and open it. Click on the icon Search(LAN). Your computer must have a valid IP address which is in the range used by the switches (default: 10.xxx.xxx.xxx and mask 255.0.0.0). - Page 7 10.1.9 From the device list, select the switch which you want to configure and click "Configuration". TIP: You can also use double-click on a switch in the device list, which takes you directly to the device configuration. In the menu "IP" set the IP address, subnet mask and gateway.
- Page 8 10.2.5 Click on the “USB” icon. 10.2.6 Select the port assigned by the system and press the „Config“ button. Continue - see Remote Management (9.1.4). LAN-RING.v1 Configuration required for properly working Ring - before the optical Ring is closed! 11.1.1 For the proper functioning of the ring all switches must be connected to the ring...
- Page 9 All switches in the ring must be allowed the same protocol. LAN-RING.v1 and v2 protocol can not be used in one ring together. One of the switches connected to the ring must be set as master "Master". All switches in the ring must be set to the same "RING ID".
- Page 10 LAN-RING.v2 All switches in the ring must be allowed the same protocol. LAN-RING.v1 and v2 can not be used in a one ring protocol together. 12.1.1 For the proper functioning of the ring,all switches must be connected to the ring enabled LAN-RING.v2 protocol.
- Page 11 All switches in the ring must be set to the same "RING ID". 12.1.2 In applications with multiple optical rings,each ring (switches connected in a ring) must have a unique RING ID – Ring Identifier (see menu RING). RSTP 13.1.1 For the proper functioning of the RSTP enabled on the switches RSTP-M...
- Page 12 13.1.2 If necessary set detailed parameters of RSTP prototocol, go to the menu Topology/RSTP/Basic and Ports. 13.2 Setting of Indication of Optical Ring Failure or Sabotage In the case of a ring interruption in tin topology LAN-RING.v1 or v2 (failure or sabotage) the communication is redirected in 30ms.
