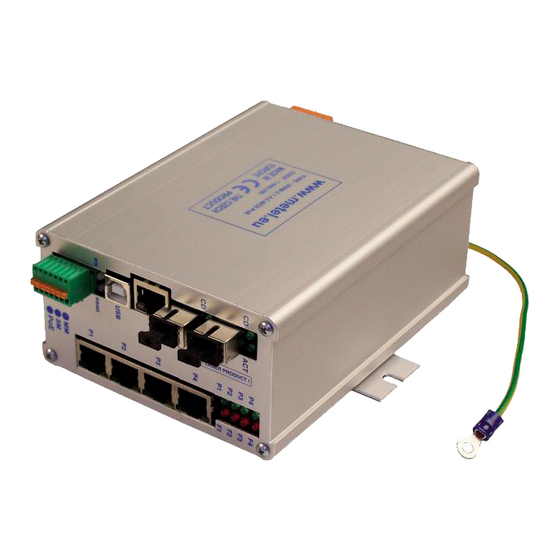

LAN-RING System PoE++ Managed Switches
BOX*
▪ Ring topology LAN-RING
▪ Overvoltage protection 1kA on FE ports
▪ 1x RS485 port with support of:
APOLLO, ASSET, ATS, CIAS, DOMINUS, GALAXY,
HUB-PRO, PERIDECT, ROGER, SATEL-ACCO,
SICURIT-ABSOLUTE, STATION-ONE, Modbus
▪ 2x digital input
▪ 1x programmable relay
▪ 2x MM/SM universal optical ports with WDM
▪ 1x Gigabit Ethernet
▪ 3x Fast Ethernet port with PoE support (15.4W)
▪ 1x Fast Ethernet port with PoE++ support (90W)
▪ 2 supply inputs
▪ IP Watchdog
2G-0.1.8.E
2G-2.1.4.E++
GE
2G-2.1.4.E++
2G-2.1.4.E++
EXP-C
6x IO
EXP-C
6x IO
www.metel.eu
2G(200M)-2.1.4.E PoE++
EXP-C
6x IO
2G-2.1.4.E++
LAN-RING 2Gbps
2G-2.0.1.E
EXP-C
EXP-C
1/10
BOX + DIN35-LOCK*
▪ SNMP, SMTP, SNTP, IGMP, UPNP support
▪ Support VLAN, 802.1p/q, QoS
▪ Support of logging to SD card
▪ Working temperature from – 40°C to +70°C
OBJEDNACÍ NÁZEV
KÓD
2G-2.1.4.E-BOX-PoE++
1-859-226
200M-2.1.4.E-BOX-PoE++
1-759-226
* holder DIN35-LOCK for mounting to DIN35 included
** supply with PoE 48-56VDC, without PoE 10-60VDC/10-30VAC
** supply with PoE+ 53-57VDC, without PoE 10-60VDC/10-30VAC
2G-0.1.4.E
2G-2.1.4.E++
2G-2.1.4.E++
6x IO
6x IO
NAPÁJENÍ
10-60VDC/10-30VAC**
10-60VDC/10-30VAC**
2G-2.1.4.E++
LEGEND
1x MM or SM fiber
Fast Ethernet
Gigabit Ethernet
others
Advertisement
Table of Contents
Related Manuals for Metel 2G-2.1.4.E-BOX-PoE++
Summary of Contents for Metel 2G-2.1.4.E-BOX-PoE++

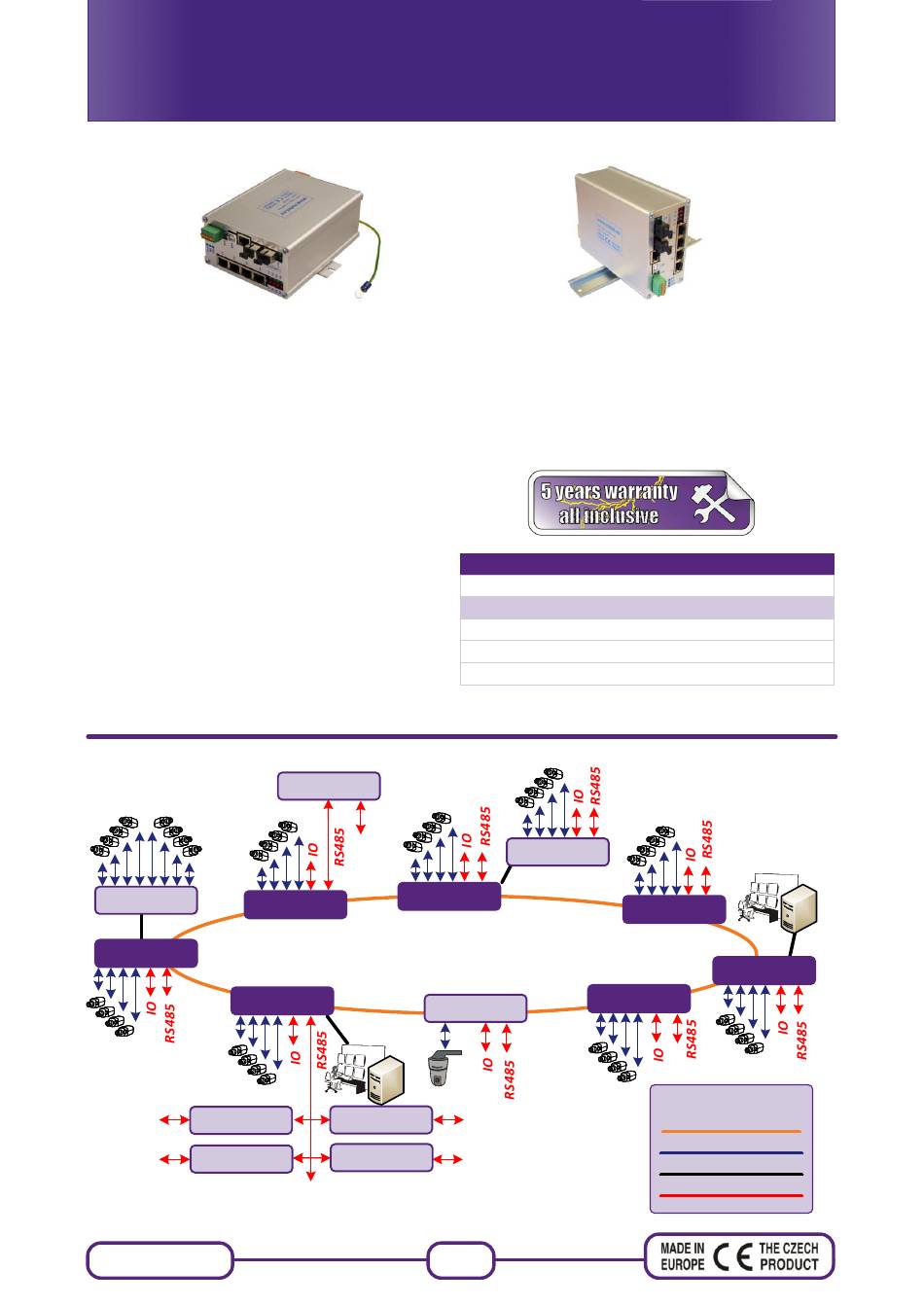

- Page 1 EXP-C 6x IO 2G-0.1.4.E 2G-2.1.4.E++ 2G-0.1.8.E 2G-2.1.4.E++ 2G-2.1.4.E++ LAN-RING 2Gbps 2G-2.1.4.E++ 2G-2.1.4.E++ 2G-2.1.4.E++ 2G-2.1.4.E++ 2G-2.0.1.E LEGEND EXP-C EXP-C 6x IO 6x IO 1x MM or SM fiber Fast Ethernet EXP-C EXP-C 6x IO 6x IO Gigabit Ethernet others www.metel.eu 1/10...
- Page 2 5-year ALL INCLUSIVE warranty For all LAN-RING system devices we provide 5-year ALL INCLUSIVE warranty including damage caused by excessive voltage (for detailed specification see “Warranty ALL INCLUSIVE” on our webpages www.metel.eu). Overvoltage protection 1kA on FE ports Overvoltage protections of LAN-RING switches guarantee reliable operation even in outdoor installations.
- Page 3 1x MM 50(62,5)/125 - SC conn. µm 2G/200M: max. 2/5 km between components Wavelengths PORT 6: Tx: 1310 / Rx: 1490(1550) (200M) PORT 7: Tx: 1490(1550) / Rx: 1310 (200M) Safety WARNING: converters contain laser sources of class 1 according to EN 60825-1-1 www.metel.eu 3/10...
-
Page 4: Technical Parameters
Max. 5 Protections Overvoltage / current 100A (8/20µs) Environment Operational range –40...+70 °C temp. of environment Storage range –40…+85 °C Humidity max. 95% non-condensing Certification TÜV The producer retains the right to change any technical parameters without previous announcement. www.metel.eu 4/10... -
Page 5: Installation And Setting
IN, OUT -digital inputs are activated by closing to GND or When use more optical ring you must set every optical by TTL level (0-0.3V „log 0“ and 2.7V-5V „log 1“). ring another „Ring ID“. TTL outputs can be mapped in switch management. Revision:201301 Revision:201301 - Default www.metel.eu 5/10... - Page 6 BUS – set the same receiving and transmitting address on all switches. topology POINT-to-POINT – set the addresses “crosswise”: Example: Device 1 receiving address - 239.192.168.2, transmitting address 1 - 239.192.168.3 Device 2 receiving address - 239.192.168.3, transmitting address 1 - 239.192.168.2 www.metel.eu 6/10...
-
Page 7: Tcp Mode
„Bus“ is needed. The switch sets it automatically. 2. In menu „Ethernet/TCP Port“ set numbers of TCP ports that will be used by a TCP client to establish communication. 3. Configure the TCP client in a PC with installed application (e.g. integration software). www.metel.eu 7/10... - Page 8 62,5VA (30W) / 1A / 60V (resistive load) current limiter (polytron) PoE+ DIGITAL INPUTS 2G-2.1.4.E activation by closing to GND or by TTL level „log. 0“ 0V-0.8V 2G-2.1.4.E 2G-2.1.4.E „log. 1“ 2V-5V overvoltage protection 30A (8/20us) PoE+ PoE+ www.metel.eu 8/10...
-
Page 9: Relay Out
62,5VA (30W) / 1A / 60V (resistive load) current limiter (polytron) PoE+ DIGITAL INPUTS activation by closing to 200M-2.1.4.E GND or by TTL level „log. 0“ 0V-0.8V „log. 1“ 2V-5V overvoltage protection 200M-2.1.4.E 200M-2.1.4.E 30A (8/20us) PoE+ PoE+ www.metel.eu 9/10... - Page 10 Installation manual REV:201301 2G(200M)-2.1.4.E PoE++ LAN-RING System PoE++ Managed Switches Size 2G a 200M-2.1.4.E PoE++ www.metel.eu 10/10...
