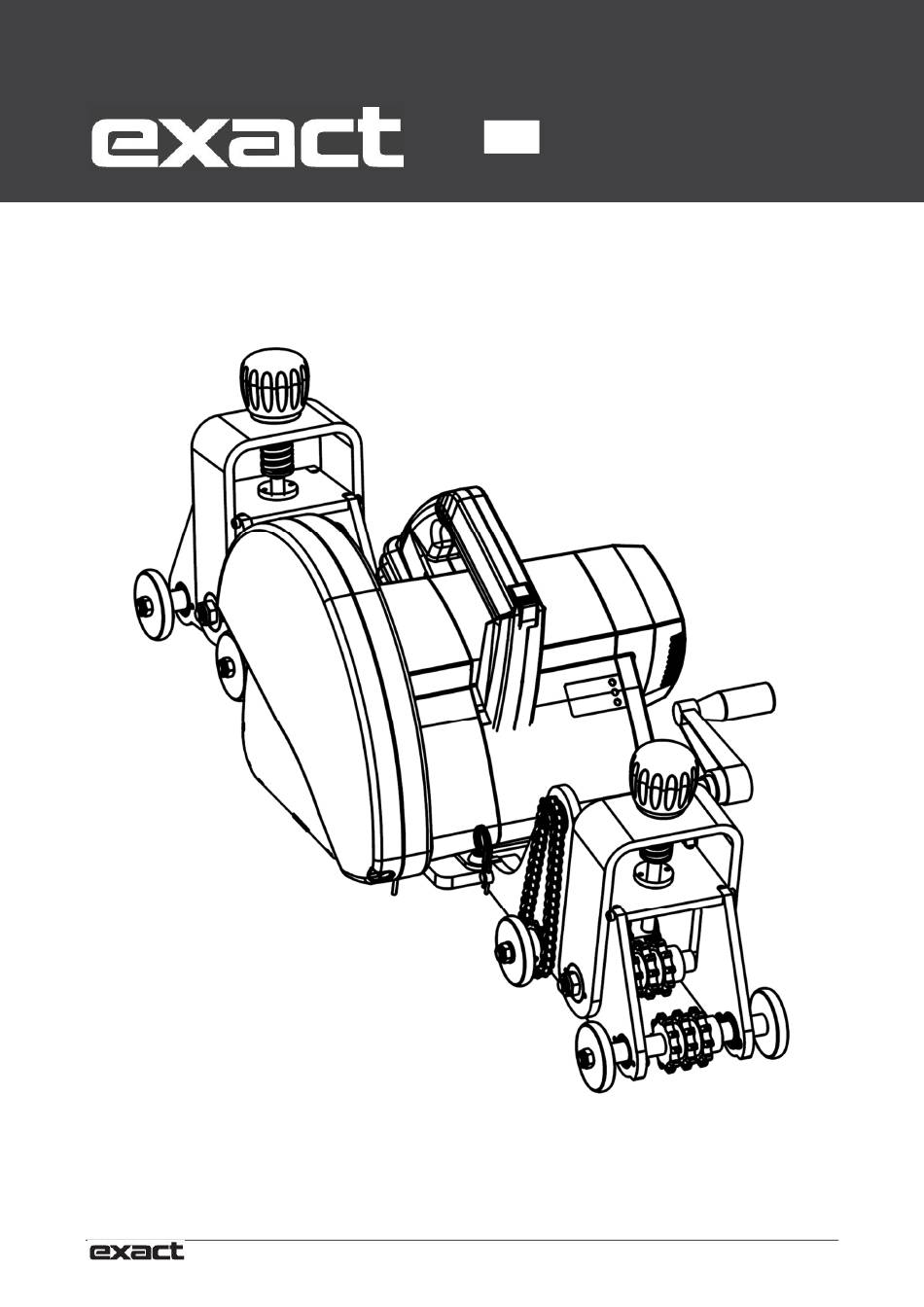

- Page 1 English Operating Instructions PipeCut Infinity These are the original instructions. All instructions are available on web-site: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
- Page 2 Intentionally left blank...
- Page 3 Ductile Iron only. Exact DIAMOND X discs cannot be sharpened. Declaration of Conformity We declare under our sole responsibility that the pipe cutting machines Exact PipeCut Infinity Described under” Technical Data” are in conformity with the following standards or standardization documents:...
- Page 4 English FIGURE A Unlocking switch Power switch Power switch locking lever (in front of the switch) Blade guard cover Overload indicator lights Moving blade-guard Motor unit adjusting screws Front tensioner with drive Rear tensioner 10 Handle 11 Blade guard screw 12 Blade lock pin 13 Rating plate 14 Motor unit...
-
Page 5: Table Of Contents
Piercing the pipe wall Cutting around the pipe Overload protection and RPM adjustment Explanation if indicator lights Error code display Cutting result adjustment on Exact PipeCut Infinity Using the cutting depth adjustment Installing and changing the blade Maintenance and servicing instructions... -
Page 6: Technical Data
Package contents, please check that the package contains the following items: Exact PipeCut System Shoulder Bags, 2pcs Exact PipeCut Infinity motor unit with blade installed Tensioner device Tensioner device with crank Attachment chain segments, for pipe outer diameter up to 1850mm:... -
Page 7: Safety
WARNING: NOTICE: Indicates a practice not related to If Pipecut Exact PipeCut Infinity tool is used with personal injury which, if not avoided, may result generator or extension cords, their minimum in property damage. - Page 8 Safety English dust mask, non-skid safety shoes, hard hat, or hearing General power tool safety warnings protection used for appropriate conditions will reduce personal injuries. WARNING: Read all safety warnings, c) Prevent unintentional starting. Ensure the switch illustrations and specifications provided with this is in the off-position before connecting to power power tool.
- Page 9 Safety English different from those intended could result in a Further safety instructions hazardous situation. Kickback causes and related warnings h) Keep handles and grasping surfaces dry, clean – kickback is a sudden reaction to a pinched, jammed and free from oil and grease. Slippery handles and or misaligned saw blade, causing an uncontrolled saw grasping surfaces do not allow for safe handling and to lift up and out of the workpiece toward the operator;...
-
Page 10: Product Features
PipeCut Infinity they must be serviced before use. The guard may operate sluggishly due to damaged parts, gummy PipeCut Infinity pipe saw is intended for use as a pipe deposits, or a build-up of debris. fitter’s tool at the job site. -
Page 11: Operation
Operation English Exact PipeCut Infinity pipe cutting system operation instructions FIGURE B Before operating the tool Ensure that motor unit is in the upright position. Check that the blade is correctly fitted, in good condition and suitable for the material to be cut. -
Page 12: Piercing The Pipe Wall
Operation English Piercing the pipe wall FIGURE D To start the motor, release the power-switch locking lever first (FIGURE D / 1) and push the power switch all the way in (FIGURE D / 2). The power switch can be locked to ON position by pushing the yellow trigger forwards before releasing the power switch (FIGURE D / 1). - Page 13 Operation English When the pipe is cut off, push the UNLOCK SWITCH FIGURE H forward until the yellow mark is visible and the locking is released (FIGURE H 1 / 2). Raise the motor unit to starting position (FIGURE I / 1). Release the power switch locking by pushing the power switch fully in and then releasing it.
-
Page 14: Overload Protection And Rpm Adjustment
Operation English RPM selector and Overload protector Error code display The saw has a two-speed blade RPM speed control If the electronic control unit senses a problem (FIGURE A / 15). When cutting stainless or acid- situation, it will give an error code indicating the proof steel use the lower RPM setting l. -
Page 15: Cutting Result Adjustment On Exact Pipecut
(FIGURE N / 2). CAUTION! The adjustment indicator located in the back of the adjustment plate does give the exact measurement to adjust. The indicator shows only the direction of adjustment and the category of magnitude. -
Page 16: Using The Cutting Depth Adjustment
Operation English Using the cutting depth adjustment (if equipped) Cutting depth of the blade can be adjusted for FIGURE O maximum blade performance. To reduce blade body drag and maximize blade life, it is recommended to adjust the cutting depth so that the teeth of the blade are just visible inside the pipe. -
Page 17: Installing And Changing The Blade
Operation English Installing and changing the saw blade Maintenance and servicing instructions Remove the power plug from the socket before WARNING: To reduce the risk of injury, turn the servicing or cleaning the pipe saw. All maintenance unit off and disconnect it from the power source before operations carried out on the pipe saw's electrical installing and removing accessories, before adjusting components must be carried out by an approved... -
Page 18: Environment / Disposal
Warranty interruption. The pipecut will overheat and metal parts Term, at our discretion we will repair the Exact PipeCut can become very hot. In this case, the motor, the Saw or supply an entirely new or factory reconditioned gearbox and the blade may become damaged. -
Page 19: Extra Equipment
Factors influencing blade lifespan: Blade suitability Pipe material Blade suitability for the pipe material Exact TCT: Suitable for cutting steel and all kinds of Correct motor speed setting plastic pipe material Pipe wall thickness Exact Cermet: Suitable for cutting stainless steel... -
Page 20: Theoretical Maximum Cutting Depths
Cutting depths English Maximum recommended pipe wall thicknesses of different materials, which can be cut by Exact Pipe Cut Infinity Pipe Cut Infinity Steel pipes Max.pipe wall thickness 20 mm (0,78") 230V / 0.5” (12mm) 120V Stainless steel pipes Max.pipe wall thickness 20 mm (0,78") 230V / 0.5” (12mm) 120V Cast or ductile iron pipes Max.pipe wall thickness 20 mm (0,78") 230V / 0.5”...
