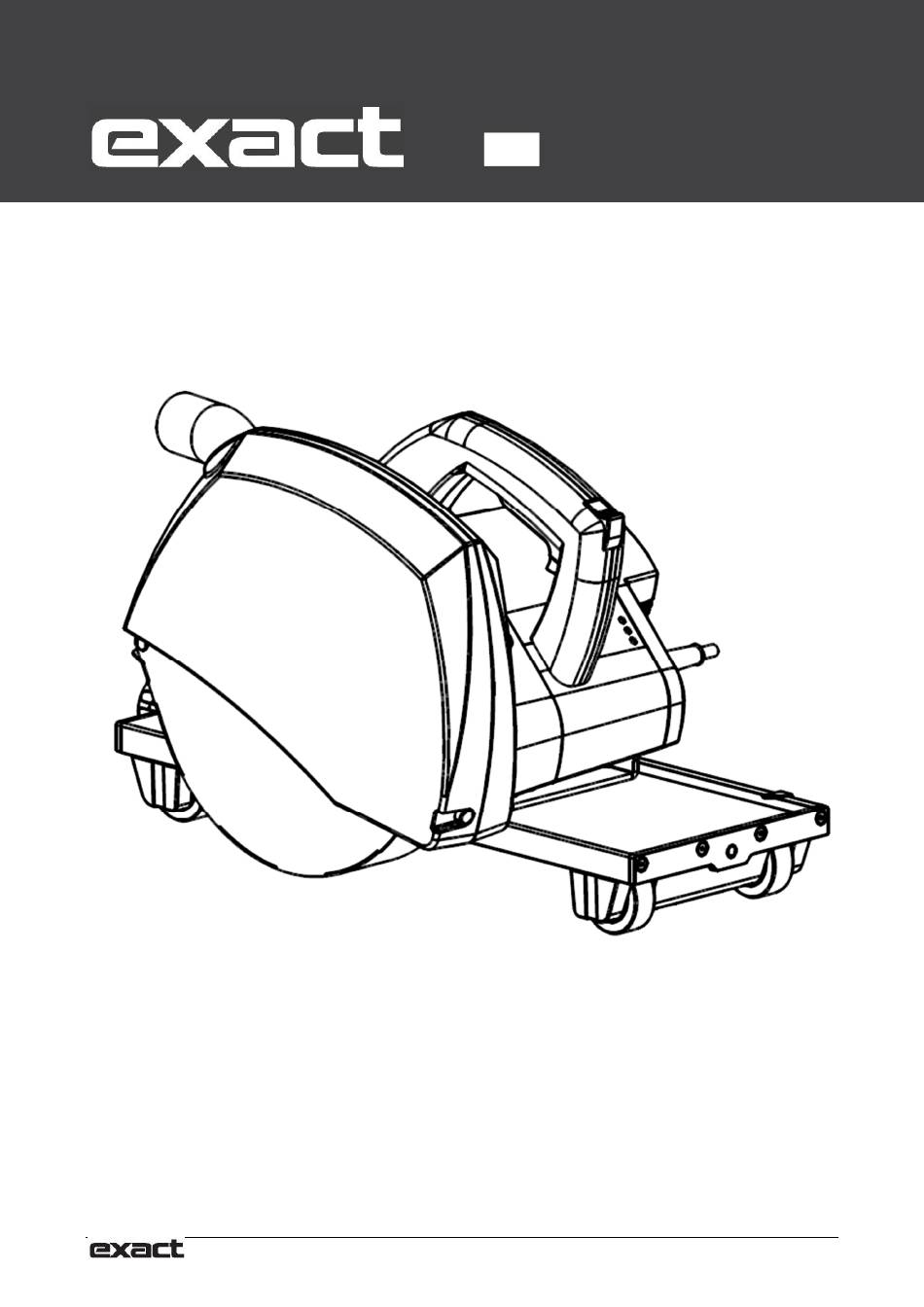

- Page 1 English Operating Instructions PipeCut P1000 These are the original instructions. All instructions are available on web-site: exacttools.com/manuals Patents: US 7,257,895, JP 4010941, EP 1301311, FI 108927, KR 10-0634113...
- Page 2 Intentionally left blank...
- Page 3 Ductile Iron only. Exact DIAMOND X discs cannot be sharpened. Declaration of Conformity We declare under our sole responsibility that the pipe cutting machines Exact PipeCut P1000 Described under” Technical Data” are in conformity with the following standards or standardization documents:...
- Page 4 English FIGURE A Unlocking switch Power switch Power switch locking lever (in front of the switch) Blade guard cover Overload indicator lights Moving blade-guard Motor unit locking screws (2pcs) Handle Blade guard screw 10 Blade lock pin 11 Rating plate 12 Motor unit 13 Blade RPM selector switch 14 Motor unit adjustment screw...
-
Page 5: Table Of Contents
Piercing the pipe wall Cutting around the pipe Overload protection and RPM adjustment Explanation if indicator lights Improving possible misalignment of the cut Cutting result adjustment on Exact PipeCut P1000 Vacuum cleaner duct Installing and changing the blade Maintenance and servicing instructions... -
Page 6: Technical Data
Package contents, please check that the package contains the following items: Exact PipeCut System Shoulder Bag Exact PipeCut P1000 pipe saw with blade installed Pipe Cutting supports, 1 pc double, 2 pcs single Safety strap Operating instructions... -
Page 7: Safety
Saw blade: Saw blade behind this cover, do not insert WARNING: fingers or other body parts inside this cover. If Pipecut Exact PipeCut P1000 tool is used with Operating, safety and service generator or extension cords, their minimum requirements are as follows:... - Page 8 Safety English dust mask, non-skid safety shoes, hard hat, or hearing General power tool safety warnings protection used for appropriate conditions will reduce personal injuries. WARNING: Read all safety warnings, c) Prevent unintentional starting. Ensure the switch illustrations and specifications provided with this is in the off-position before connecting to power power tool.
- Page 9 Safety English different from those intended could result in a Further safety instructions hazardous situation. h) Keep handles and grasping surfaces dry, clean Kickback causes and related warnings and free from oil and grease. Slippery handles and – kickback is a sudden reaction to a pinched, jammed grasping surfaces do not allow for safe handling and or misaligned saw blade, causing an uncontrolled saw control of the tool in unexpected situations.
-
Page 10: Product Features
"compound cuts". Raise the lower guard by the retracting handle and as soon as the blade enters PipeCut P1000 pipe saw is intended for use as a pipe the material, the lower guard must be released. For fitter’s tool at the job site. -
Page 11: Operation
Operation English Exact PipeCut P1000 pipe cutting system operation instructions Before operating the tool FIGURE B1 Ensure that motor unit is in the upright position. Check that the blade is correctly fitted, in good condition and suitable for the material to be cut. -
Page 12: Piercing The Pipe Wall
Operation English Piercing the pipe wall FIGURE D Hold the pipe saw operating handle firmly with your right hand and place your left foot on top of the pipe approximately 50 cm from the pipe saw. For bigger pipes, hold the pipe in place with your left hand. To start the motor, release the power-switch locking lever first (FIGURE D/1) and push the power switch all the way in (FIGURE D/2). - Page 13 Operation English FIGURE H Prevent the pipe from turning again and start a new feeding movement. Feed continuously forward for about 1/6 of the pipe's circumference (FIGURE H). Release the pipe and rotate the pipe back again. Repeat until the pipe is cut off. Select the feeding speed as per the material and the thickness of the wall.: - Too high speed can damage the blade, overload the...
-
Page 14: Overload Protection And Rpm Adjustment
Operation English RPM selector and Overload protector Error code display The saw has a two-speed blade RPM speed control If the electronic control unit senses a problem (FIGURE A / 13). When cutting stainless or acid- situation, it will give an error code indicating the proof steel use the lower RPM setting l. -
Page 15: Cutting Result Adjustment On Exact Pipecut
Operation English Cutting result adjustment on Exact PipeCut P1000 Adjusting the alignment of the blade FIGURE L CAUTION! Blade alignment adjustment is very effective and can lead to blade and/or saw damage if adjusted too much. Before making the adjustment, note the bodyplate alignment (FIGURE L / 1), in case it is needed to return back to the original setting. -
Page 16: Installing And Changing The Blade
Operation English Installing and changing the saw blade Maintenance and servicing instructions Remove the power plug from the socket before WARNING: To reduce the risk of injury, turn the servicing or cleaning the pipe saw. All maintenance unit off and disconnect it from the power source before operations carried out on the pipe saw's electrical installing and removing accessories, before adjusting components must be carried out by an approved... -
Page 17: Environment / Disposal
Warranty gearbox and the blade may become damaged. Term, at our discretion we will repair the Exact PipeCut When not cutting, keep the motor unit in the up Saw or supply an entirely new or factory reconditioned Exact PipeCut Saw at no charge. - Page 18 Intentionally left blank...
- Page 19 Intentionally left blank...
