Crosswater Patinato 66 Installation Instructions Manual

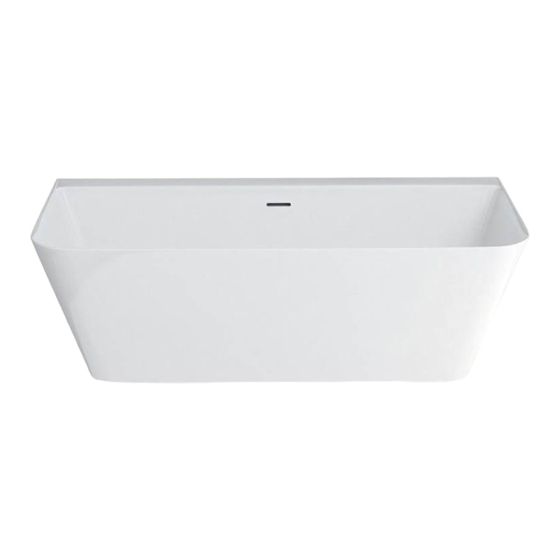

Patinato 66 Bathtub
Patinato Grande Bathtub
US-N3BCS
Installation Instructions
Introduction
This bathtub has been fully inspected throughout the production
process and only leaves our factory after a 15-step QC process.
Carefully remove the bathtub from the box, taking care the bathtub is
carried in the bag.
Before beginning installation of the bathtub please check for any
damage that may have occurred during transport. Note: Damage
claims cannot be made during or after installation.
Improper installation shall result in loss of warranty in case of damage
caused by impacts or rubbing against rough surfaces.
Prior to installing the bathtub prepare a connection of water inlet/
outlet. Pay attention to leveling of floor where the bathtub will be
located, ensuring it can take the weight of the bathtub, water and
bather(s). The customer may choose the type and location of the
faucets, installation instructions should be supplied by the faucet
manufacturer. The installation procedure of the bathtub may differ
from that described in the installation instructions, depending on
where you wish the bath tub to be located.
Wet surface of the bathtub may create a risk of slipping which may
increase by using soap, shampoo, oils and similar products.
IMPORTANT: Please read these instructions carefully before
begin and retain for future reference.
We do not accept responsibility for any problems that may occur
through incorrect installation.
RECOMMENDATIONS:
- Walls and floor should be fully tiled and finished before installation.
This ensures that the product is installed flat to the tile face and allows
the product to be easily removed
- Remove the protective packaging
- Only fill the bathtub with water up to 2/3 of its height.
- Use US-BTW0231 and ITD5135 waste flow products with this
bathtub.
Tools Required
Tape
measure
if required.
Installation of the bathtub.
Safety Set
glasses square
Installation Notes
The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
Store the bathtub in a safe place until you begin installation to avoid
any damage.
Assemble the bathtub on a mat to protect against damage to the bath
tub surface.
Avoid getting cement, grit, sand or masonry products on to the surface.
Protect and cover the bathtub during installation, other tradesmen
might damage the bath if no precautions are taken.
Never use brown tape or ga er tape directly on to the surface. If the
bath has to be repacked remember to avoid taping directly on to the
surface of the bath tub.
IMPORTANT: Turn off the main water supply before connecting to
any existing pipe work or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or oor.

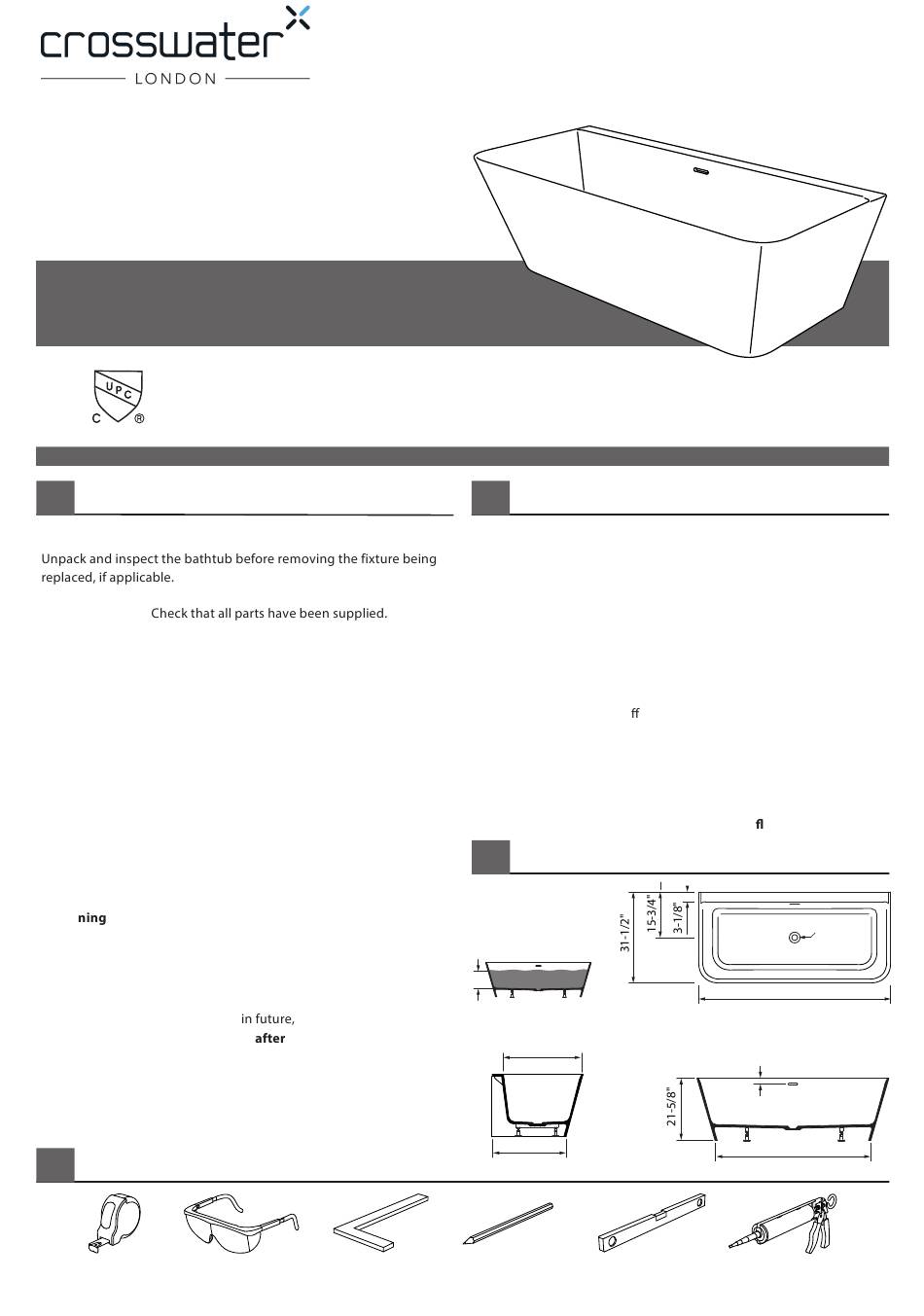

Dimensions

Weight - 201lbs
Weight with water - 659lbs
2/3 Height = 55 Gal./208L
27-1/4"
25-3/4"
Pencil Spirit
2" dia
66-3/8"
2-1/4"
53-7/8"
Silicone
level sealant
