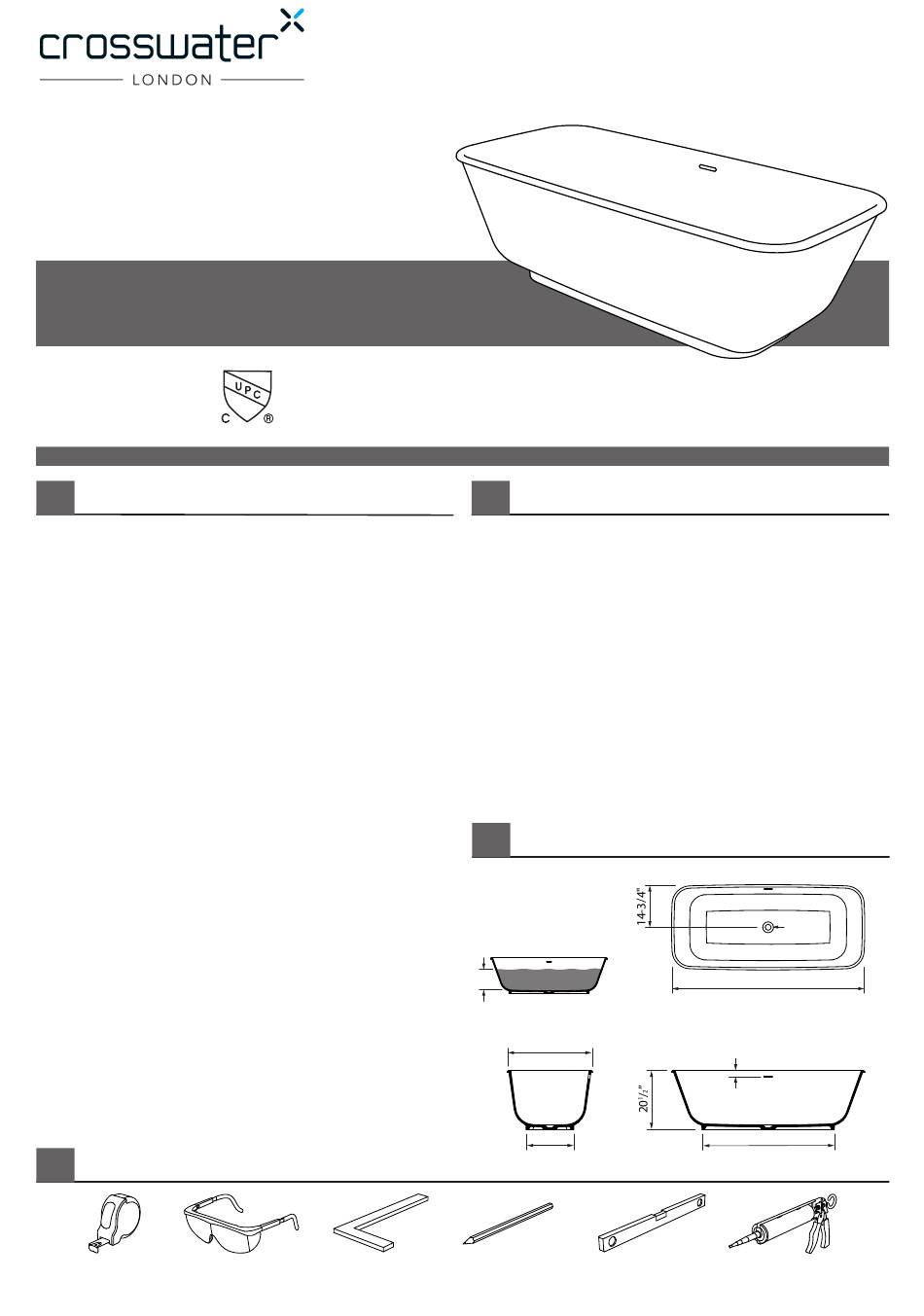

Crosswater Nuvola US-N22CS Installation Instructions

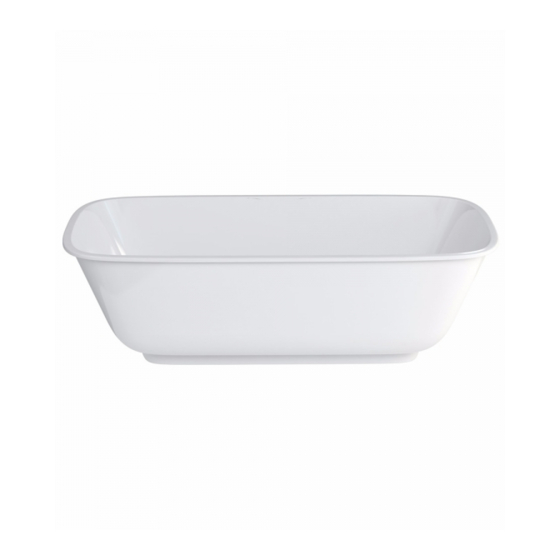

Nuvola Bathtub
US-N22CS
Installation Instructions

Introduction

This bathtub has been fully inspected throughout the production
process and only leaves our factory after a 15-step QC process.
Don't remove the old fixture before you unpack and inspect the new
bath tub.
Carefully remove the bathtub from the box, taking care the bathtub is
carried in the bag and check that all parts have been supplied.
Before beginning installation of the bathtub please check for any
damage that may have occurred during transport. Note: Damage
claims cannot be made during or after installation.
Improper installation shall result in loss of warranty in case of damage
caused by impacts or rubbing against rough surfaces.
Prior to installing the bathtub prepare a connection of water inlet/outlet.
Pay attention to leveling of floor where the bathtub will be located,
ensuring it can take the weight of the bathtub, water and bather(s).
The customer may choose the type and location of the faucets,
installation instructions should be supplied by the faucet manufacturer.
The installation procedure of the bathtub may differ from that
described in the installation instructions, depending on where you
wish the bathtub to be located.
Wet surface of the bathtub may create a risk of slipping which may
increase by using soap, shampoo, oils and similar products.
IMPORTANT: Please read these instructions carefully before you
begin and retain for future reference.
We do not accept responsibility for any problems that may occur
through incorrect installation.
RECOMMENDATIONS:
- Walls and floor should be fully tiled and finished before installation.
This ensures that the product is installed flat to the tile face and allows
the product to be easily removed if required in the future.
- Remove the protective packaging after installation of the bathtub.
- Only fill the bathtub with water up to 2/3 of its height.
- Use US-CW12 and ITD5135 waste flow products with this bathtub.

Tools required

Tape
measure
Safety Set
glasses square

Installation notes

The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
Store the bathtub in a safe place until you begin installation to avoid
any damage.
Assemble the bathtub on a mat to protect against damage to the bath
tub surface.
Avoid getting cement, grit, sand or masonry products on to the surface.
Protect and cover the bathtub during the installation period to
prevent damage from occurring.
Never use brown tape or gaffer tape directly on to the surface. If the
bath has to be repacked remember to avoid taping directly on to the
surface of the bathtub.
IMPORTANT: Turn off the main water supply before connecting to
any existing pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or floor.

Dimensions

Weight - 183lbs
Weight with water - 709lbs
2/3 Height = 63 Gal./239L
29-1/2"
16-1/2"
Pencil Spirit
level
2" dia
67"
2-1/4"
45-7/8"
Silicone
sealant
